16

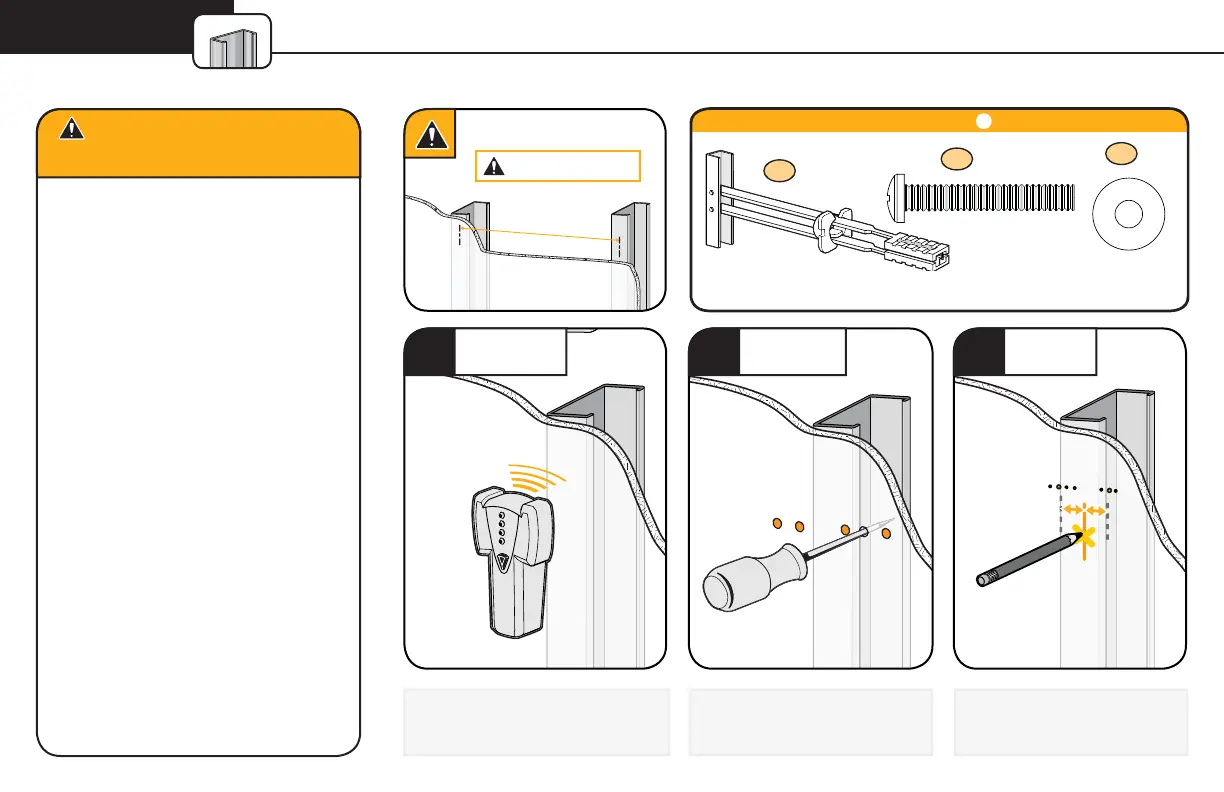

Steel Stud Installations (kit required)
Min. 16 in. (40.6 cm)
CAUTION: Avoid potential
personal injury or property damage!
STEP 2C
Locate the studs using a
stud finder.
Find the edges of the studs
using an awl or small drill bit.
Mark the centers of the
studs with a pencil.
1
LOCATE
2
VERIFY
3
MARK
● Studs must be at least 2x4 / 25 ga.
● If back side of wall is unfi nished,
drywall must be installed to a minimum
of one stud left and right of the stud(s)
being used to install the mount
● Drywall must be a minimum of
1/2 in. (1.2 cm) thick on each
side of the studs, and a minimum
clearance of 1 ⅞ in. (4.8 cm)
behind the wall is required
● This product must be centered on
the studs
● Stud type and structural strength
must conform to the North American
Specification for the Design of Cold-
Formed Steel Structural Members
[362 S 125 18, C-Shape, S - Stud Section]
● Drywall must be secured to studs with
screws 12 in. (30.4 mm) on center
Steel Stud Installation Kit (NOT INCLUDED)
1/4-20 x 1.75
x4
S1
x4
S2
x4
S3
1/4-20 SNAP Toggle BB
.734 x .312 x .065 in.
*
Contact Customer Service at 1-800-359-5520 to have the additional hardware shipped directly to you.
*
*
