13
Single Stud Installation Kit #VMTMK1 (NOT INCLUDED)
CAUTION: Avoid potential personal injuries and property damage!
● Drywall covering the wall must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm)
nominal 1½ x 3½ in. (38 x 89 mm)
● Stud center must be verified
● The middle two lag bolts MUST be installed into a wood stud
– this product was not designed to be used in drywall alone

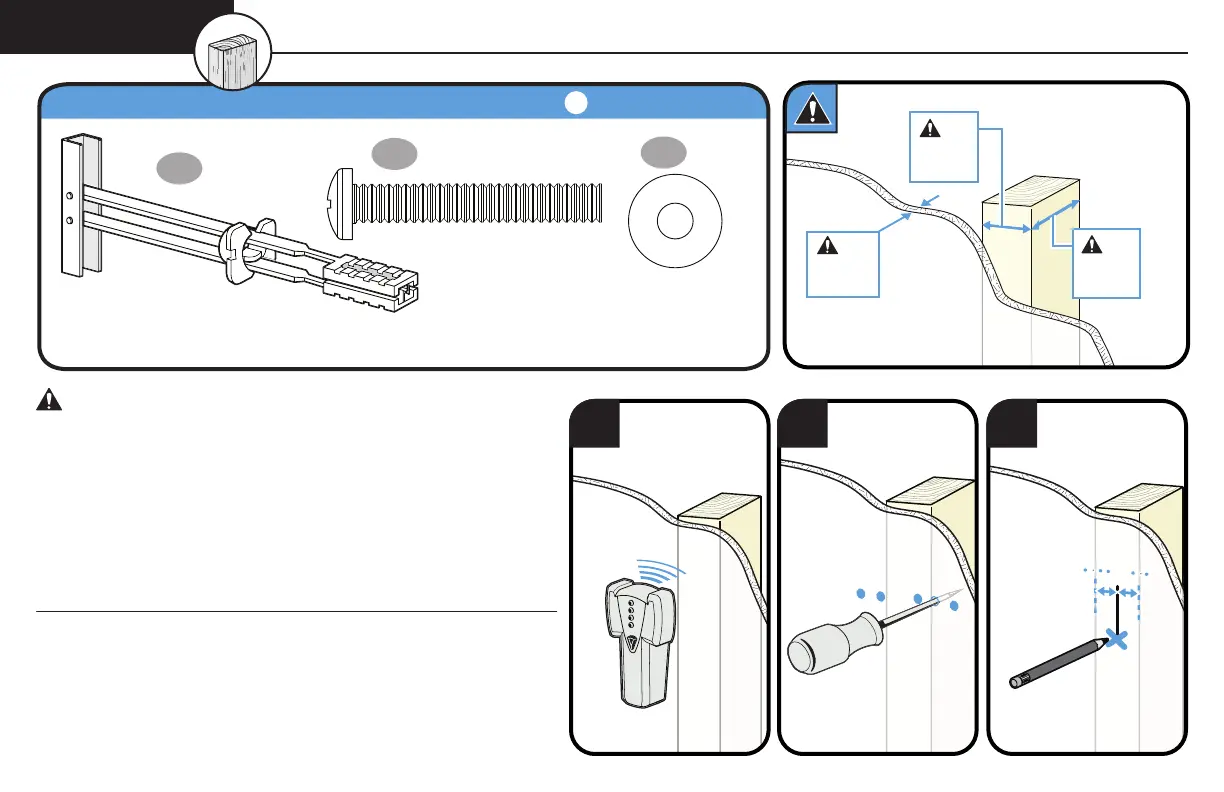

1. Locate the studs using a stud finder.
2. Find the edges of the studs using an awl or small drill bit.
3. Mark the centers of the studs with a pencil.
1/4-20 x 1 ¾ in.
1/4 in.
x2
V1
x2
V2
x2
V3
1/4-20 SNAP Toggle BB
.734 x .312 x .065 in.
*
Contact Customer Service at 1-800-359-5520 to have the additional hardware shipped directly to you.
Max.
5/8 in.
(16 mm)
Min.
1 1/2 in.
(38 mm)
Min.
3 1/2 in.
(89 mm)
STEP 2B
Wood Stud Option
(Single Stud Install)
*
1 2 3
To Next Page
