STEP 2B Attach Wall Plate to Wall
Solid Concrete or Concrete Block Option
CAUTION: Avoid potential personal injuries and property damage!
• Mount the wall plate
15
directly onto the concrete surface
• Minimum solid concrete thickness: 8 in. (203 mm)
• Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
• Minimum horizontal space between fasteners: 16 in. (406 mm)

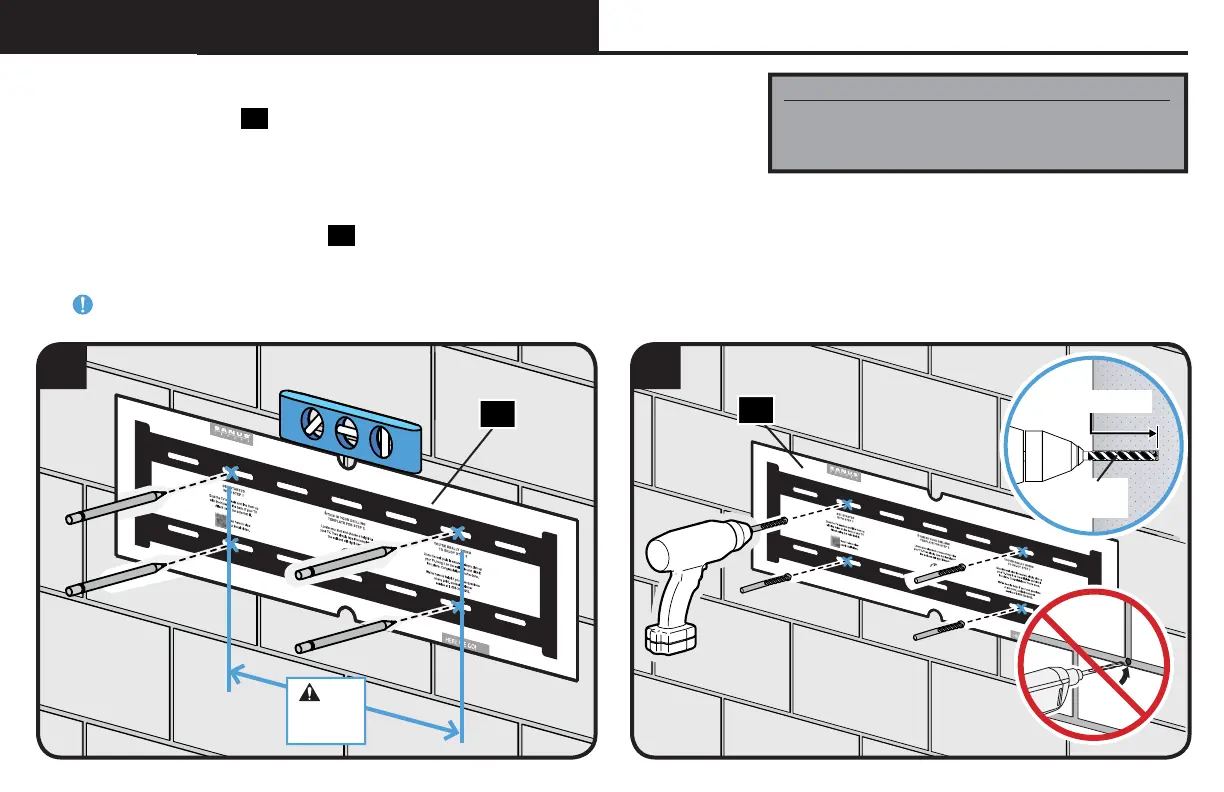

1. Position the wall plate template
14
on the wall at your desired height. Level the wall plate template and mark the hole locations.
2. Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
21
Concrete Installation Kit CMK1 is not included
(see page 5) Contact Customer Service
at 1-888-333-9952 to have the additional
hardware shipped directly to you.
Min.
16 in.
(406 mm)
14
14
3/8 in.
(10 mm)
3 in. (75 mm)
To Next Page
