Sanus FSF207 - Page 3

3
3.94in
100mm
7.87in
200mm
7.87in
200mm
.35in
8.8mm
.33in
8.4mm
2.56in
65mm
7.19in
182.6mm
1.14in
29.1mm
4.90in
124.5mm
8.80in
223.6mm
8.80in
223.6mm
10.26in
260.5mm
ESTIMATED 32" TV
30deg 30deg
4.27in
108.6mm
9.96in
252.9mm
7.59in
192.7mm
3.31in
84.1mm
TV INTERFACE
WALL PLATE

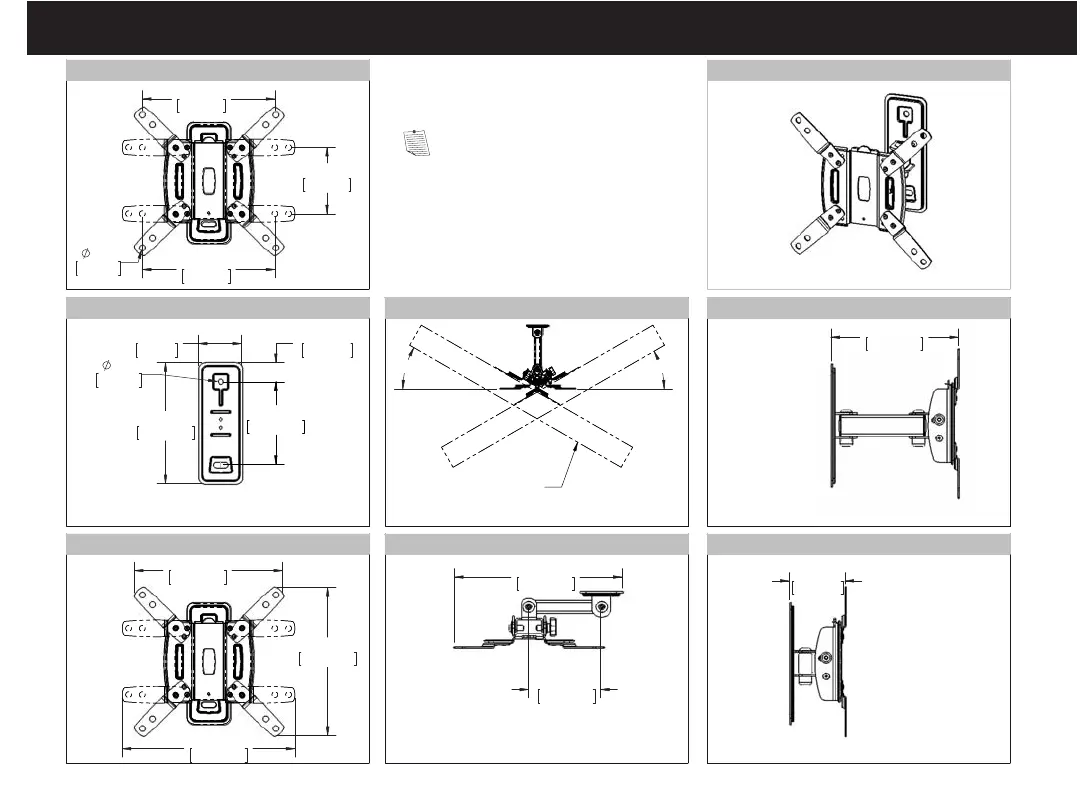

FULLY ASSEMBLED MOUNT
TOP VIEW - EXTENDED
TOP VIEW - RETRACTED
SIDE VIEW - EXTENDED
SIDE VIEW - RETRACTED
3-D
Dimensions
NOTE: TV shifts 4.27 in. (108.6 mm) to
the right or left when in the home position.
Consider this when selecting the location of
your wall mount.
