6901-172002 <01>
8

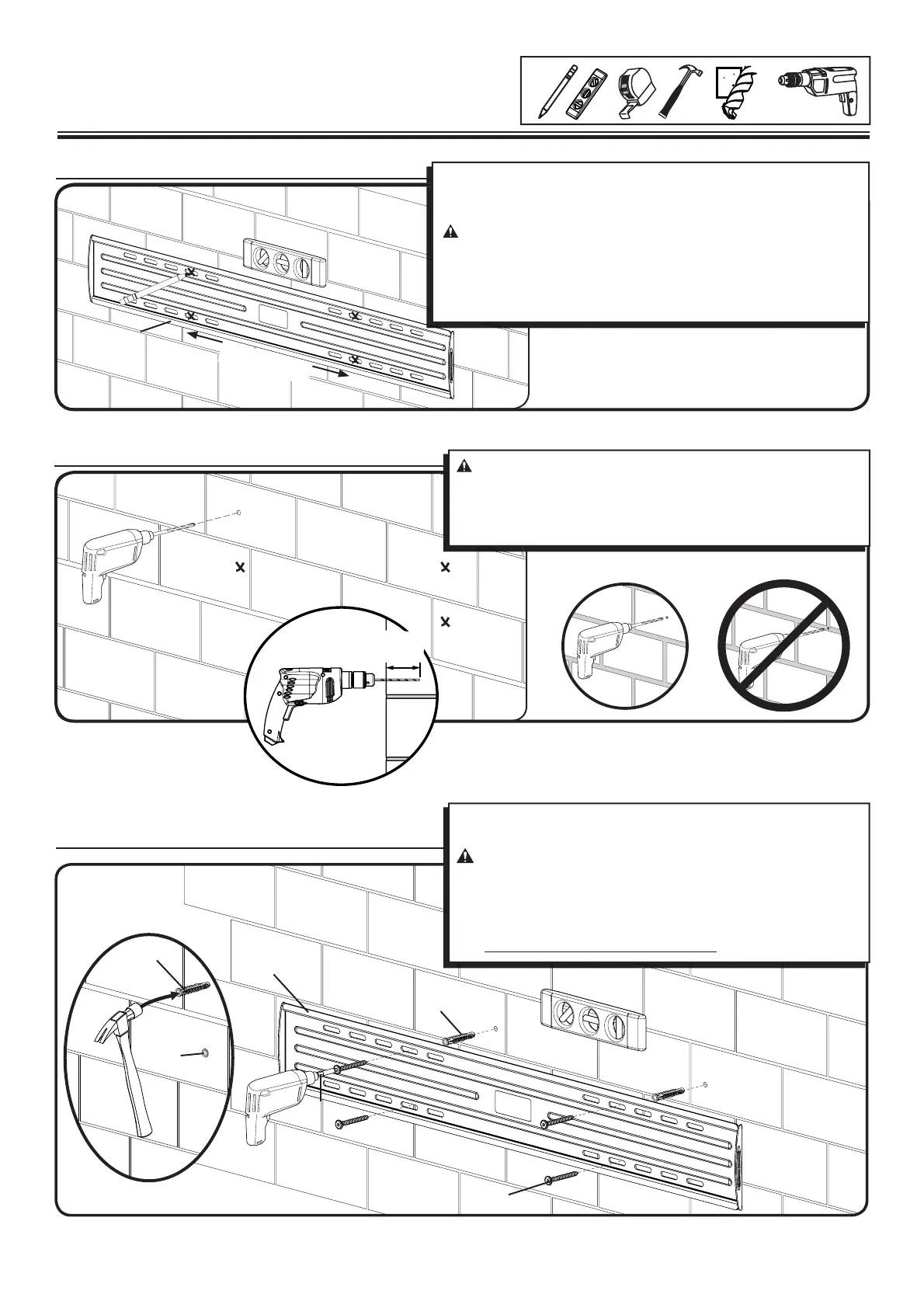

3-1 Mark the wall
[01]
[01]
[04]
[05]
[04]
[03]
3 Mount the Wall Plate
Solid Concrete or Concrete Block
For assistance in determining wall plate location, see Height Finder at
sanus.com.
Level the wall plate [01] and mark the hole locations.
CAUTION:
Avoid potential injuries or property damage!
Ù Mount the wall plate [01] directly onto the concrete surface.
Ù Minimum solid concrete thickness: 20.3 cm (8 in.).
Ù Minimum concrete block size: 20.3 x 20.3 x 40.6 cm (8 x 8 x 16 in.).
Ù Minimum space between fasteners: 40.6 cm (16 in.).
[04]
3-2 Drill pilot holes
3-3 Insert anchors and lag bolts
CAUTION:
Avoid potential injuries or property damage!
Ù Pilot holes MUST be drilled to a depth of 75 mm (3 in.) using a 10
mm (3/8 in.) diameter drill bit.
Ù Never drill into the mortar between blocks.
Insert lag bolt anchors [04]. Then insert lag bolts [03] using a drill and
the allen driver bit [05].
CAUTION:
Improper use could reduce the holding power of
the lag bolt. To avoid potential injuries or property damage:
Ù Be sure the anchors [04] seat ush with the concrete surface.
Ù Tighten the lag bolts [03] only until the they are pulled rmly
against the wall plate [01].
Ù DO NOT over-tighten the lag
bolts [03].
10 mm
(3/8 in.)
75 mm
(3 in.)
406 mm (16 in.)
