Sanus SA405 - STEP 3.1: Mounting on Flat TV Backs

20
STEP 3.1
Option 1
Option 2
*
WARNING: You must use
the larger washers
08
or
09
(unless they do not fi t your TV bracket).
WARNING: Soundbar MUST
NOT be mounted on TOP of your TV.
05
01
10 11 12 13 14
06 08 07 09
screws
M4 M5 M6 M6 M8
washers
*
*

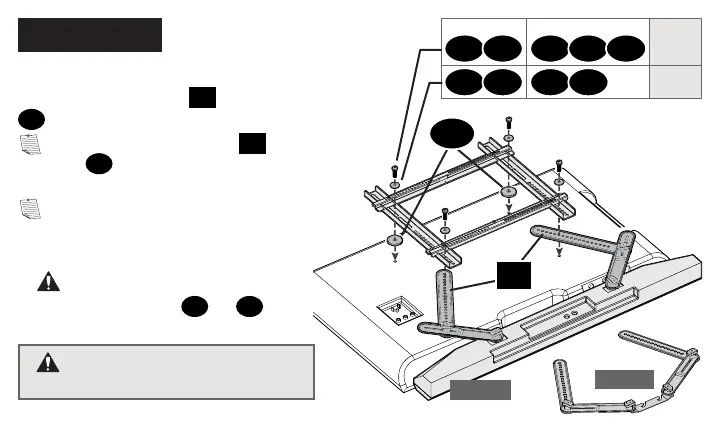

Install your TV mount’s interface bracket
with soundbar brackets
01
and washers
05
.
NOTE: Sound bar brackets
01
AND
washers
05
install BETWEEN your TV
and TV brackets.
NOTE: Extra screws and washers are
provided, if needed for better fi t
(TV screws are too short - or too long).
