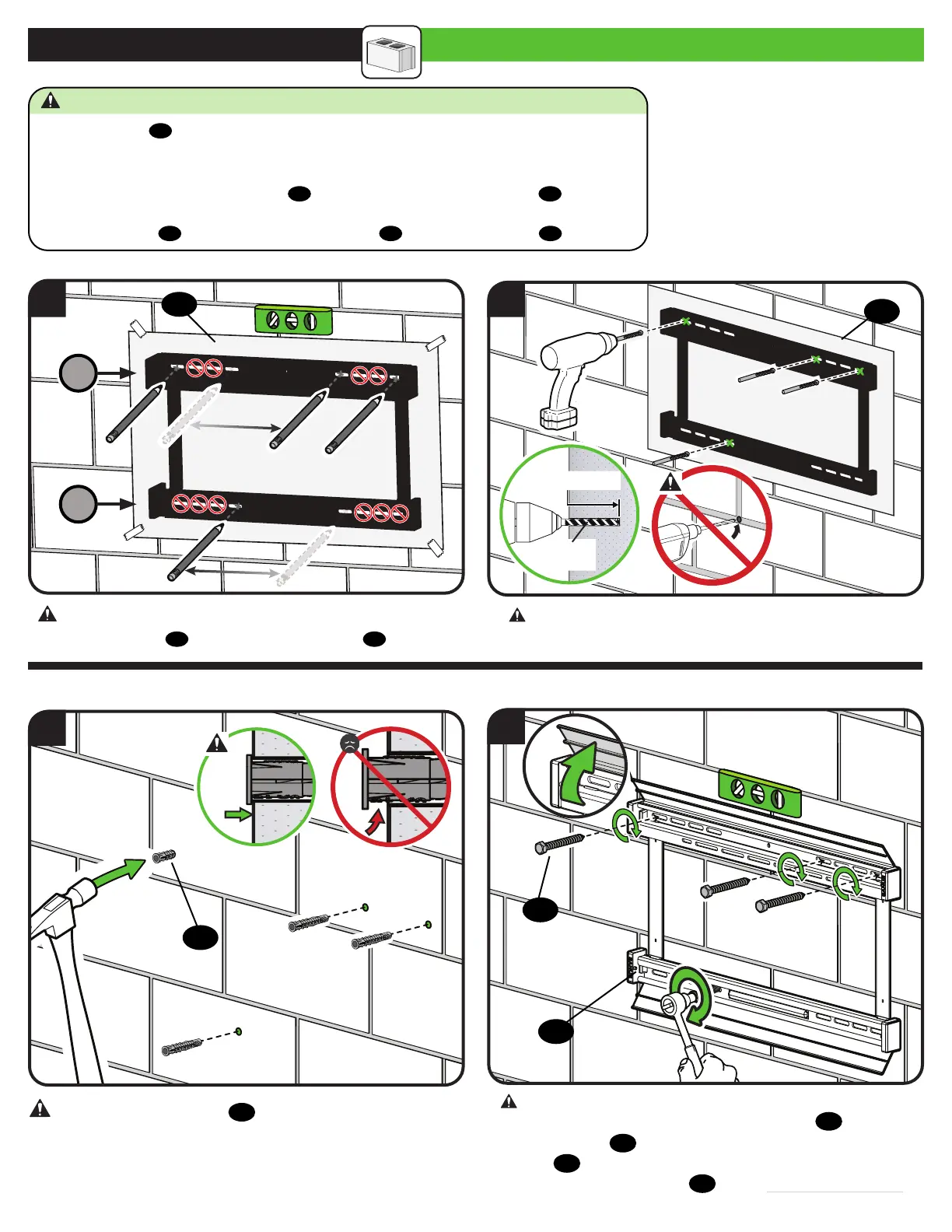

Sanus SLF428-B2 - Step 2 B: Attach Wall Plate - Concrete Installation; Solid Concrete or Block Installation

7
1 2
3/8 in.
(10 mm)
3 ¾ in. (9.5 cm)
002862.eps
07
07
CAUTION: Avoid potential personal injury or property damage!
● Mount wall plate
08
directly onto concrete surface (no wall covering)
● Minimum solid concrete thickness: 8 in. (203 mm)
● Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
● For concrete applications, arm assembly
11
(STEP 3) must remain centered in wall plate
08
.
Keep this in mind when selecting wall plate location
● Install lag bolts
09
in slots AS SHOWN. Three (3) lag bolts
09
on top. One (1) lag lag bolt
09
on bottom.
Solid Concrete or Concrete Block Installation
STEP 2B Attach Wall Plate
3
4
CAUTION: Be sure the anchors
10
are seated flush with the
concrete surface.
CAUTION: Never drill into the mortar between blocks.
08
CAUTION: Avoid potential personal injury or property damage!
Improper use could reduce the holding power of the lag bolt
09
.
Tighten the lag bolts
09
only until they are pulled FIRMLY against the
wall plate
08
.
DO NOT over-tighten the lag bolts
09
.
3x
1x
CAUTION: Avoid potential personal injury or property damage!
Install three (3) lag bolts
09
at the top and one (1) lag bolt
09
at the bottom.
09
10
