12
CAUTION: Avoid potential personal injuries and property damage!
● Drywall covering the wall must not exceed 16 mm (5/8 in.)
● Minimum wood stud size: common 51 x 102 mm (2 x 4 in.) nominal 38 x 89 mm (1 1/2 x 3 1/2 in.)
● Minimum horizontal space between fasteners: 406 mm (16 in.)

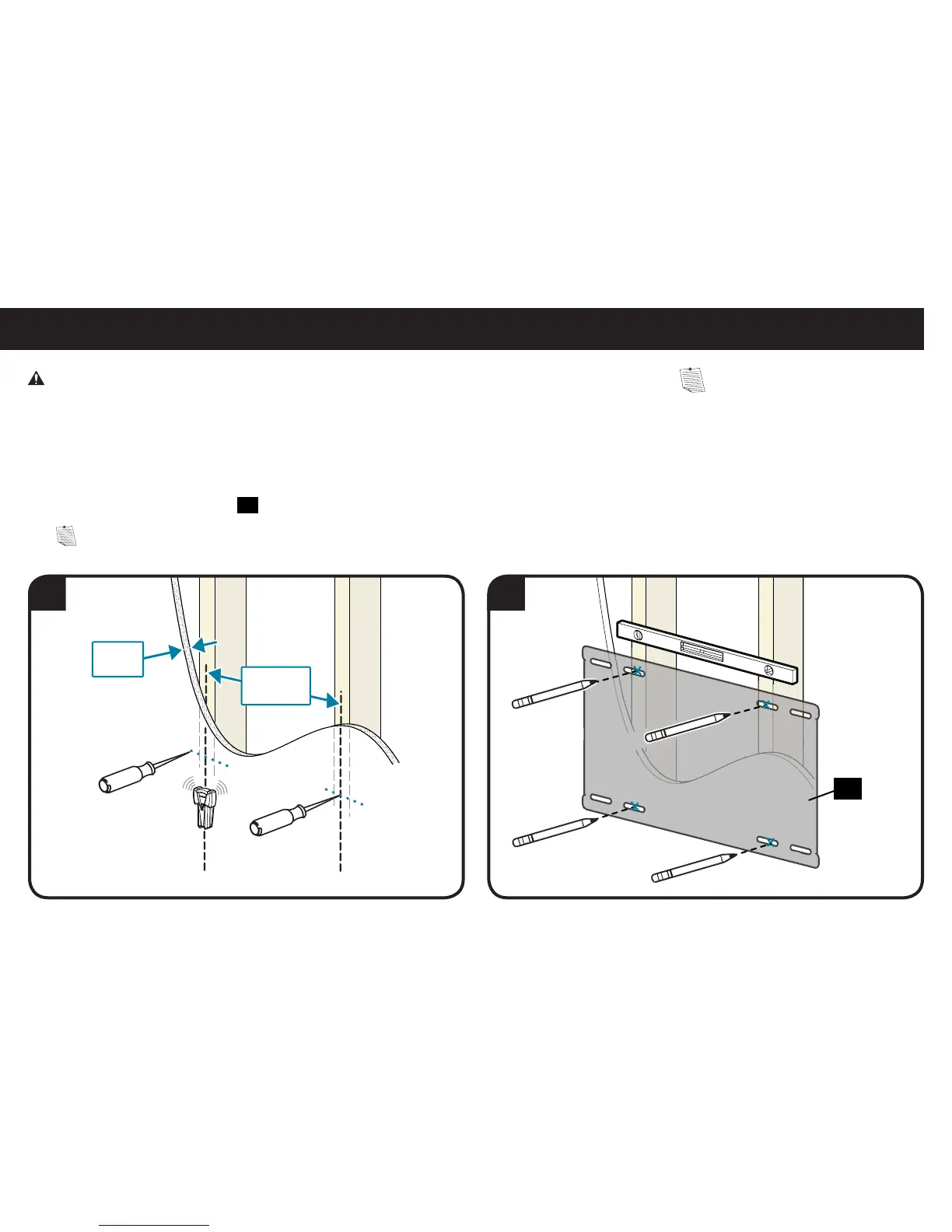

1. Locate studs. Verify the center of the stud(s) using an awl, a thin nail, or an edge to edge stud finder.
2. Level the wall plate template
15
and mark the hole locations in the center of the studs.
NOTE: TV shifts 254 mm (10 in.) to the right or left when in the home position. Consider this when selecting the location of your wall mount.
STEP 2 Attach Wall Plate - Wood Stud Option
NOTE: For assistance in
determining wall plate location,
try our MountWizard
™
at
Simplicity.Sanus.com
1
2
≤16 mm
(5/8 in.)
406-610 mm
(16-24 in.)
15
