3 4

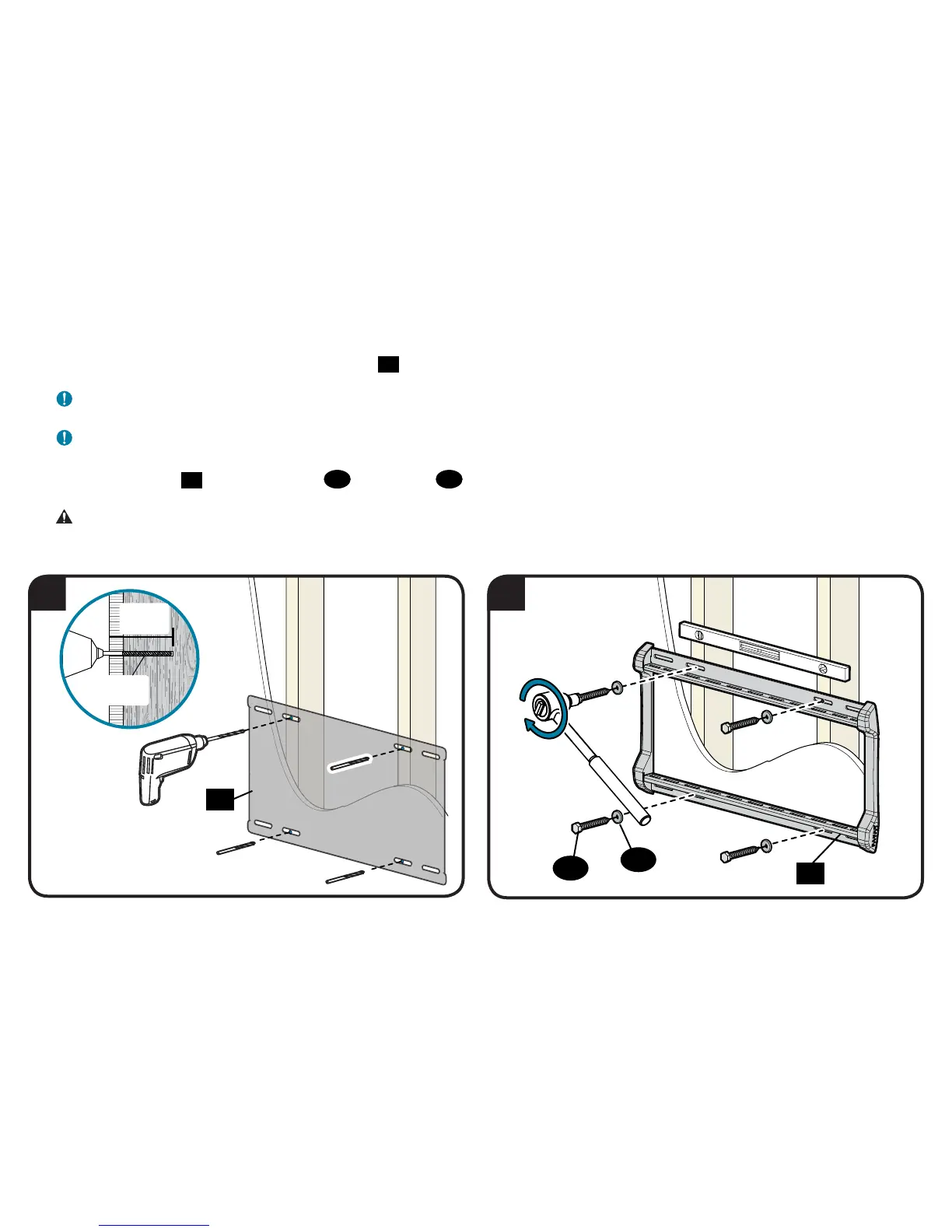

3. Drill pilot holes then remove the wall plate template
15
.
IMPORTANT: Be sure to drill into the center of the stud.
IMPORTANT: Pilot holes must be drilled to a depth of 75 mm (3 in.), using a 5.5 mm (7/32 in.) diameter drill bit.
4. Install the wall plate
16
using four lag bolts
17
and washers
19
. Tighten all lag bolts only until they are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.
75 mm
(3 in.)
5.5 mm
(7/32 in.)
16
19
15
