Sanus SLF5 - Solid Concrete or Concrete Block Option

14
1 2
STEP 2 Attach Wall Plate - Solid Concrete or Concrete Block Option
CAUTION: Avoid potential personal injuries and property damage!
● Mount the wall plate directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
● Minimum horizontal space between fasteners: 610 mm (24 in.)

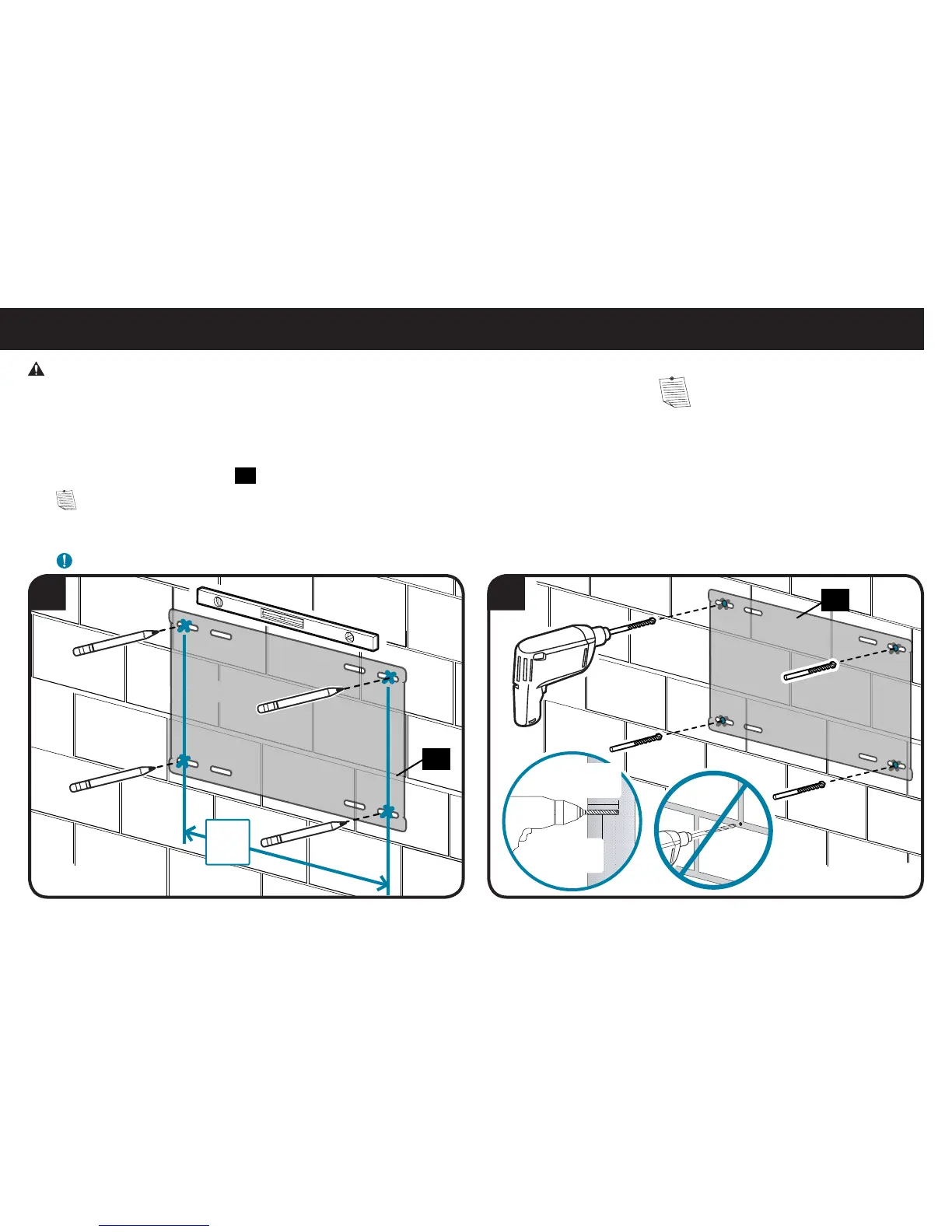

1. Level the wall plate template
15
and mark the hole locations.
NOTE: TV shifts 254 mm (10 in.) to the right or left when in the home position. Consider this when selecting the location of your wall mount.
2. Drill pilot holes into solid concrete. Never drill into the mortar between blocks.
IMPORTANT: Pilot holes must be drilled to a depth of 75 mm (3 in.), using a 10 mm (3/8 in.) diameter drill bit.
10 mm
(3/8 in.)
75 mm
(3 in.)
15
15
NOTE: For assistance in
determining wall plate location,
try our MountWizard
™
at
Simplicity.Sanus.com
610 mm
(24 in.)
