Position your TV bracket configuration (A, B, C, D, E or F) onto your TV, making sure the bracket is both centered and level over your TV hole pattern.
NOTE: The hanging tab
H
on TV bracket
01
must be oriented toward the top of the TV.
Secure the TV bracket using your selection: (a) screw/washer or (b) screw/washer/spacer.
CAUTION: Avoid potential personal injuries and property damage!
DO NOT use a power screwdriver for this step.
IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.

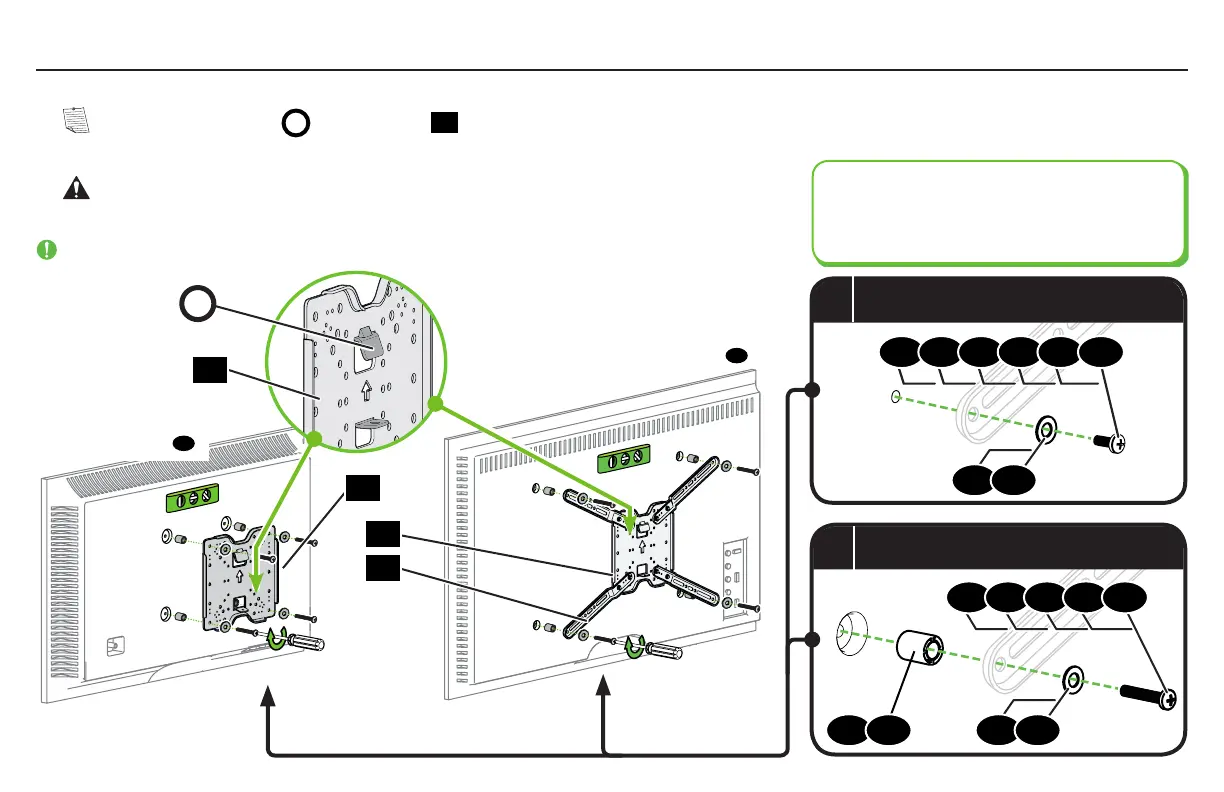

1.5 Attach TV Bracket
TV Bracket Configuration A
Illustrated (with spacers
18
)
TV Bracket Configuration D
Illustrated (with spacers
18
)
H
a
Flat Back
b
Round Back / Extra Space
01
02
01
01
Standard configurations are shown.
For special applications, or if you are uncertain
about your hardware selection, contact
Customer Service at 1-888-333-1376.
