9
M4
M6
M8
FLAT BACK ROUND BACK INSET HOLES CABLES

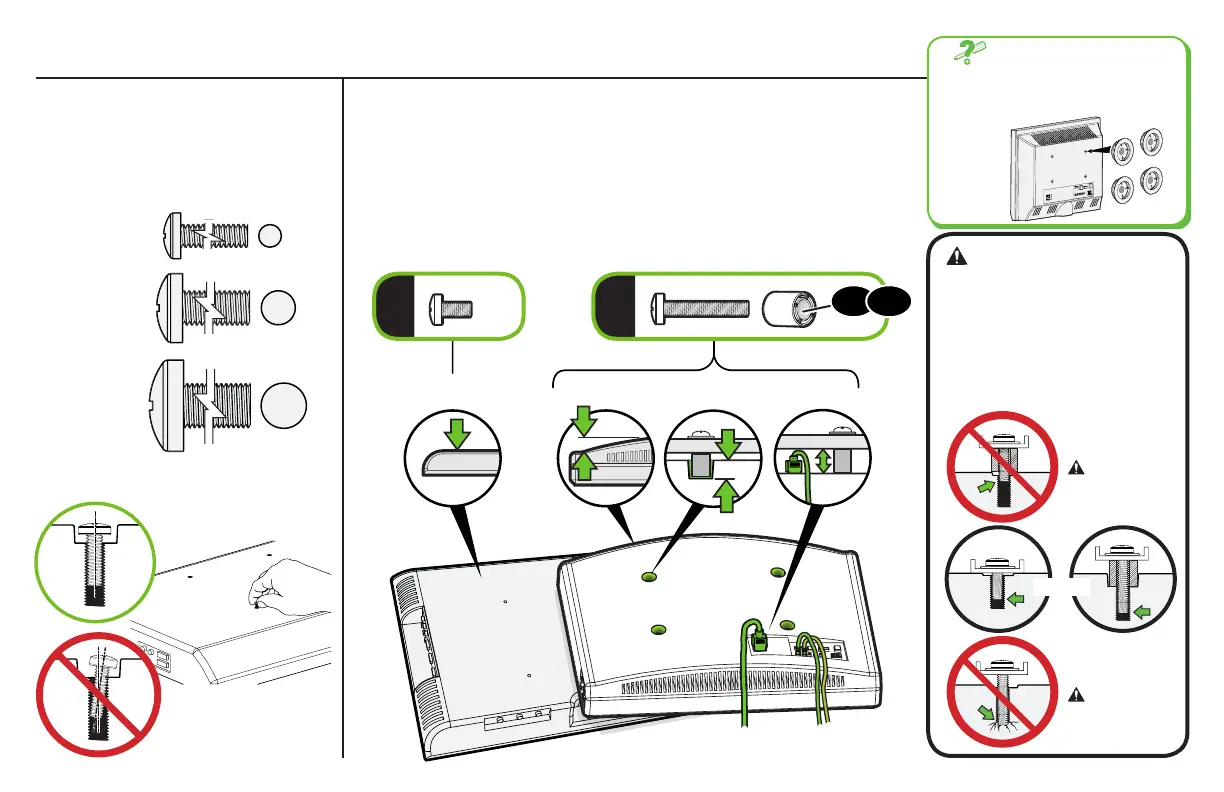

1.3 TV
Screw Diameter
1.4 TV
Screw Length
b: Spacers and longer screws are
supplied to accommodate:
● Round (irregular) back TVs
● TVs with inset mounting holes
● Extra space needed for cables
Hand thread screws into the
threaded inserts on the back of
your TV to determine which screw
diameter (M4, M6, or M8) to use.
Too Short
Too Long
CAUTION:
Verify adequate thread
engagement with the screw or
screw/spacer combination.
- Too short will not hold the TV.
- Too long will damage the TV.
Correct
a: If your TV has a
flat back AND you
want your TV closer
to the wall, use the
shorter screws.
a
b
14 15
If your TV included
inset spacers or wall mount
adapters, see Troubleshooting
on
PAGE 25.
