CAUTION:
Avoid potential personal injuries and property damage!
● TV and accessories must not weigh more than 110 lb (49.8 kg)
● Studs must be at least 2x4 in. / 25 ga.
● If back side of wall is unfinished, drywall must be installed to a minimum of one stud left and right of the stud(s) being used to install the mount
● Drywall must be a minimum of 1/2 in. (13 mm) thick on each side of the studs, and a minimum clearance of 1 ⅞ in. (48 mm) behind the wall is required
● Pilot holes MUST be drilled to a depth of 1 in. (26 mm), using a 1/2 in. (13 mm.) diameter drill bit
● This product must be centered on the studs
● Stud type and structural strength must conform to the North American Specification for the Design of Cold-Formed Steel Structural
Members [362 S 125 18, C-Shape, S - Stud Section]
● Drywall must be secured to studs with screws 12 in. (304.8 mm) on center
STEP 2C Attach Wall Plate
Steel Stud Installation

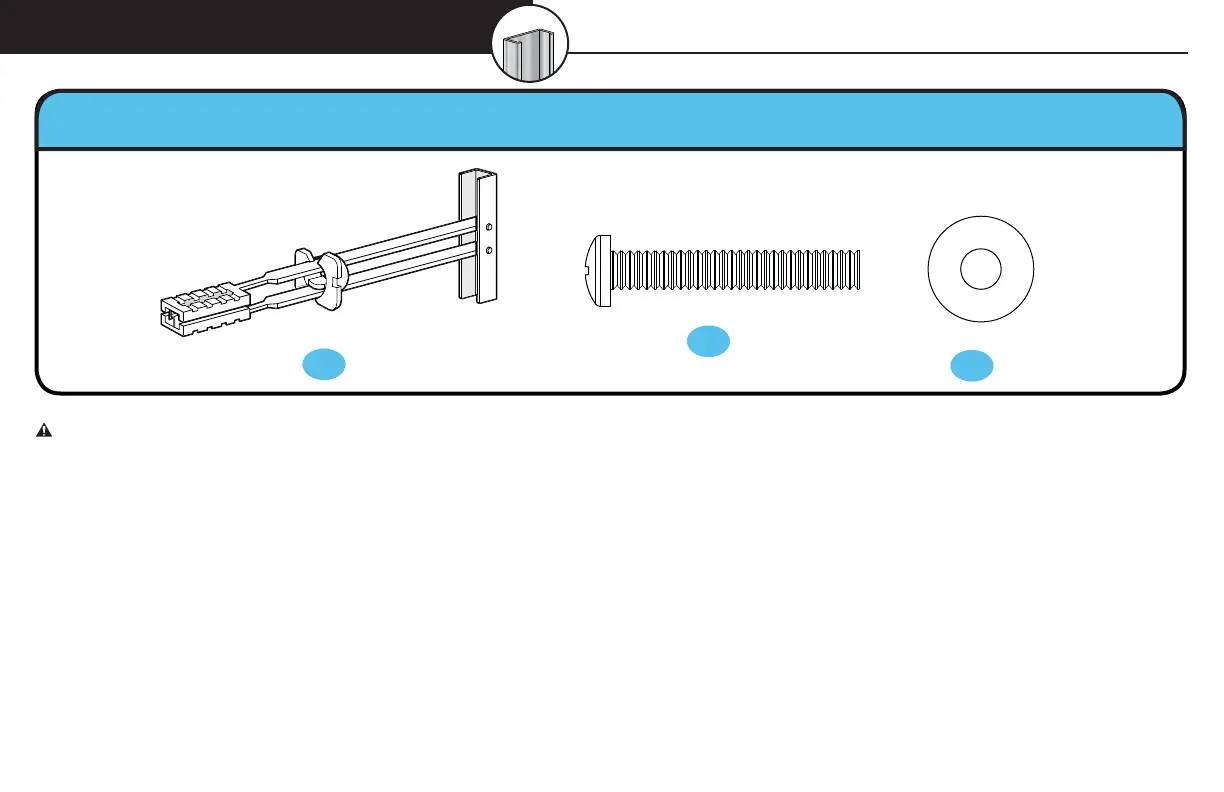

Steel Stud Anchor Kit (not included) -
Contact Customer Service at 1-888-333-1376 to inquire about the additional hardware.
14
1/4-20 x 1¾ in.
1/4 in.
1/4-20 Snap Toggle BB
S1 x4
S2 x4
S3 x4
