Sanus VisionMount LF228 - Attach Brackets to TV

6901-002114 <01>
5

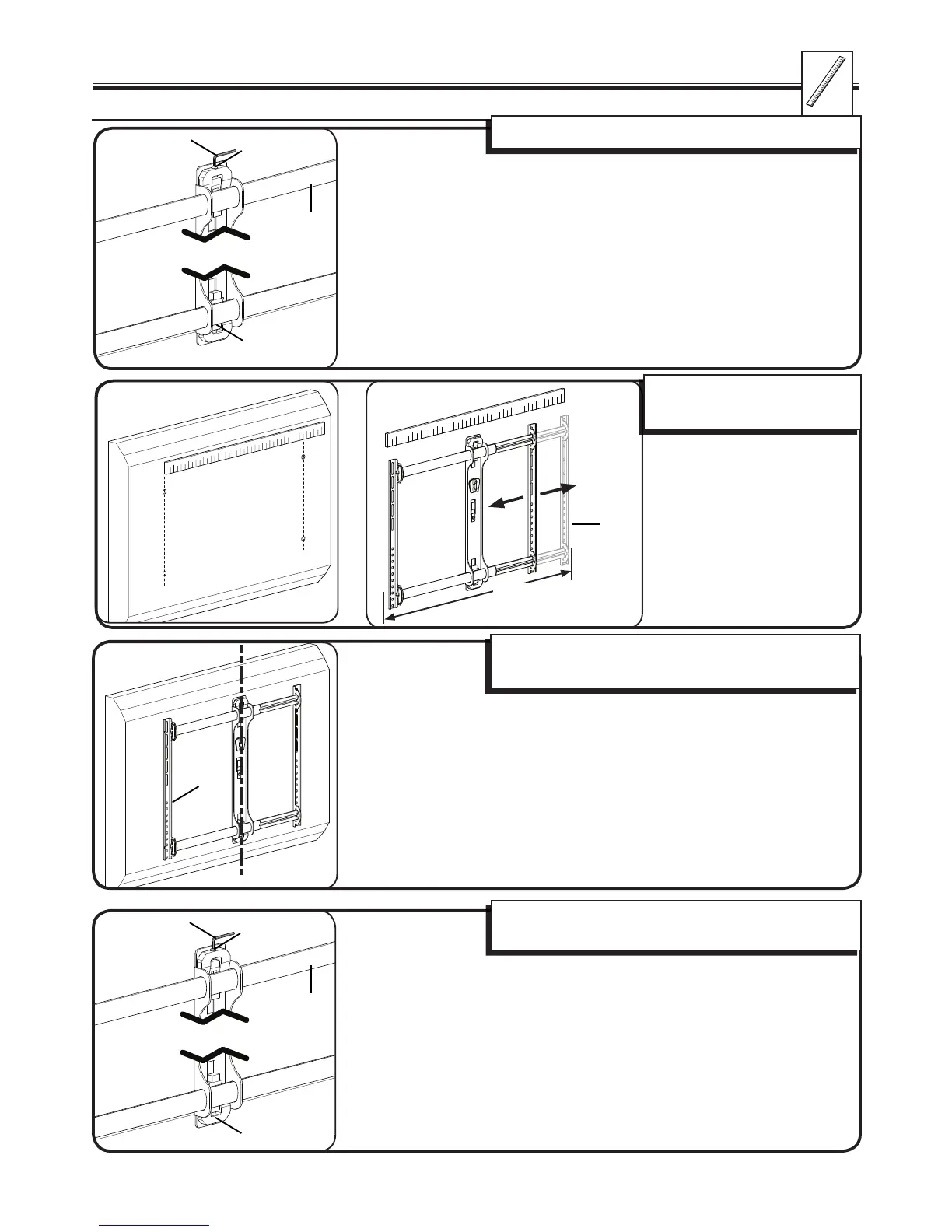

1 Attach Brackets to TV
1-1 Determine TV hole pattern
002543.eps
LF228 - adjust monitor bracket size
002543.eps
LF228 - adjust monitor bracket size
41 - 61 cm
(16 - 24 in.)
002545.eps
LF228-Center column
002545.eps
LF228-Center column
[02]
[31]
(B)
(A)
002545.eps
LF228-Center column
[31]
(B)
(A)
Adjust the monitor plate [02] to fit
the hole pattern of your TV.
Be sure that the center column is aligned with the center of your
TV.
Tighten the upper (A) and lower (B) fasteners. Do not
overtighten.
Loosen the upper (A) and lower (B) fasteners.
[02]
[02]
[02]
