41 - 61 cm
(16 - 24 in.)
< 16 mm
(5/8 in.)

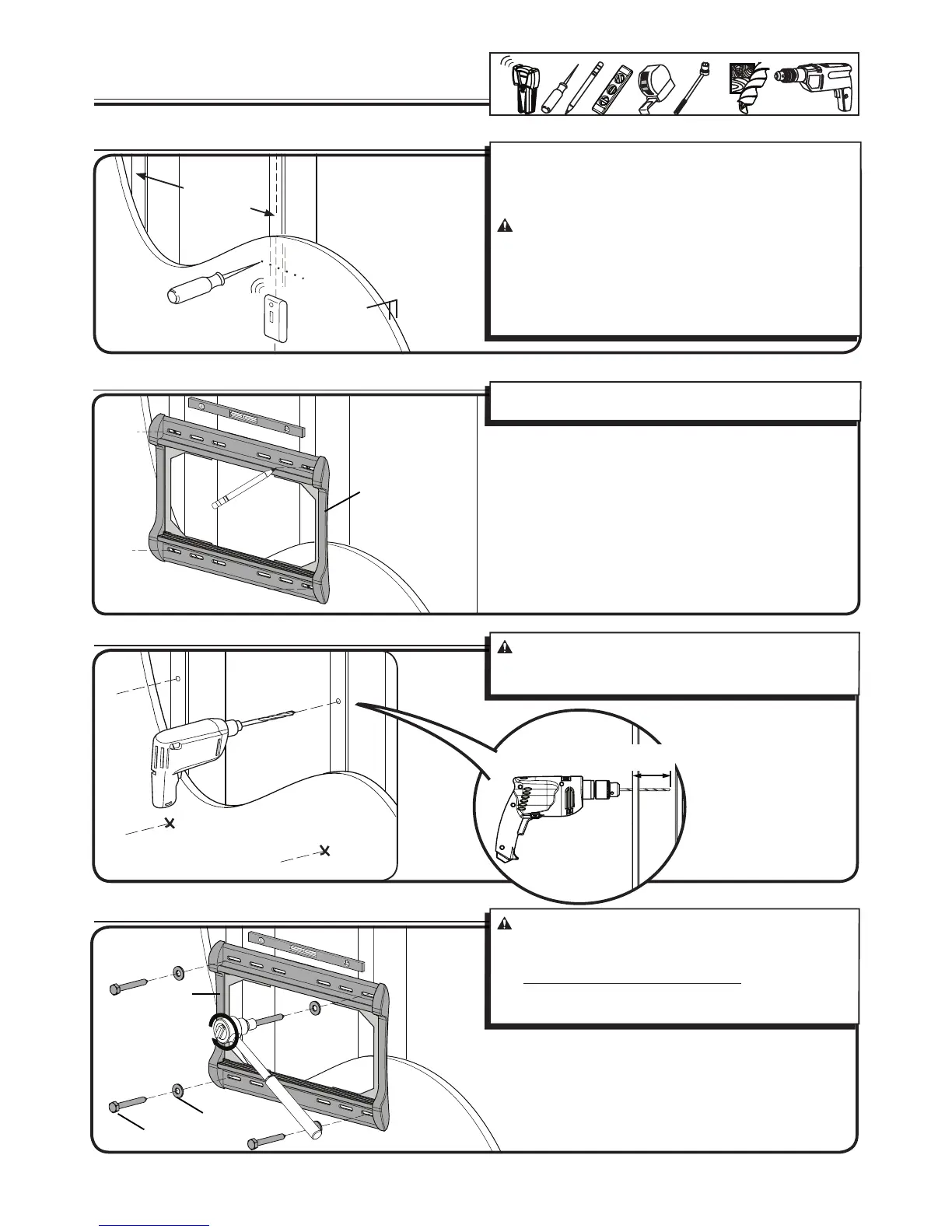

2 Wall Mounting Wood stud
5.5mm
(7/32 in.)
13 mm
(1/2 in.)
2-1 Locate studs
2-2 Mark the wall
For assistance in determining wall plate location, see Height
Finder at sanus.com.
Verify the center of the stud(s) using an awl, a thin nail, or an
edge to edge stud finder.
CAUTION: Avoid potential personal injuries and property
damage!
Ù Any material covering the wall must not exceed 16 mm (5/8
in.).
Ù Minimum wood stud size: common 2 x 4 in (nominal 1.5 x
3.5 in).
Level the wall plate [01] and mark the hole locations.
2-3 Drill pilot holes
2-4 Tighten lag bolts
CAUTION:
Avoid potential injuries or property damage!
Pilot holes MUST be drilled to a depth of 89 mm (3.5 in.), using a
5.5 mm (7/32 in.) diameter drill bit.
89 mm
(3.5 in.)
CAUTION:
Avoid potential injuries or property damage!
Improper use could reduce the holding power of the lag bolt. To
avoid potential injuries or property damage:
Ù DO NOT over-tighten the lag bolts [25].
Ù Tighten the lag bolts [25] only until the washers [27] are
pulled firmly against the wall plate [01].
[01]
[25]
[27]
