Sanus VisionMount LF228 - Page 9

6901-002114 <01>
9

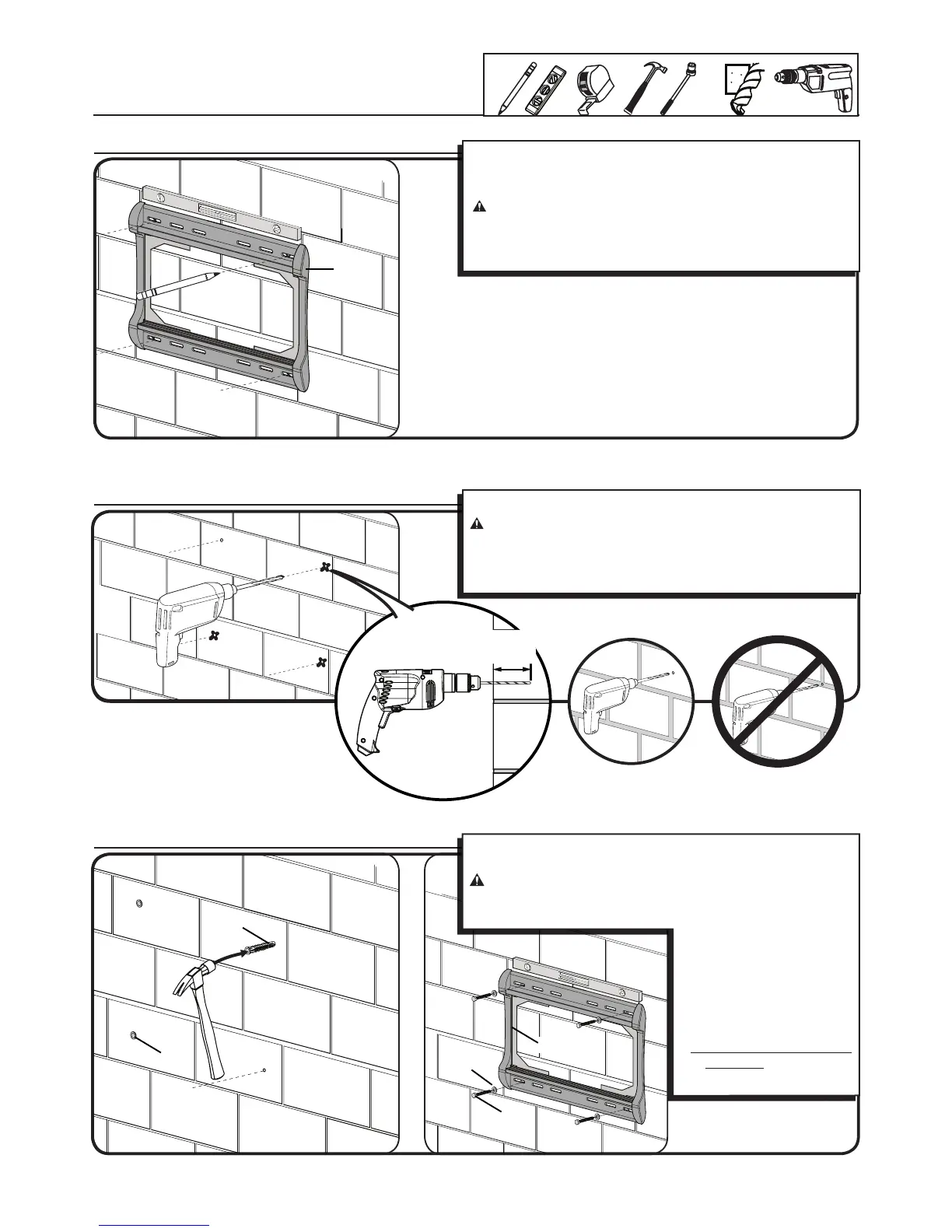

2 Wall Mounting
Solid concrete or concrete block
2-1 Mark the wall
2-2 Drill pilot holes
2-3 Insert anchors and lag bolts
001439.eps
Attach Plate to Wall
001439.eps
Attach Plate to Wall
002862.eps
002862.eps
13 mm
(1/2 in.)
10 mm
(3/8 in.)
89 mm
(3.5 in.)
Drill pilot holes as illustrated.
CAUTION: Avoid potential injuries or property damage! :
Ù Pilot holes MUST be drilled to a depth of 89 mm (3.5 in.) using a
10 mm (3/8 in.) diameter drill bit.
Ù Never drill into the mortar between blocks.
Insert lag bolt anchors [26]. Then insert lag bolts [25] through the
wall plate [01] and into the anchors.
CAUTION: Avoid potential injuries or property damage!
Improper use could reduce the holding power of the lag bolt. To
avoid potential injuries or property damage:
ÙBe sure the anchors [26] seat
flush with the concrete
surface.
ÙTighten the lag bolts [25]
only until the washers [27]
are pulled firmly against
the wall plate [01].
ÙDO NOT over-tighten the lag
bolts [25].
For assistance in determining wall plate location, see Height Finder at
sanus.com.
Level the wall plate [01] and mark the hole locations.
CAUTION: Avoid potential injuries or property damage!
Ù Mount the wall plate [01] directly onto the concrete surface.
Ù Minimum solid concrete thickness: 8 in.
Ù Minimum concrete block size: 8 x 8 x 16 in.
[26]
[26]
[01]
[25]
[27]
[01]
