Sanus Visionmount MF209 - Hang TV Mount to Arm

6901-002129 <01>
10

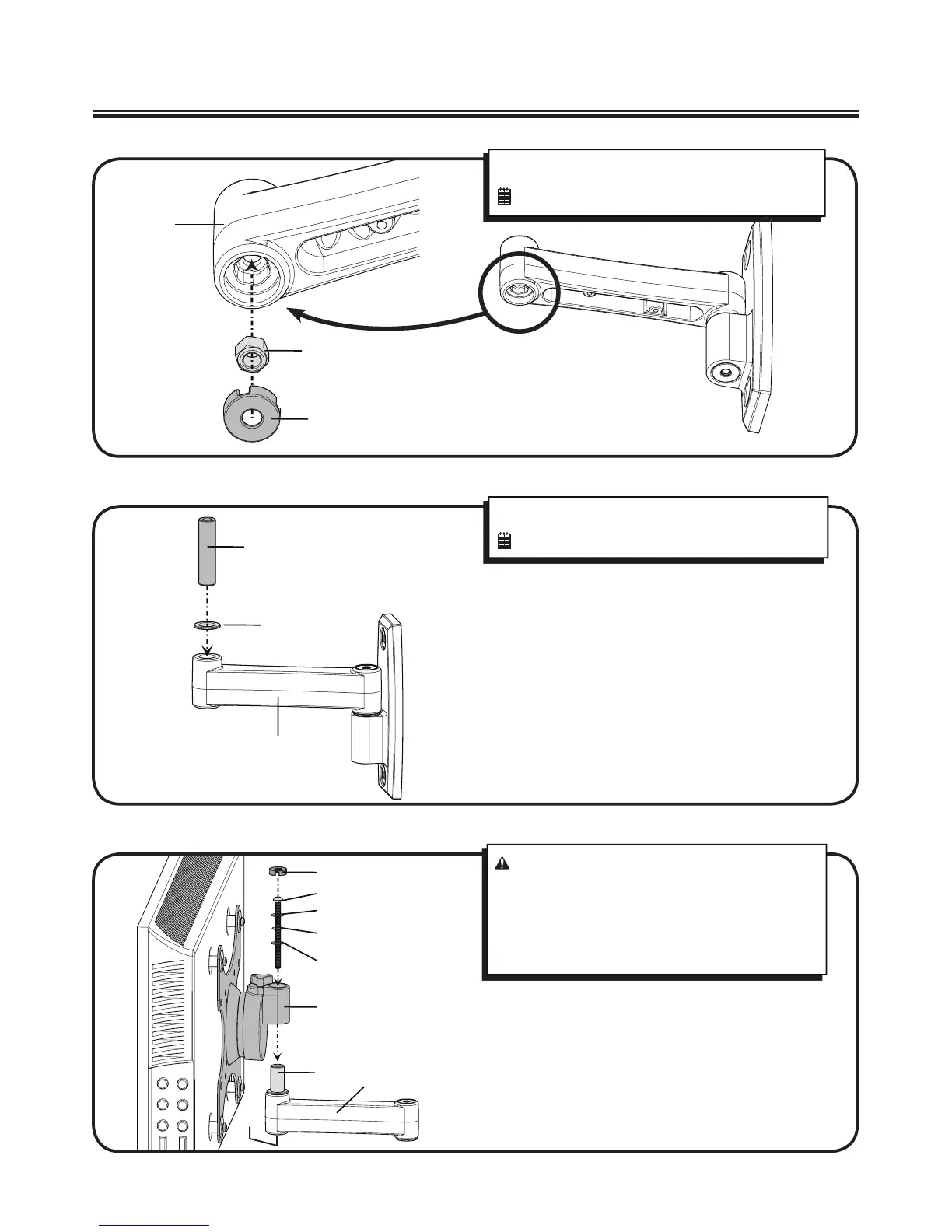

3 Hang TV Mount to Arm
Place washer [18] and pivot pin [17] onto mount arm.
NOTE: The MF209 is shown.
CAUTION: You will need assistance with this step!
Fit mounting bracket [01] onto pivot pin [17]. Slide
washers [22] and spacer [21] onto mounting bolt [20] and
 t bolt through mounting bracket [01] and pivot pin [17]
until it meets nut [19].
Fit cover [26] over mounting bolt [20].
[26]
[20]
[22]
[21]
[22]
[01]
[17]
[18]
[02]
[19]
[02]
[26]
[17]
[02]
Fit nut [19] and cover [26] into underside of mount arm.
NOTE: The MF209 is shown.
[19]
