6901-002029 <06>
3

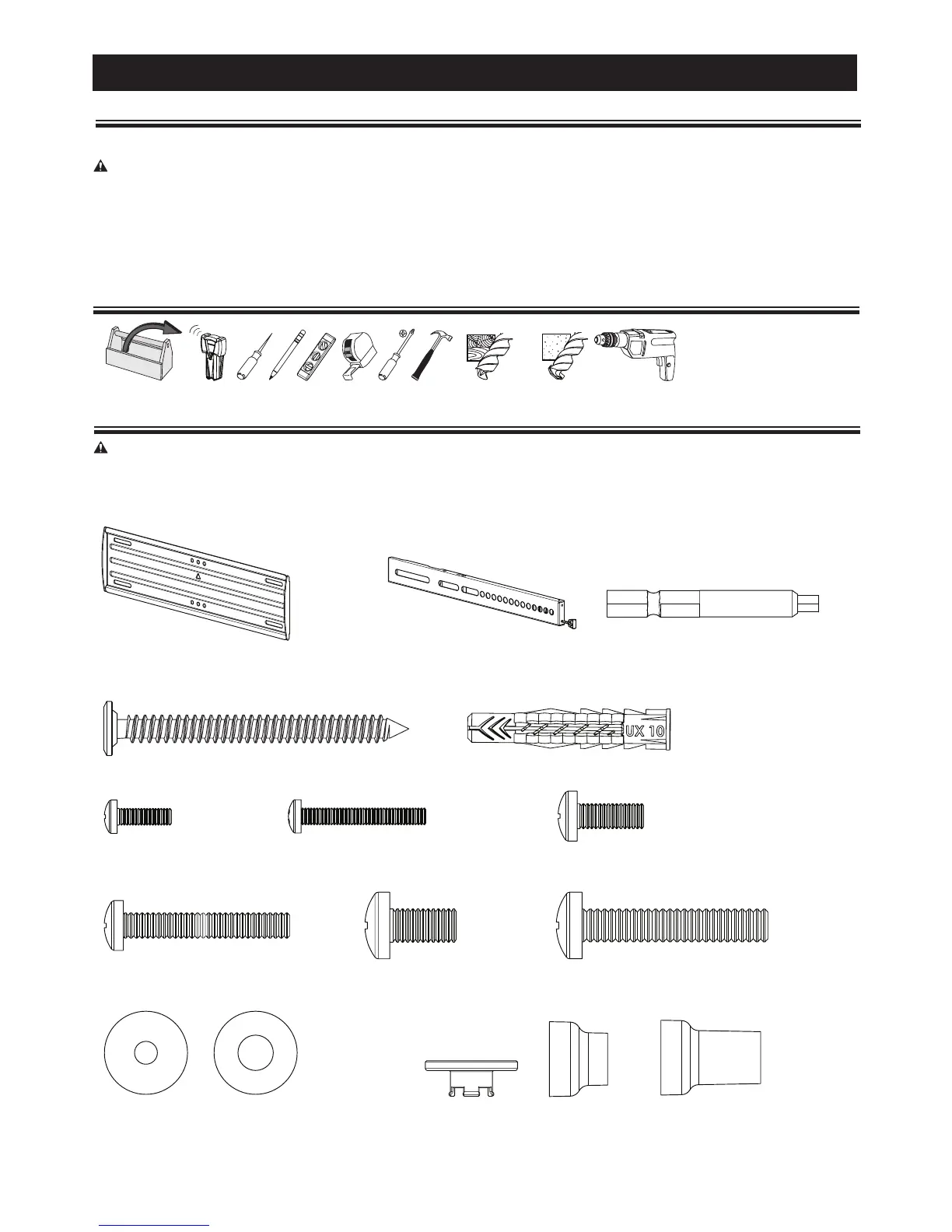

Supplied Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts! NOTE: M4, M6, or M8 describes the diameter, mm describes the
length of screws that are labeled M# X ##mm. Not all hardware included will be used.
M4 / M5 M6 / M8
M8 x 45mm
M6 x 14mm
M6 x 40mm
M4 x 30mm
14mm
M4 x 12mm
M8 x 16mm
24mm
Specifications
Weight capacity-DO NOT EXCEED: 36 kg (80 lbs) includes TV and any accessories
CAUTION: Avoid potential personal injuries and property damage!
Ù Do not use this product for any purpose not explicitly specified by manufacturer.
Ù The wall must be capable of supporting five times the weight of the monitor and mount combined.
Ù This product is not designed for use in metal stud walls!
Ù If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact
manufacturer Customer Service or call a qualified contractor.
Ù Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
10mm
(3/8 in.)
5mm
(3/16 in.)
Required Tools
[01] x 1 [02] x 2 [03] x 1
[04] x 4 [05] x 4
[06] x 4
[07] x 4
[08] x 4
[09] x 4
[10] x 4
[11] x 4
[12] x 4 [13] x 4
[14] x 4 [15] x 4 [16] x 4
English
M7 x 70mm
M4
