STEP 2 Attach Wall Plate to Wall
Parts and Hardware for STEP 2
For Concrete Installations ONLY
UX10 x 60R
CAUTION: Do not use in drywall or wood
5⁄16 in. x 2 3⁄4 in.
M6 x 25mm
M8 x 25mm
M8 x 30mm
M8 x 50mm
For wood stud installations (Double Stud), follow STEP 2A on PAGE 8
For wood stud installations (Single Stud), follow STEP 2B on PAGE 11
For concrete installations, follow STEP 2C on PAGE 14
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!

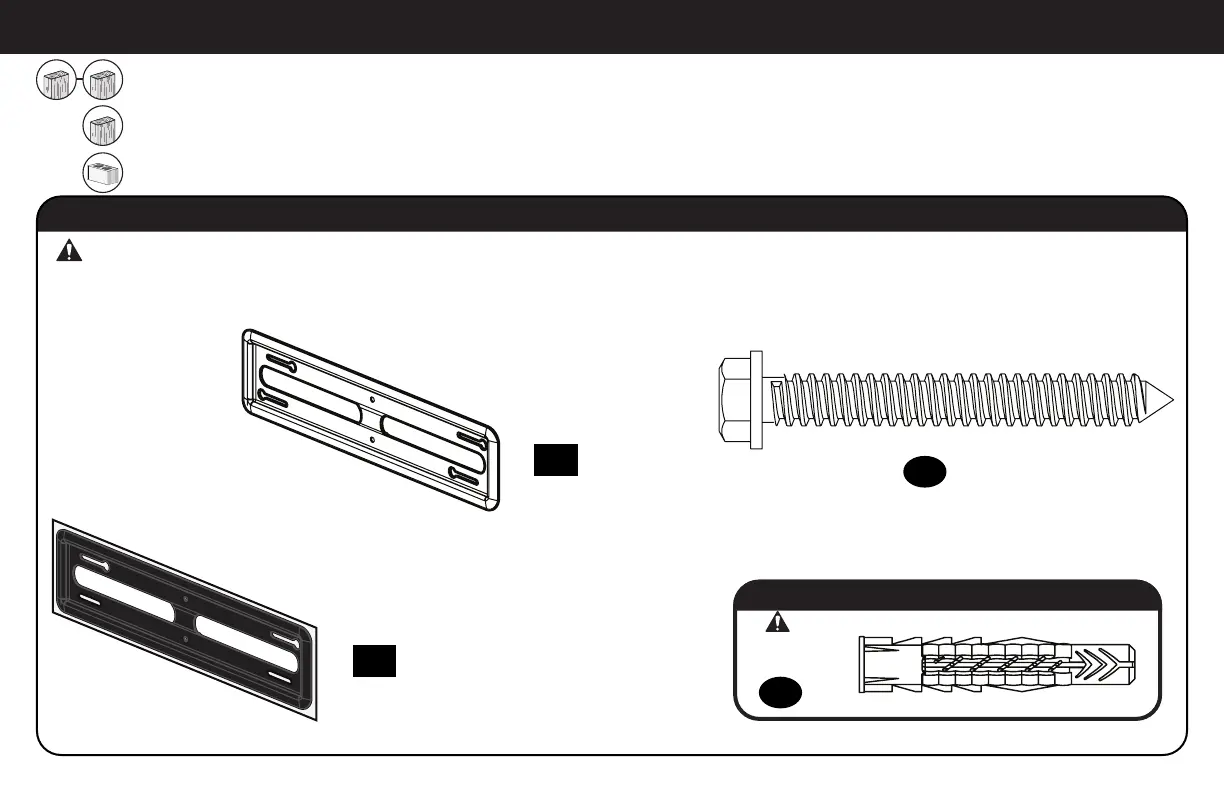

Wall Plate
Wall Plate
Template
Lag Bolt
Concrete
Anchor
11 x4
12 x4
09 x1
10 x1
