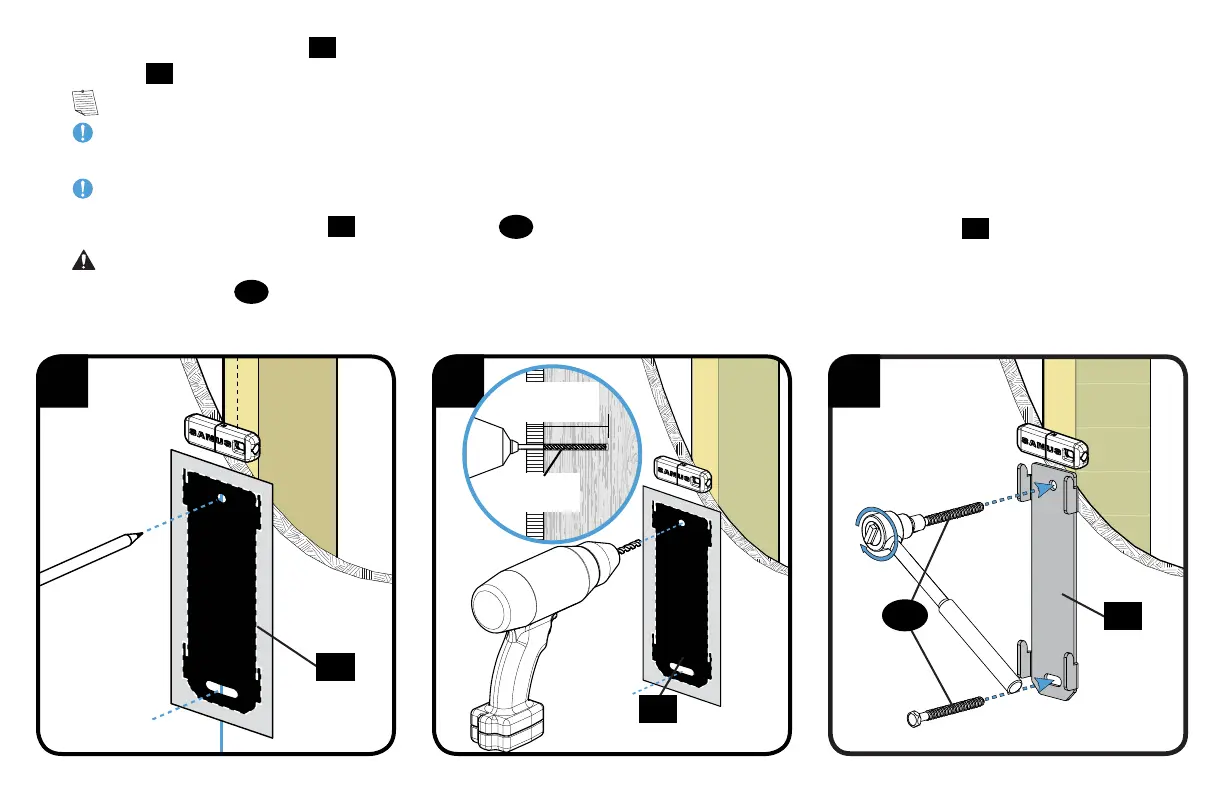

4. Place the wall plate template
17
at your desired height and position the slotted holes over your stud center line. Level the wall plate
template
17
and tape in place.
NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.
IMPORTANT: Be sure you mark and drill into the center of the stud.
5. Drill the two pilot holes using a 3 mm (1/8 in.) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 63.5 mm (2½ in.).
6. Remove the wall plate template
17
. Tighten lag bolts
20
only until they are pulled fi rmly against the wall plate
18
.
CAUTION: Improper use could reduce the holding power of the lag bolt. To avoid potential injuries or property damage do not over-
tighten the lag bolts
20
.
