To further secure the unit, use the supplied metal strap to secure the back of the unit in
place. Use the supplied hardware (Hexagonal bolt with washer (M4 x 6)) to attach one
end of the strap to the hole (M4 x 6 MAX) on the back of the unit. If necessary, bend the
metal strap to fit your vehicle’s mounting area. Then use the supplied hardware (Tapping
screw (M5 x 12)) to attach the other end of metal strap to a solid metal part of the vehicle
under the dashboard. This strap also helps ensure proper electrical grounding of the
unit.
6
Reconnect the cable to the vehicle battery’s negative (–) terminal. Then place the outer
trim ring.
7
INSTALLATION
MANUAL

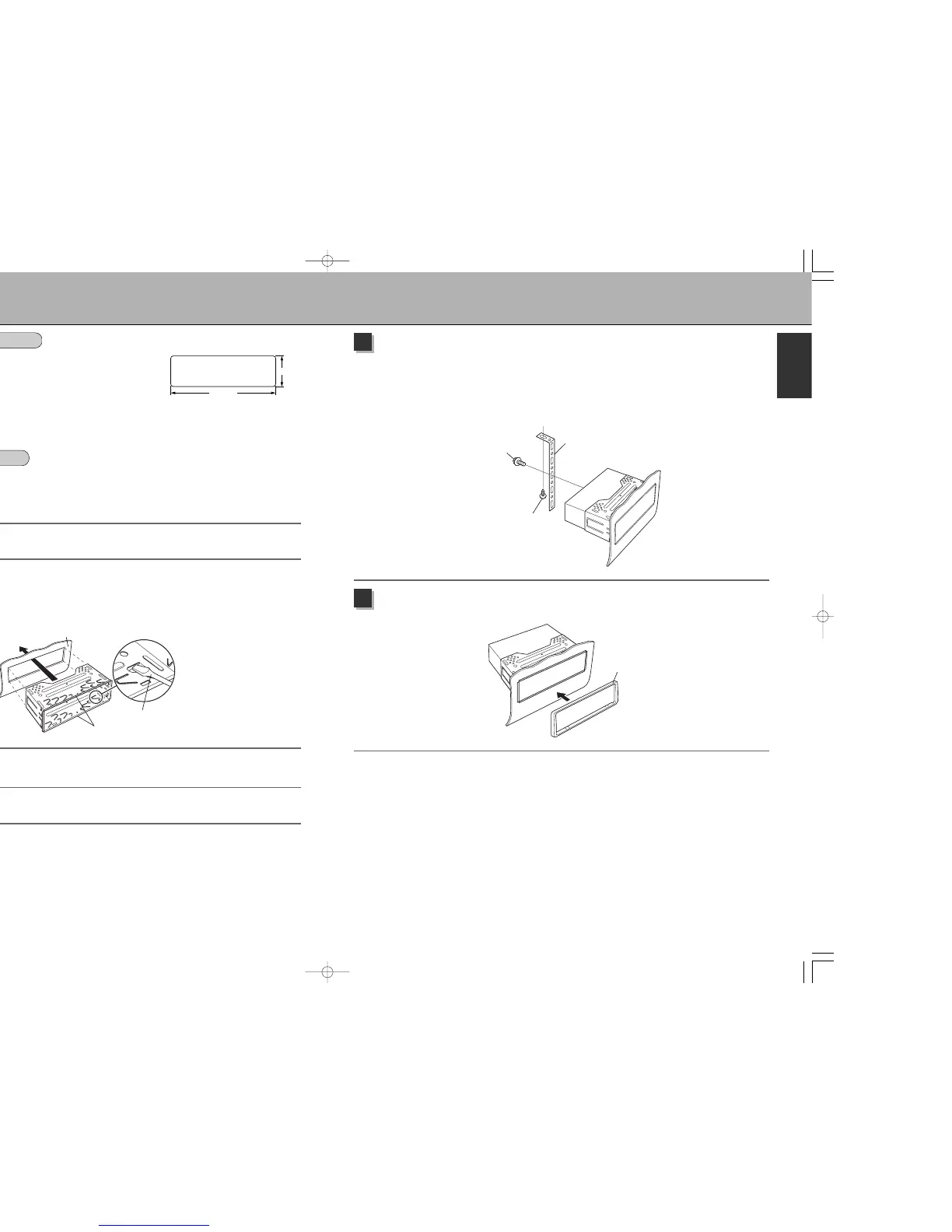

INSTALLING THE UNIT
This unit can be installed in any dashboard having an opening
as shown below:
INSTALLATION OPENING
INSTALLING THE UNIT
Make sure the ignition is turned off, and then disconnect the cable from the vehicle
battery’s negative (–) terminal.
1
Disconnect the wire harness and the antenna.
2
Mount the sleeve by inserting the sleeve into the opening of the dashboard and bend
open the tabs located around the sleeve with a screwdriver. Not all tabs will be able to
make contact, so examine which ones will be most effective. Bending open the
appropriate tabs behind the dashboard to secure the sleeve in place.
3
Be sure you test all connections first, and then follow these steps to install the unit.
Reconnect the wire harness and the aerial and be careful not to pinch any wires or
cables.
4
Slide the unit into the sleeve until it clicks and locks into place.
5
To Next Page
