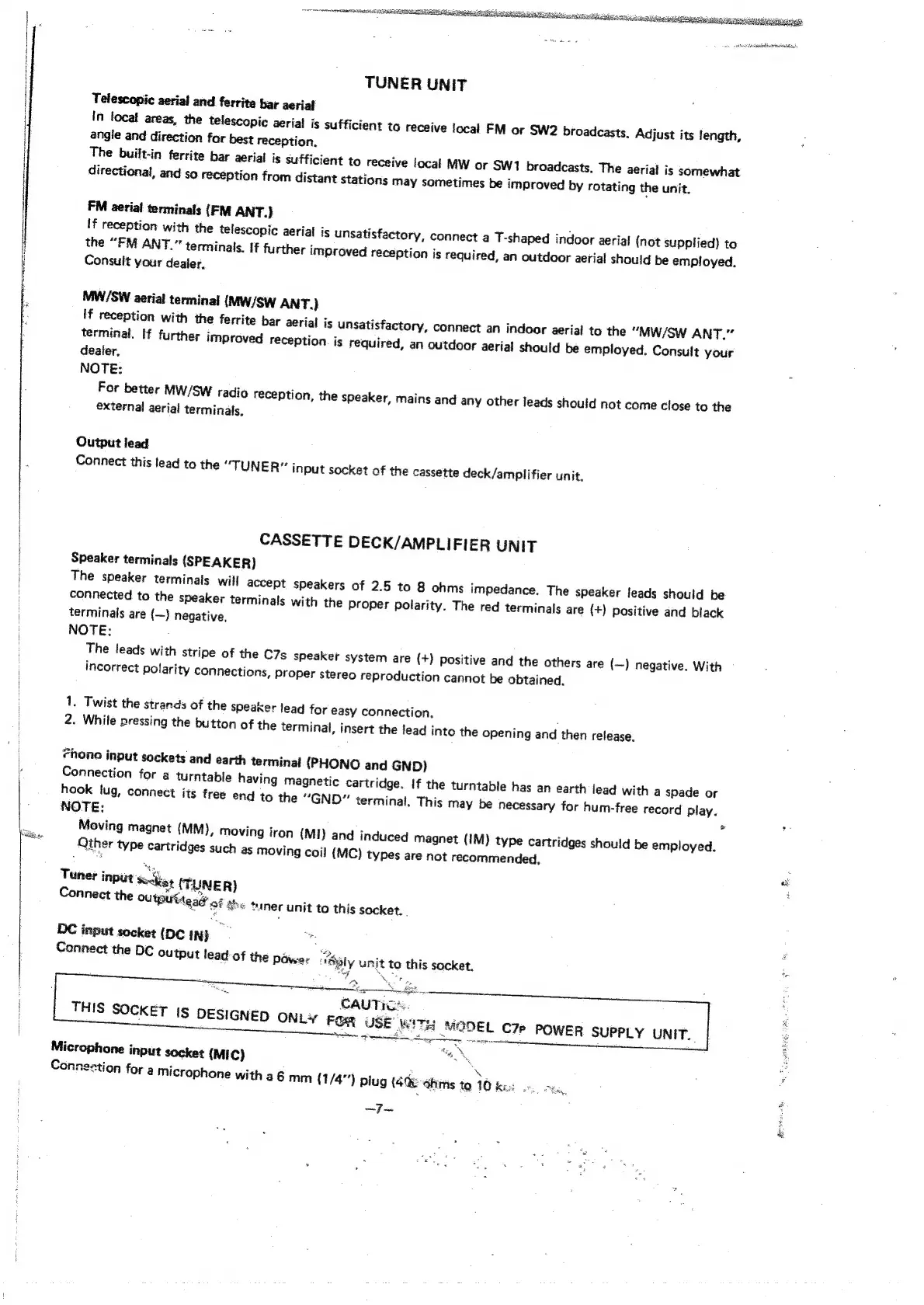

TUNER
UNIT
Telescopic
aerial
and
ferrite
bar
aerial
In
tocat
areas.
the
telescopic
aerial
is
sufficient
to
receive
local
FM
or
SW2
broadcasts.
Adjust
its
length,
angle
and
direction
for
best
reception.
The
built-in
ferrite
bar
aerial
is
sufficient
to
receive
local
MW
or
SW1
broadcasts.
The
aerial
is
somewhat
directional,
and
so
reception
from
distant
Stations
may
sometimes
be
improved
by
rotating
the
unit.
FM
aerial
terminals
(FM
ANT.)
If
reception
with
the
telescopic
aerial
is
unsatisfactory,
connect
a
T-shaped
indoor
aerial
{not
supplied)
to
the
“FM
ANT.”
terminals.
[f
further
improved
reception
is
required,
an
outdoor
aerial
should
be
employed.
:
Consult
your
dealer.
MW/SW
aerial
terminal
(MW/SW
ANT.)
If
reception
with
the
ferrite
bar
aerial
is
unsatisfactory,
connect
an
indoor
aerial
to
the
“MW/SW
ANT.”
terminal.
If
further
improved
reception.
is
required,
an
outdoor
aerial
should
be
employed.
Consult
your
dealer.
NOTE:
For
better
MW/SW
radio
reception,
the
speaker,
mains
and
any
other
leads
should
not
come
close
to
the
external
aerial
terminals.
Output lead
Connect
this
lead
to
the
“TUNER”
input
socket
of
the
Cassette
deck/amplifier
unit,
|
CASSETTE
DECK/AMPLIFIER
UNIT
Speaker
terminals
(SPEAKER)
The
speaker
terminals
will
accept
speakers
of
2.5
to
8
ohms
impedance.
The
speaker
leads
should
be
connected
to
the
speaker
terminals
with
the
proper
polarity.
The
red
terminals
are
(+)
positive
and
black
terminals
are
(—)
negative,
NOTE:
:
The
leads
with
stripe
of
the
C7s
speaker
system
are
(+)
positive
and
the
others
are
(—)
negative.
With
incorrect
Polarity
connections,
proper
stereo
reproduction
cannot
be
obtained,
1,
Twist
the
strands
of
the
speaker
lead
for
easy
connection.
2.
While
pressing
the
button
of
the
terminal,
insert
the
lead
into
the
opening
and
then
release.
Pnone
input
sockets
and
earth
terminal
{PHONO
and
GND)
Connection
for
a
turntable
having
magnetic
cartridge.
If
the
turntable
has
an
earth
lead
with
a
spade
or
hook
tug,
connect
its
free
end
to
the
“GND”
terminal,
This
may
be
necessary
for
hum-free
record
play.
NOTE:
‘
dc
Moving
magnet
(MM),
moving
iron
(MI)
and
induced
magnet
(IM)
type
Cartridges
should
be
employed.
Qther
type
Cartridges
such
as
moving
coil
(MC)
types
are
not
recommended,
Tuner
INPUT
sockias
(TUNER)
Connect
the
OuNpUMead’
of
she
tuner
unit
to
this
socket.
DC
input
socket
(DC
IN}
is
:
Connect
the
DC
output
lead
of
the
pawe:
“®ply
unit
to
this
socket.
:
a
nant
-
_
CAUTIC®.
THIS
SOCKET
IS
DESIGNED
ONLY
FoR
use
fee
Microphone
input
socket
(MIC)
\
Connestion
for
a
microphone
with
a
6
mm
{1/4”)
plug
(44
ohms
to
10
Kix
om
ir
