Service Manual MS CE25FN1-E
16

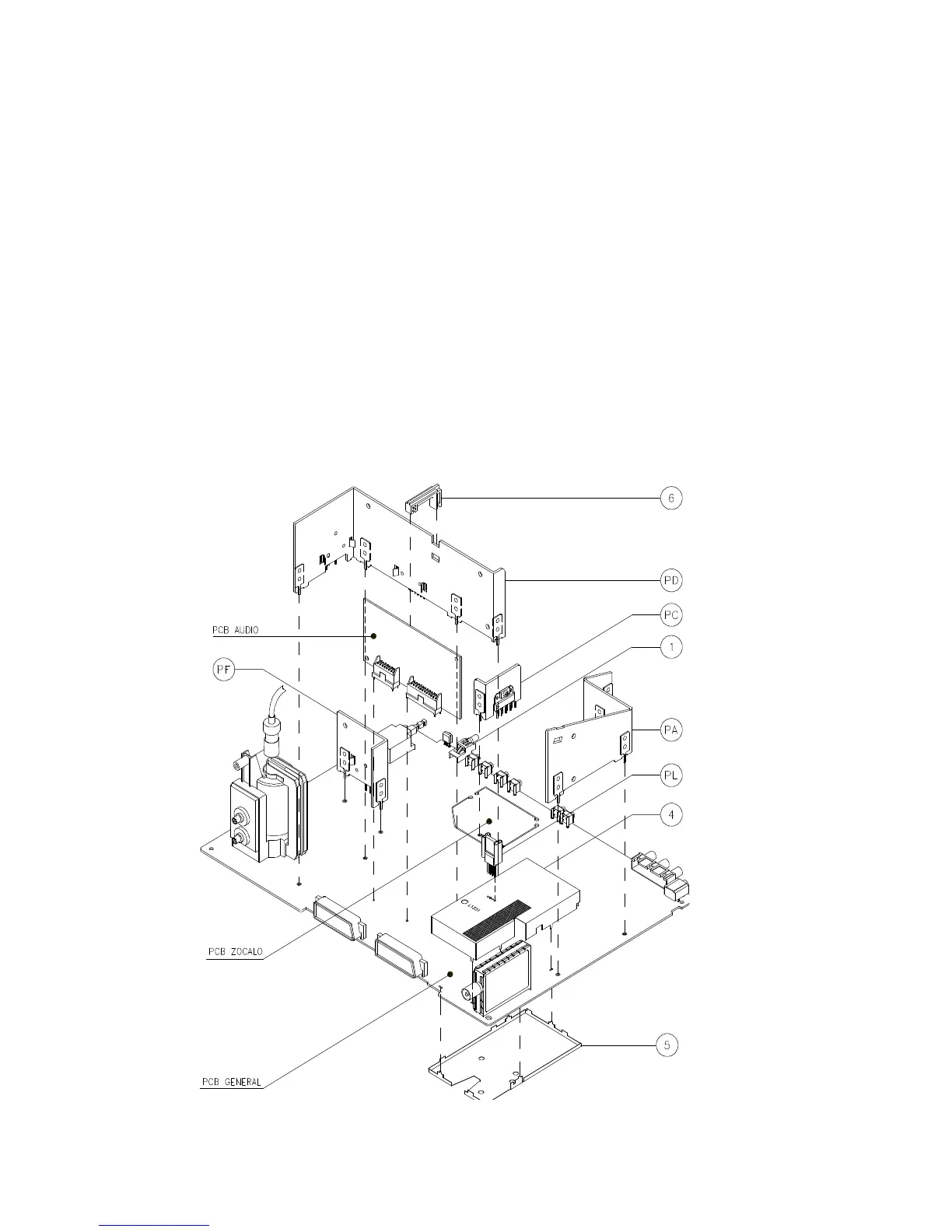

19. CHASSIS ELECTRICAL PARTS LIST CE21FN1-E / CE25FN1-E / CE28FN1-E
Position Part No. Description
YG 1 0200826402 LED Holder
YG 4 ¬ 0080112501 COMP. Side IF Shield EB5-A
YG 5 ¬ 0080112600 Copper Side IF Shield EB5-A
YG 6 0200627305 AUDIO MODULE Holder
Assy PA (Audio)
IC300 0360512206 TDA 7263 M
YR300 0200224319 HEARSINK 'Z' 56,6X126,5
YR300A 0640705117 Eyelet 2,5-3
YR301 0970200804 Silicon Grease YG6260
YR302 0890005200 Screw M3X0,5X10
YR303 0990010316 HEXAGONAL NUT M3X0,5
YR304 0050709104 Washer
YR305 0050203207 SAFETY Washer M3
Assy PD (Deflection)
IC701 25”/28” 0360514608 TDA 8350Q N5
IC701 21” 0360514707 TDA 8351AQ N5
Q650 0360306708 S 2055 N
YR650 0200224608 Heatsink Deflection EB5-A
YR650A 0640705117 Eyelet 2,5-3
YR651 0970200804 Silicon Grease YG6260
YR652 0010106300 Spring CLIP 56379
Position Part No. Description
Assy PF(Power Supply)
IC800 0360467609 STR-F6653
YR800 0200224707 Heatsink SOURCE EB5-A
YR800A 0640705117 Eyelet 2,5-3
YR801 0970200804 Silicon Grease YG6260
YR802 0010106300 Spring CLIP 56379
Assy PL
IC854 0360472807 KA78R05-STU
YR854 0200224905 Heatsink TO-220-F
Assy PC (Socket TRC)
IC500 0360514202 TDA 6107 Q N1
YR500 0200224806 Heatsink RGB EB5-A
YR500A 0640705117 Eyelet 2,5-3
YR501 0970200804 Silicon Grease YG6260
YR502 0050709104 Washer
YR503 0890121106 Screw M3X6 FE/ZN DIN 7985
