- 5 -

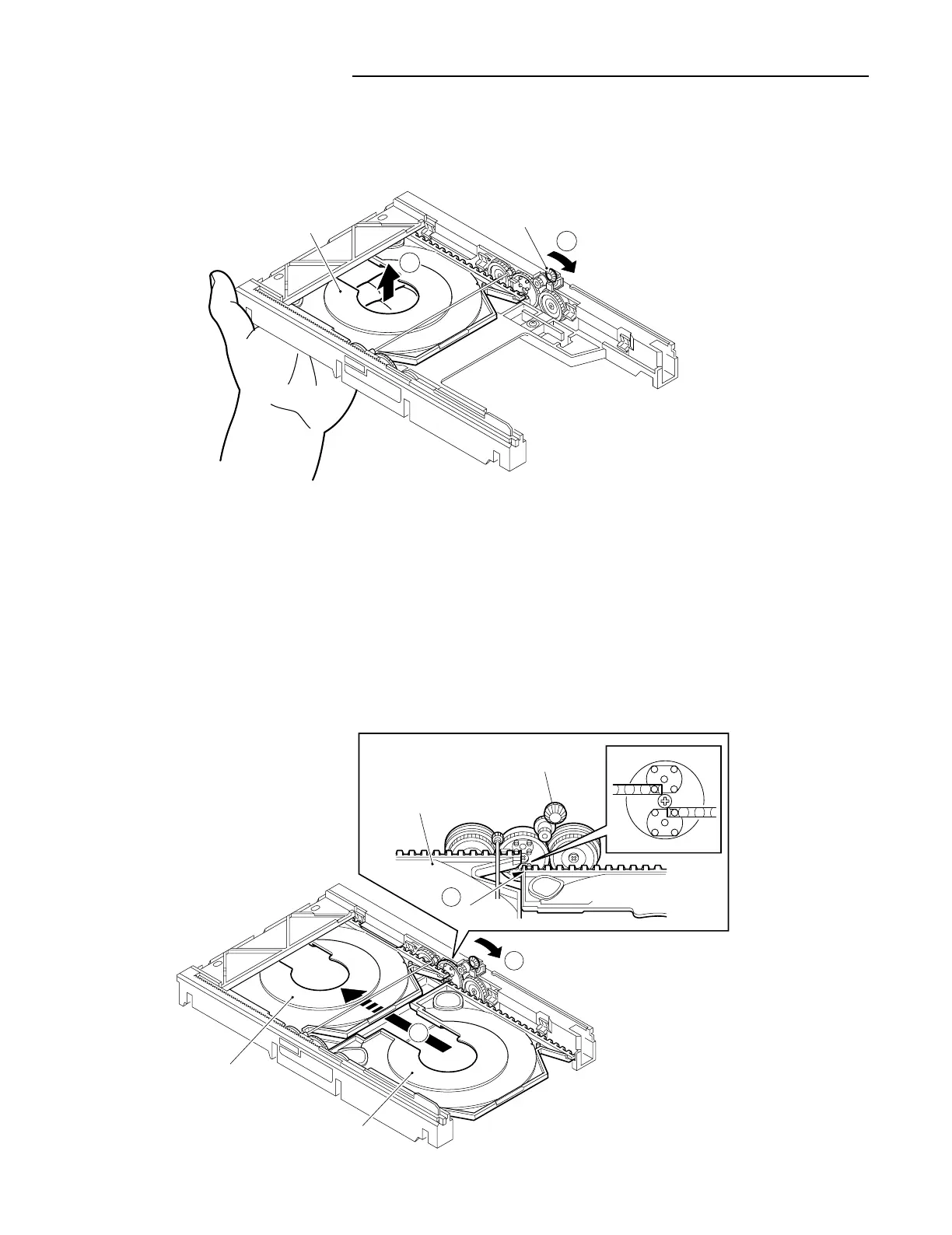

4. Push CM13 CARRIAGE No.2 up with your fingers (Fig.6).
5. Place CM12 CARRIAGE No.1 as shown in the illustration (Fig.7).
6. Turn CM18 BEVEL GEAR 4 to slide the carriage into its position.
2
1
BEVEL GEAR
CM18
NO.2 CARRIAGE
CM13
BEVEL GEAR 4
CM18
2
3
4
1st. TOOTH
NO.1 CARRIAGE
CM12
NO.1 CARRIAGE
CM12
NO.2 CARRIAGE
CM13
NO.2 CARRIAGE
CM13
Fig.6
Fig.7
3 CD MECHANISM INSTRUCTION
