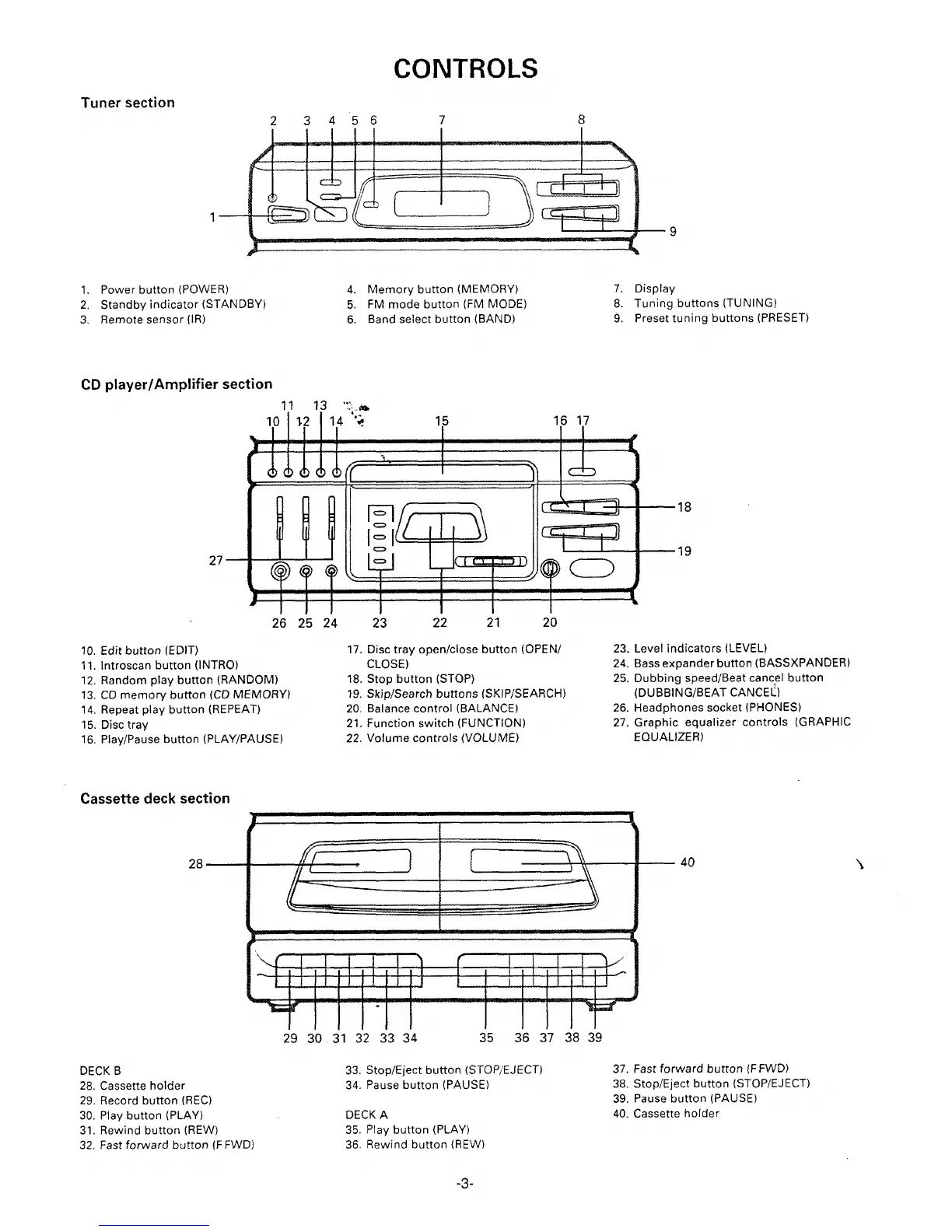

CONTROLS
Tuner section
1.
2,
3.
CD
2 3456
7
8
1
9
Power button (POWER) 4. Memory button (MEMORY)
7.
Standby indicator (STANDBY) 5. FM mode button (FM MODE)
8.
Remote sensor (IR)
6. Band select button (BAND)
9.
Display
Tuning buttons (TUNING)
Preset tuning buttons (PRESET)
player/Amplifier section
11 13 ‘:-.*
27
18
19
11. Introscan button (INTRO)
12. Random play button (RANDOM)
13. CD memory button (CD MEMORY)
14, Repeat play button (REPEAT)
15. Disc tray
16. Play/Pause button (PLAY/PAUSE)
10. Edit button (EDIT)
26 25 24
17.
18.
19.
20.
21.
22.
Cassette deck section
23 22
21
20
Disc tray open/close button (OPEN/
23. Level indicators (LEVEL)
CLOSE) 24. Bass expander button (BASSXPANDER)
Stop button (STOP) 25. Dubbing speed/Beat cancel button
Skip/Search buttons (SKIP/SEARCH)
(DUBBING/BEAT CANCEL)
Balance control (BALANCE) 26. Headphones socket (PHONES)
Function switch (FUNCTION) 27. Graphic equalizer controls (GRAPHIC
Volume controls (VOLUME) EQUALIZER)
28
DECK B
28. Cassette holder
29, Record button (REC)
30. Play button (PLAY)
31. Rewind button (REW)
32, Fast forward button (F FWD)
29 30 31 32 33 34 35 36 37 38 39
33. Stop/Eject button (STOP/EJECT)
37. Fast forward button (FFWD)
34. Pause button (PAUSE)
38. Stop/Eject button (STOP/EJECT)
39. Pause button (PAUSE)
DECK A
40. Cassette holder
35. Play button (PLAY)
36. Rewind button (REW)
