Sanyo DC-D9 Notice

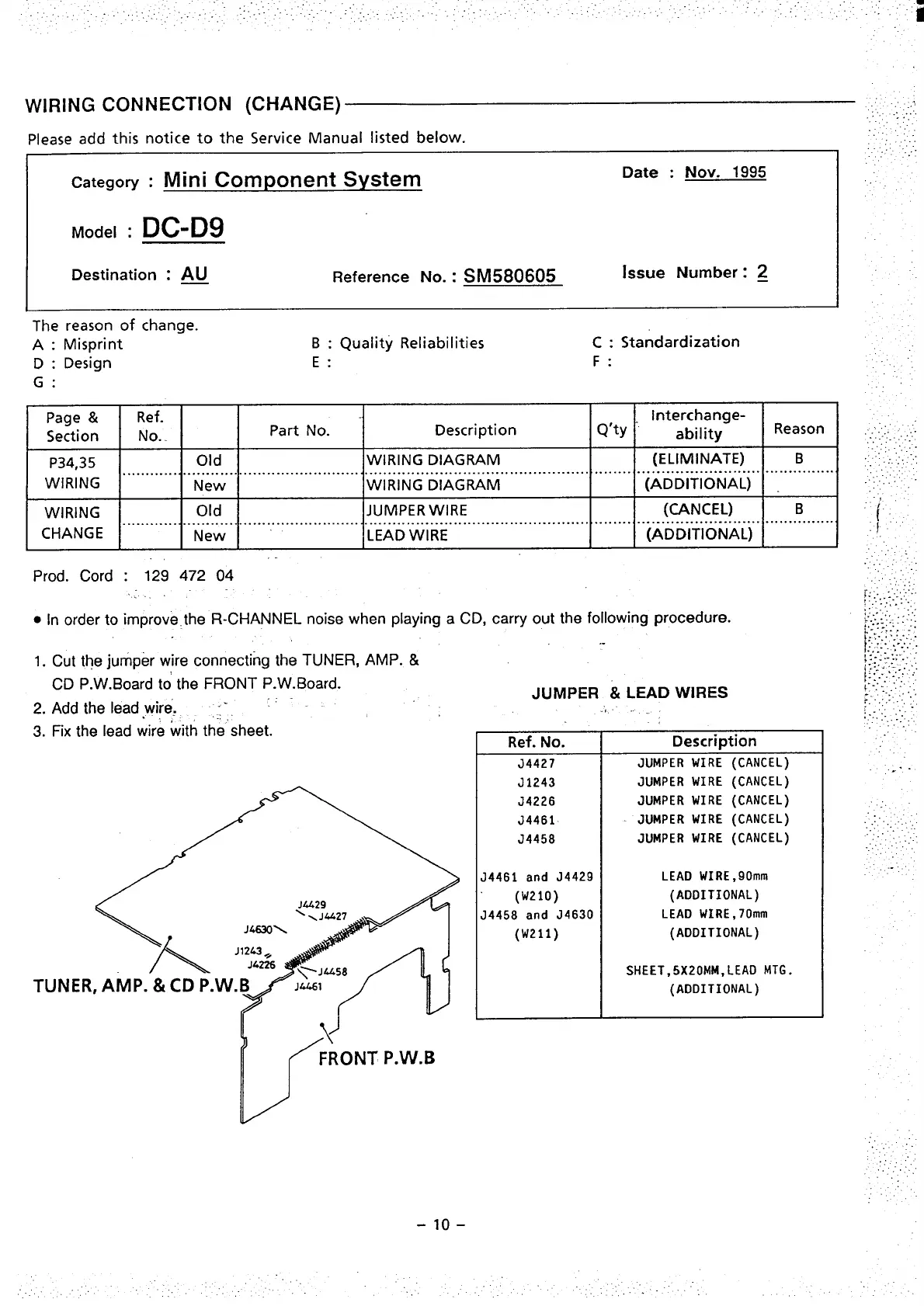

WIRING CONNECTION (CHANGE)
..-.....
Please add this notice to the Service Manual listed below.
,...
Category : Mini Component System
Date : Nov. 1995
Model
:
DC-D9
Destination : ~
Reference No. :
SM580605
Issue Number: ~
The reason of change.
A : Misprint
B : Quality Reliabilities
C : Standardization
D : Design
E:
F:
G:
Page &
Ref.
interchange-
Section
No..
Part No.
Description
Q’ty “
ability
Reason
P34,35
Old
WIRING DIAGRAM
(ELIMINATE) B
....................................................................................................
WIRING
........ .......................... ..............
New
WIRING DIAGRAM
(ADDITIONAL)
WIRING
Old
JUMPERWIRE
(CANCEL)
B
...................................................
................................................
CHANGE
........
.......................... ...............
New
LEAD WIRE
(ADDITIONAL)
Prod. Cord : 129 472 04
. . .
● In order to improve the R-CHANNEL noise when playing a CD, carry out the following procedure.
1.
2.
3.
Cut the jumper wire connecting the TUNER, AMP. &
CD P.W. Board to the FRONT P.W.Board.
Add the lead wire, ,;’ :‘ -
,.”
Fix the lead wire with the sheet.
<
J4429
A NI.4L27
J&@O\
A
J1243Z
TUNER, AMP. &CD P.W.B
FRONT P.W.B
-lo–
..
JUMPER & LEAD WIRES
.’!. . .
Ref. No.
J4427
J1243
J4226
J4461
04458
14461 and J4429
(W21O)
14458 and J4630
(W211)
Description
JUMPER WIRE (CANCEL)
JUMPER WIRE (CANCEL)
JUMPER WIRE (CANCEL)
JUMPER WIRE (CANCEL)
JUMPER WIRE (CANCEL)
LEAD WIRE,90mm
(ADDITIONAL)
LEAD WIRE, 70mm
(ADDITIONAL)
SHEET,5X20MM, LEAD MTG.
(ADDITIONAL)
