Sanyo DC-DA2000 User Manual

General

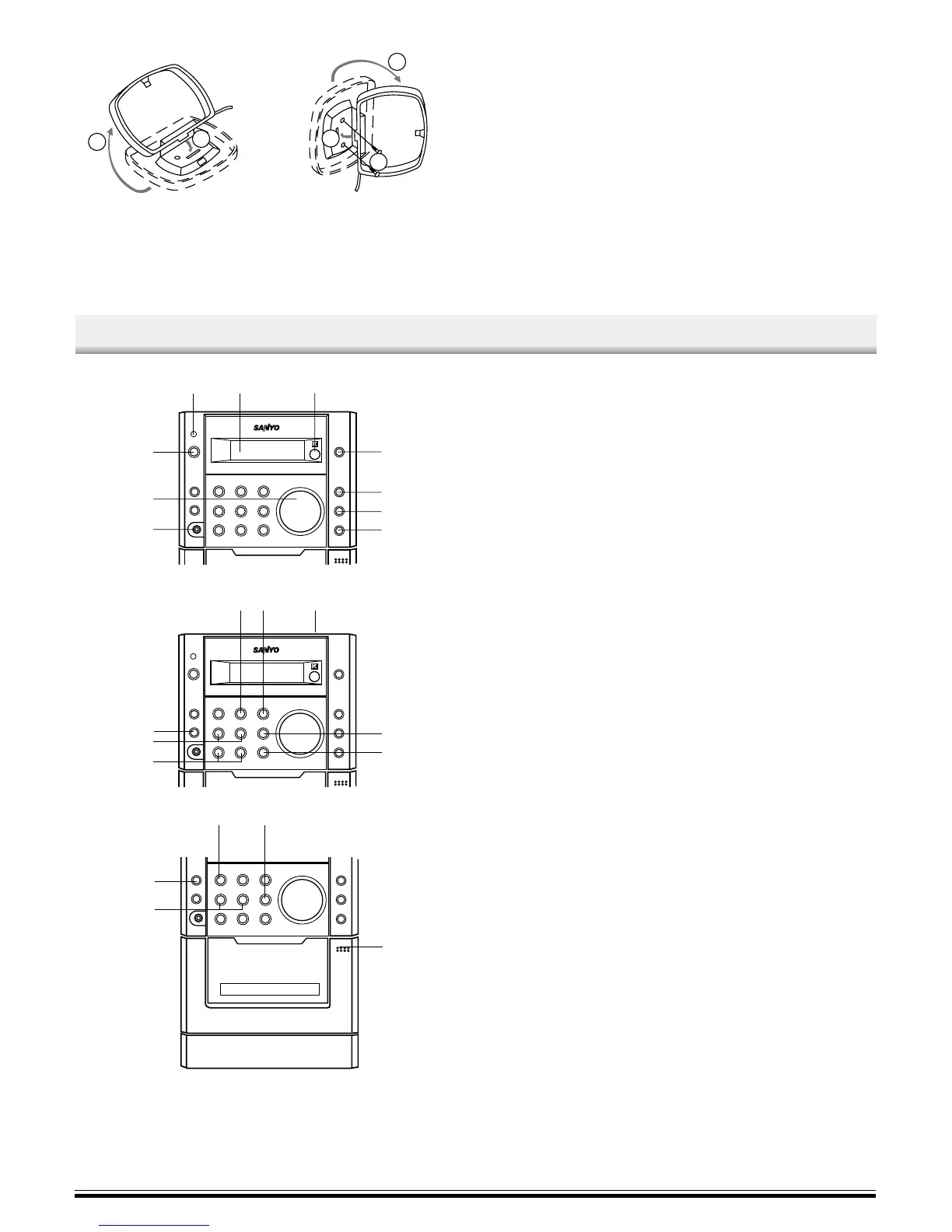

1. Standby indicator (STANDBY)
2. Display
3. Remote sensor (IR)
4. Function button (FUNCTION)
5. Bass expander button (BASS)
6. Sound preset button (SOUND PRESET)
7. Surround button (SURROUND)
8. Headphones socket (PHONES)
9. Volume control (VOLUME)
10. Power button (z/ON)
CD player/Tuner
1. Repeat play button (REPEAT)
2. Play/Pause button (CD/ i)
3. CD Compartment lid
4. Stop/Clear button (N)
5. Tuner function/Band select button (TUNER/BAND)
6. Preset tuning buttons (PRESET -, +)
7. Skip/Search/Tuning buttons (TUNING -, +/ F, E)
8. FM mode button (FM MODE)
Cassette deck
1. Play button (TAPE)
2. Stop button (N)
3. Cassette holder
4. Fast forward/ Rewind buttons (E, F)
5. Record/Record pause button (j)
Screws (not supplied)
CONTROLS
Video/Auxiliary equipment
Connect audio leads (not supplied) from the audio output sockets of a
video/auxiliary equipment to the LINE IN sockets.
Headphones
Connect stereo headphones (not supplied) to the PHONES socket for
monitoring or for private listening. The speakers are automatically
disconnected when headphones are connected.
Note:
To minimize noise, the speaker, mains and any other leads should not
come close to the indoor or external aerial lead and AM loop aerial. Do
not place the aerial leads close to the system.
AM Loop aerial
Assemble the loop aerial as shown in figure. Unwind the aerial wires,
then connect them to the AM LOOP terminals. Place the loop aerial in
a position which yields the best AM reception, or attach it to a wall or
other surface as shown in figure.
-2-
1
2
1
2
3
3
9
8
7
6
5
4
10
2
1
12
3
8
7
5
4
6
12
5
4
3

Sanyo DC-DA2000 Specifications

Tuner

FM frequency range	87.5 - 108 MHz
AM frequency range (9 kHz step)	522 - 1710 kHz
AM frequency range (10 kHz step)	520 - 1710 kHz

CD Player

Channels	2-channel stereo
Sampling frequency	44.1 kHz
Laser output	0.6 mW
Wave length	790 nm

Cassette Deck

Track system	4-track, 2-channel stereo
Frequency response	80 Hz to 15 kHz
Signal-to-noise ratio	40 dB
Wow/flutter	0.15% (WRMS)
Fast forward/rewind time	Approx. 110 sec. (C-60)

General

Output power	4W x 2
Power requirements	AC 230 ~ 240 V, 50 Hz
Power consumption	21 W
Dimensions	150(W) x 230(H) x 205(D) mm
Weight	2.3 kg

Speaker Systems

Type	Full range bass reflex
Unit used	10 cm cone type
Maximum power-handling capacity	8 W (peak)
Nominal impedance	4 ohms
Dimensions	145(W) x 230(H) x 170(D) mm
Weight	1.2 kg (per speaker)
