- 13 -
POWER TRANSFORMER,
PRIMARY P.WBOARD ASSY
REF.NO. PART NO. DESCRIPTION
74 614 314 9613 ASSY,PWB POWER TRNASFORMER
PRIMARY (Only Initial)
CN411 614 017 8203 TERMINAL BOARD
CN412 614 017 8203 TERMINAL BOARD
L4191
!
!!
645 041 3087 INDUCTOR,180U
or
!
!!
645 038 6053 INDUCTOR,181U
or
!
!!
645 017 8061 INDUCTOR,181M
POWER TRANSFORMER,
SECONDARY P.WBOARD ASSY
REF.NO. PART NO. DESCRIPTION
75 614 314 9620 ASSY,PWB POWER TRNASFORMER
SECONDARY (Only Initial)
CN420 614 020 1222 SOCKET,3P
CN421 614 316 8003 ASSY,WIRE,PT-AMPWIRE
D4280
!
!!
407 196 5800 DIODE 1N5402BD82
D4281
!
!!
407 196 5800 DIODE 1N5402BD82
D4282
!
!!
407 196 5800 DIODE 1N5402BD82
D4283
!
!!
407 196 5800 DIODE 1N5402BD82
D4284
!
!!
407 098 3300 DIODE RL153-BF-S2
FCL41
!
!!
645 006 4760 HOLDER,FUSE
or
!
!!
645 031 7903 HOLDER,FUSE
FCL42
!
!!
645 006 4760 HOLDER,FUSE
or
!
!!
645 031 7903 HOLDER,FUSE
PR420
!
!!
645 014 2567 PROTECTOR,2.5A 125V
CD LID SW P.A.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
76 614 316 5170 ASSY,PWB CD LID SW (Only Initial)
S1900 645 044 8782 SWITCH,LEVER
S1901 645 044 8799 SWITCH,LEVER
1
3
2
5
4
6
7
※
※
※
※
※
※
※

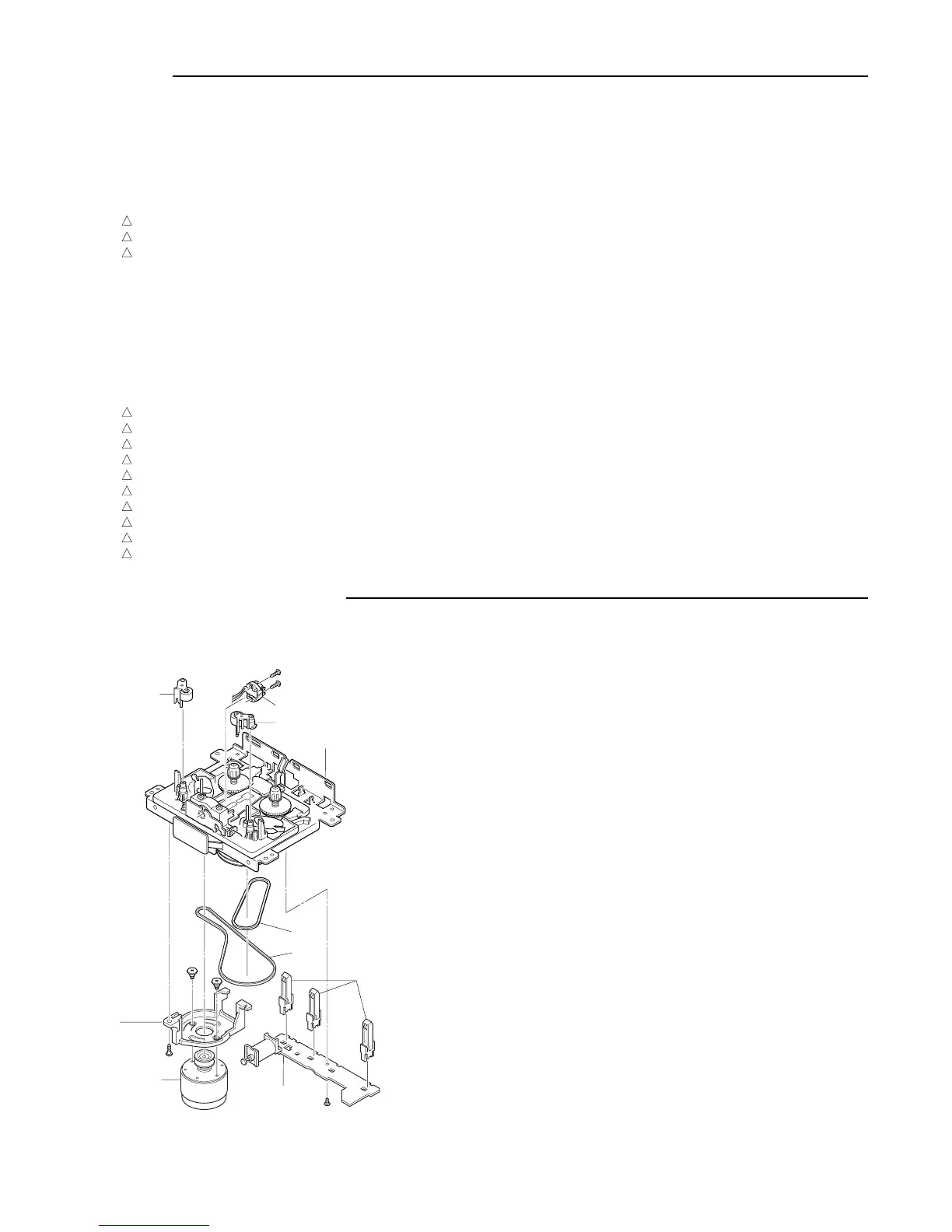

PARTS LIST(TAPE MECHANISM)
TAPE MECHANISM
REF.NO. PART NO. DESCRIPTION
614 315 4839 ASSY,MECHA,TM-DA370TN-SH
1 645 045 1799 R/P,E HEAD KC-9142EA-0321
2 645 010 9454 PINCH ROLLER(R) ASSY
3 645 010 9447 PINCH ROLLER(F) ASSY
4 645 045 1751 ASSY,MOTOR
5 645 045 1959 RF BELT
6 645 045 1997 MAIN BELT
7 645 045 2048 DETECT SWITCH MXS01190
PARTS LIST
※N.S.P:Notsuppliedasserviceparts.
