- 10 -

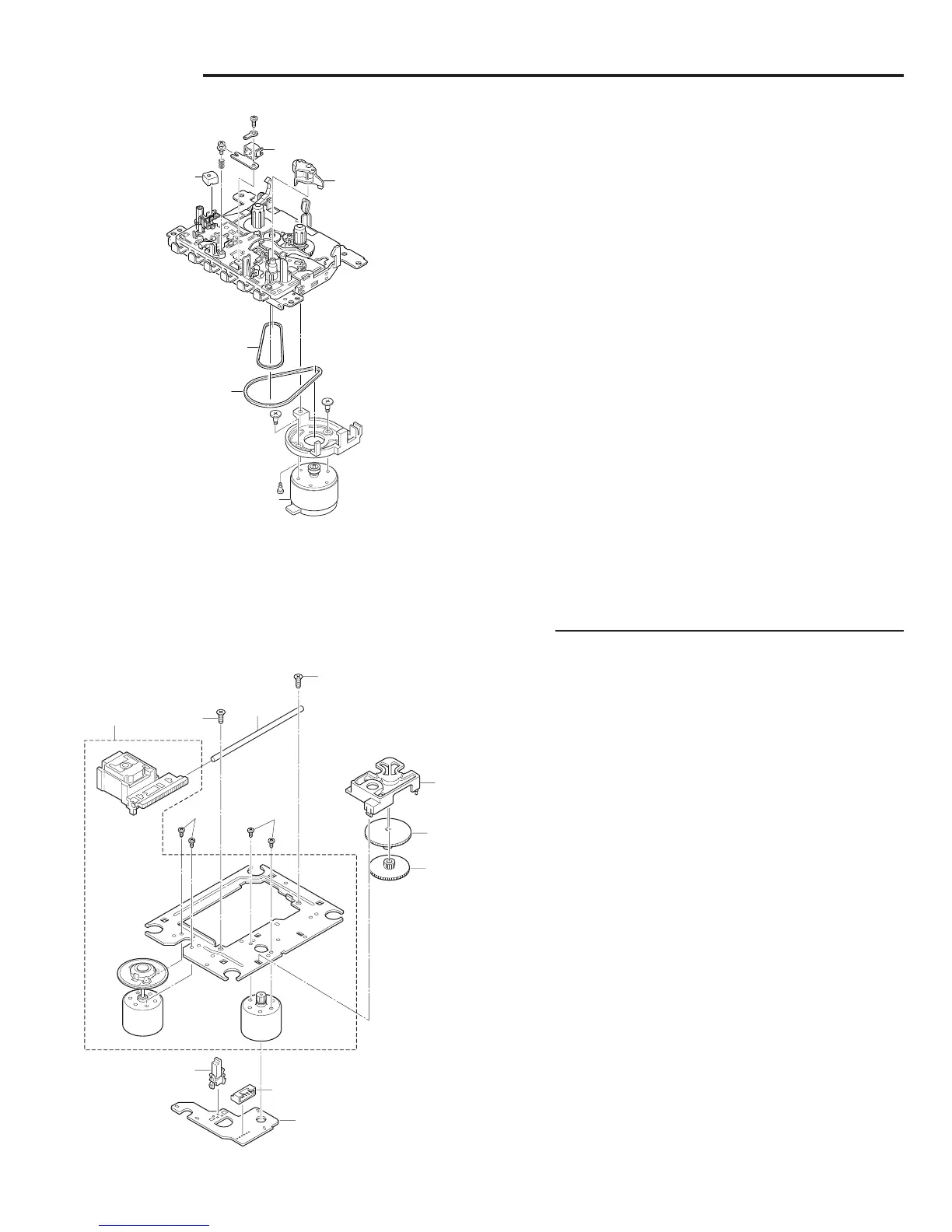

EXPLODED VIEW & PARTS LIST (CD MECHANISM)
PM03
PM04
PM05
PM09
PM09
PM02
PM08
PM01
PM10
PM07
PM06
PM08
PARTS LIST
TAPE MECHANISM (TM-DA70TN-SH... Only Initial)
REF.NO. PART NO. DESCRIPTION
614 309 7976 ASSY,MECHA,TM-DA70TN-SH
TM01 645 041 3025 R.P HEAD
TM02 645 009 1612 PINCH ROLLER ARM ASSY
TM03 645 033 8625 E.HEAD 6PA
TM04 645 009 1766 RF BELT
TM05 645 033 3415 MAIN BELT
TM06 614 304 1467 ASSY,MOTOR
TM06
TM05
TM04
TM02
TM01
TM03
CD MECHANISM (CDDA11-SASH...Only Initial)
REF.NO. PART NO. DESCRIPTION
PM01 620 021 8436 PLUG 6P
PM02 620 233 0853 ASSY MOTOR,BASE CHASSIS ASSY
PM03 620 236 3776 COVER,GEAR
PM04 620 230 8753 GEAR MIDDLE,RELAY GEAR
PM05 620 230 8760 GEAR DRIVE
PM06 620 231 0596 SHAFT SLIDE,PICK RAIL
PM07 620 233 0860 SWITCH LEAG,LIMIT SWITCH
PM08 411 104 8401 SCR PAN PCS 2X3
PM09 411 027 5402 SCR S-TPG FLT 2.6X6
PM10 620 236 0836 PWB,MOTOR
