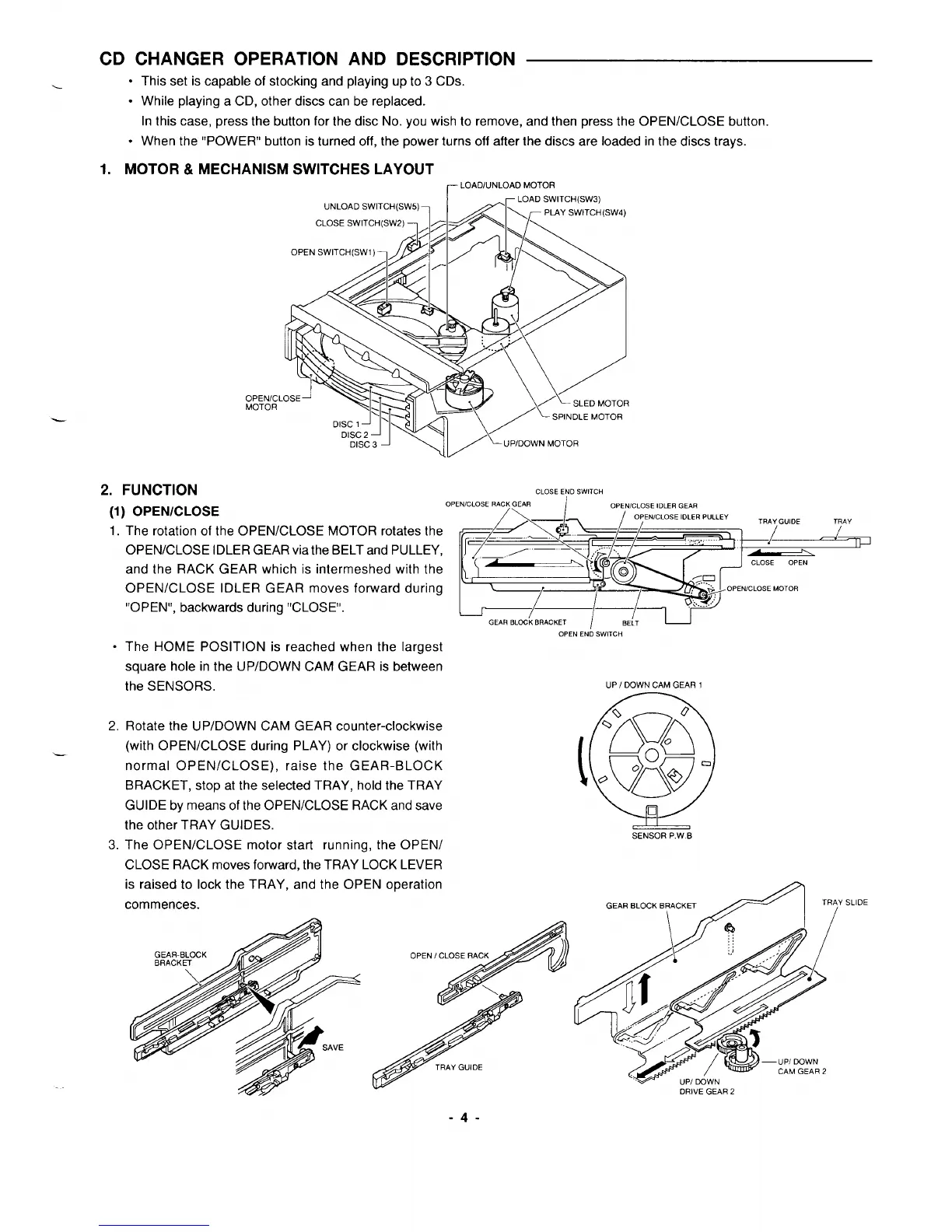

CD CHANGER OPERATION AND DESCRIPTION
● This set is capable of stocking and playing up to 3 CDs.
.
● While playing a CD, other discs can be replaced.
In this case, press the button for the disc No. you wish to remove, and then press the OPEN/CLOSE button.
● When the “POWER” button is turned off, the power turns off after the discs are loaded in the discs trays.
1. MOTOR & MECHANISM SWITCHES LAYOUT
~
LOAD/UNLOAD MOTOR
UNLOAD SWITCH(SW5)
1 I A-K%-RRLW4)
.
OPEN/CL
MOTOR
b:.
l]
==-.
&\
L)2z&’-
\
/
L sL~~ )’Jo~oR
DISC 1 ‘
/“”
SPINDLE MOTOR
DISC 2
DISC 3
UP/DOWN MOTOR
2. FUNCTION
(1) OPEN/CLOSE
1. The rotation of the OPEN/CLOSE MOTOR rotates the
OPEN/CLOSE IDLER GEAR via the BELT and PULLEY,
and the RACK GEAR which is intermeshed with the
OPEN/CLOSE IDLER GEAR moves forward during
“OPEN”, backwards during “CLOSE”.
.
2.
.-
3.
The HOME POSITION is reached when the largest
square hole in the UP/DOWN CAM GEAR is between
the SENSORS.
Rotate the UP/DOWN CAM GEAR counter-clockwise
(with OPEN/CLOSE during PLAY) or clockwise (with
normal OPEN/CLOSE), raise the GEAR-BLOCK
BRACKET, stop at the selected TRAY, hold the TRAY
GUIDE by means of the OPEN/CLOSE RACK and save
the other TRAY GUIDES.
The OPEN/CLOSE motor start running, the OPEN/
CLOSE RACK moves forward, the TRAY LOCK LEVER
is raised to lock the TRAY, and the OPEN operation
commences.
CLOSE END SWITCH
OPEN/CLOSE RACK GEAR
?&
= I
I —/ /—/—
L@----
-
/
I / I I
GEAR BLOC’KBRACKET
/
BELT
u
OPEN END SWITCH
SENSOR P.W B
GEAR BLOCK BRACKET
A ‘R,YSLIDE
-4-
To Next Page
