Sanyo DC-X5C - Exploded View (CD Base Mechanism); Parts List CD Changer Mechanism

- 38 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION
CM01 645 033 6072 ASSY,CHASSIS
CM02 645 033 7512 DRAWER 2
CM03 645 033 5976 ASSY,HOLDER L,DRAWER
CM04 645 033 6898 ASSY,HOLDER R3B,DRAWER
CM05 645 033 6041 ASSY,PC BOARD A
CM06 645 033 6065 ASSY,PC BOARD B
CM07 645 033 6058 ASSY,PC BOARD C
CM08 645 033 5945 LEAD WIRE
CM09 645 033 5952 LEAD WIRE
CM10 645 033 6713 SPACER SW
CM11 645 033 6027 ASSY,GEAR DRIVE,SINCHRO
CM12 645 033 6904 ASSY,CRG 100,CARRIAGE NO.1
CM13 645 033 6911 ASSY,CRG 200
CM14 645 033 6928 ASSY,CRG 300
CM15 645 033 5877 INSULATER
CM16 645 033 5884 INSULATER
CM17 645 033 5907 CUSHION
CM18 645 033 6324 BEVEL GEAR 4
CM19 645 033 5990 ASSY,GEAR STAR,CARRIAGE LIFT
CM23 645 033 6089 COVER 2
CM24 645 033 6539 SHAFT
CM25 645 033 6461 SLIDER 4
CM26 645 033 6201 GEAR SPLINE
CM27 645 033 6232 BEVEL GEAR 1
CM28 645 033 6270 GEAR IDLER 1
CM29 645 033 6102 PLATE SPRING
CM30 645 033 6287 BEVEL GEAR 3
CM31 645 033 6225 PULLEY C
CM32 645 033 6034 ASSY,CLAMPER
CM33 645 033 6140 ARM SLIDER R
CM34 645 033 6157 ARM SLIDER L
CM35 645 033 6430 SLIDER 1
CM36 645 033 5969 ASSY,SLIDER 2,FWD/RVS
CM37 645 033 6980 ARM STOPPER A2
CM38 645 033 6416 ARM STOPPER B
CD BASE MECHANISM (CD213CCM-SNSH . . . Only Initial)
REF.NO. PART NO. DESCRIPTION
PM01 645 033 6751 ASSY,MOTOR CHASSIS,BASE
PM01-1 645 033 6812 GEAR B RP,SLED GEAR
PM02 645 033 6744 ASSY,MOTOR GEAR,SLED
PM03 645 033 6805 SLED SHAFT,PICK RAIL
PM04 645 033 6799 GEAR A S,PICK DRIVE GEAR
PM05 645 033 6829 SCREW+P2*3,SLED MOTOR FIX
PM06 645 033 6775 LEAF SWITCH,LIMIT SWITCH
PM07 645 033 6782 MOTOR 6P S PWB
PM08 645 033 6768 CONNECTOR PIN 6P
PM09 614 303 5626 PICK UP
REF.NO. PART NO. DESCRIPTION
CM39 645 033 6263 GEAR IDLER A2
CM40 645 033 6218 GEAR IDLER C
CM41 645 033 6447 LEVER
CM43 645 033 6454 LIFTER,CARRIGE LIFT UP
CM44 645 033 5778 BELT
CM45 645 033 5785 BELT
CM46 645 033 7048 SPRING
CM47 645 033 6393 PULLEY A
CM48 645 033 6003 ASSY,MOTOR CARRIGE
CM49 645 033 6010 ASSY,MOTOR DRAWER
CM50 645 033 5723 SPRING
CM51 614 303 7545 SPRING
CM52 645 033 5747 SPRING
CM60 645 033 5648 WASHER
CM61 645 033 5594 SCREW
CM62 645 033 7031 SCREW
CM63 645 033 5563 SCREW
CM64 645 033 5631 WASHER
CM65 645 033 5570 SCREW
CM66 645 033 5600 SCREW
CM67 645 033 5617 SCREW

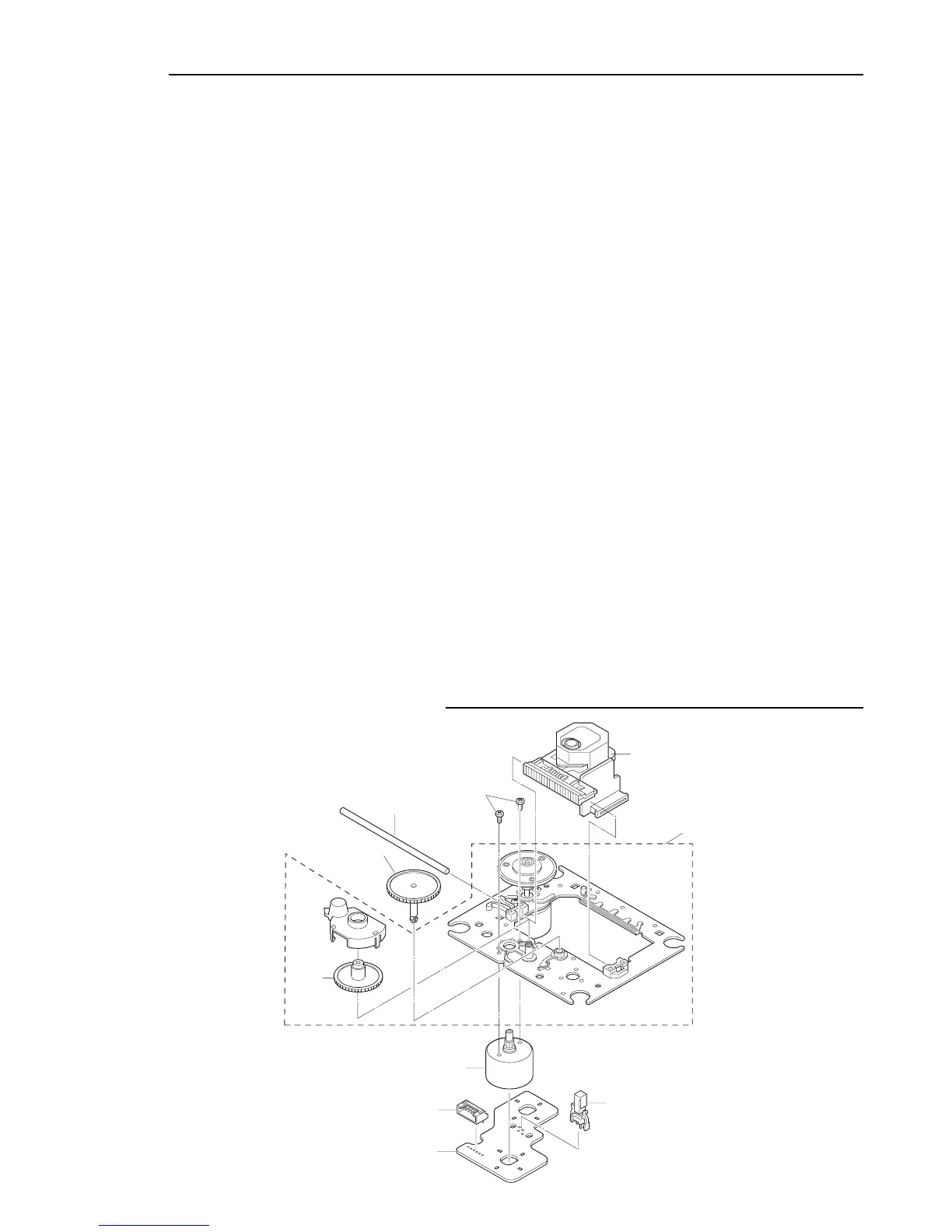

EXPLODED VIEW (CD BASE MECHANISM)
CD CHANGER MECHANISM (PM-CDC10TP-SH . . . Only Initial)
PM01
PM07
PM08
PM02
PM06
PM01-1
PM04
PM03
PM05
PM09
