Sanyo DC-X5C - Exploded View (Tape Mechanism)

- 51 -

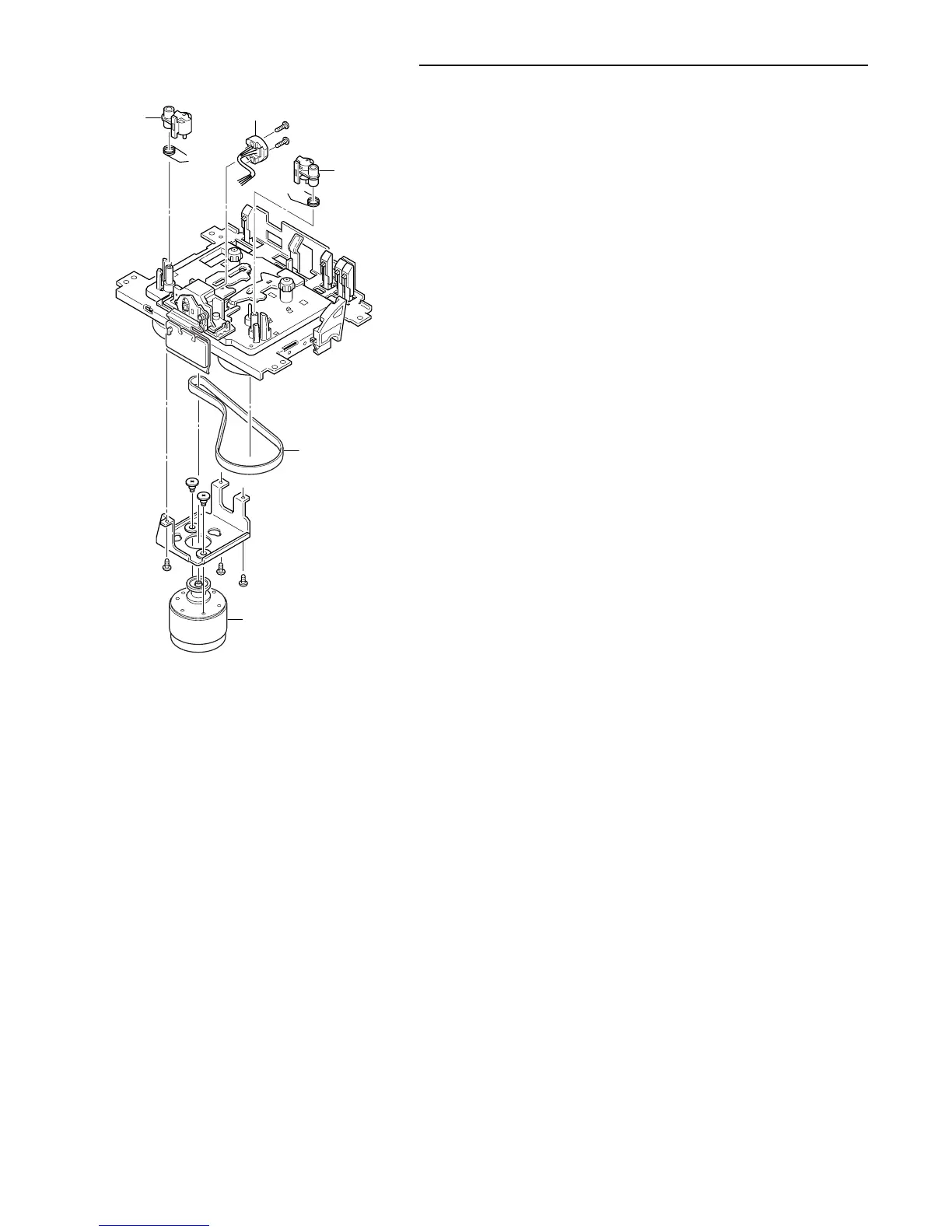

EXPLODED VIEW (TAPE MECHANISM)
TM03
TM05
TM04
TM02
TM01
TAPE MECHANISM (TM-RD007MEC-SH)
REF.NO. PART NO. DESCRIPTION
614 302 7898 ASSY, MECHA, TM-RD007MEC-SH
TM01 645 033 3347 HEAD,R/P AUDIO
TM03 645 028 0030 ASSY,PINCH-ARM
TM02 645 028 0542 ASSY,PINCH-ARM
TM05 614 304 5564 ASSY,MOTOR
TM04 645 024 6142 MAIN-BELT
