Sanyo DC-X5C - Schematic Diagram (CD)

- 43 -- 42 -
PRODUCT SAFETY NOTICE
Each precaution in this manual should be followed
during servicing. Components identified with the IEC
symbol
!
!!
in the parts list and the schematic diagram
designated components in which safety can be of
special significance. When replacing a component
identified by
!
!!
, use only the replacement parts
designated, or parts with the same ratings of
resistance, wattage or voltage that are designated
in the parts list in this manual. Leakage-current or
resistance measurements must be made to
determine that exposed parts are acceptably
insulated from the supply circuit before returning the
product to the customer.

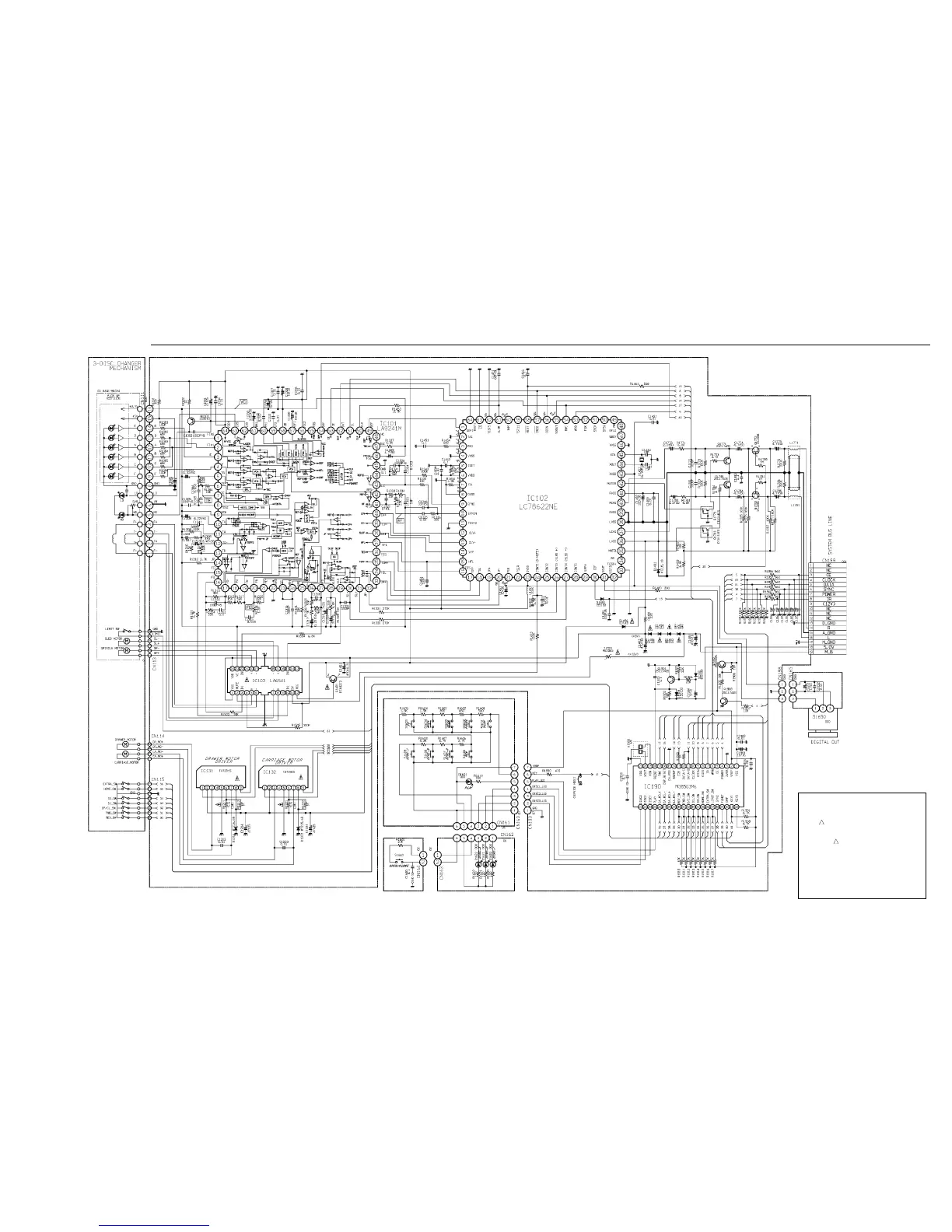

SCHEMATIC DIAGRAM (CD)
This is a basic schematic diagram.
