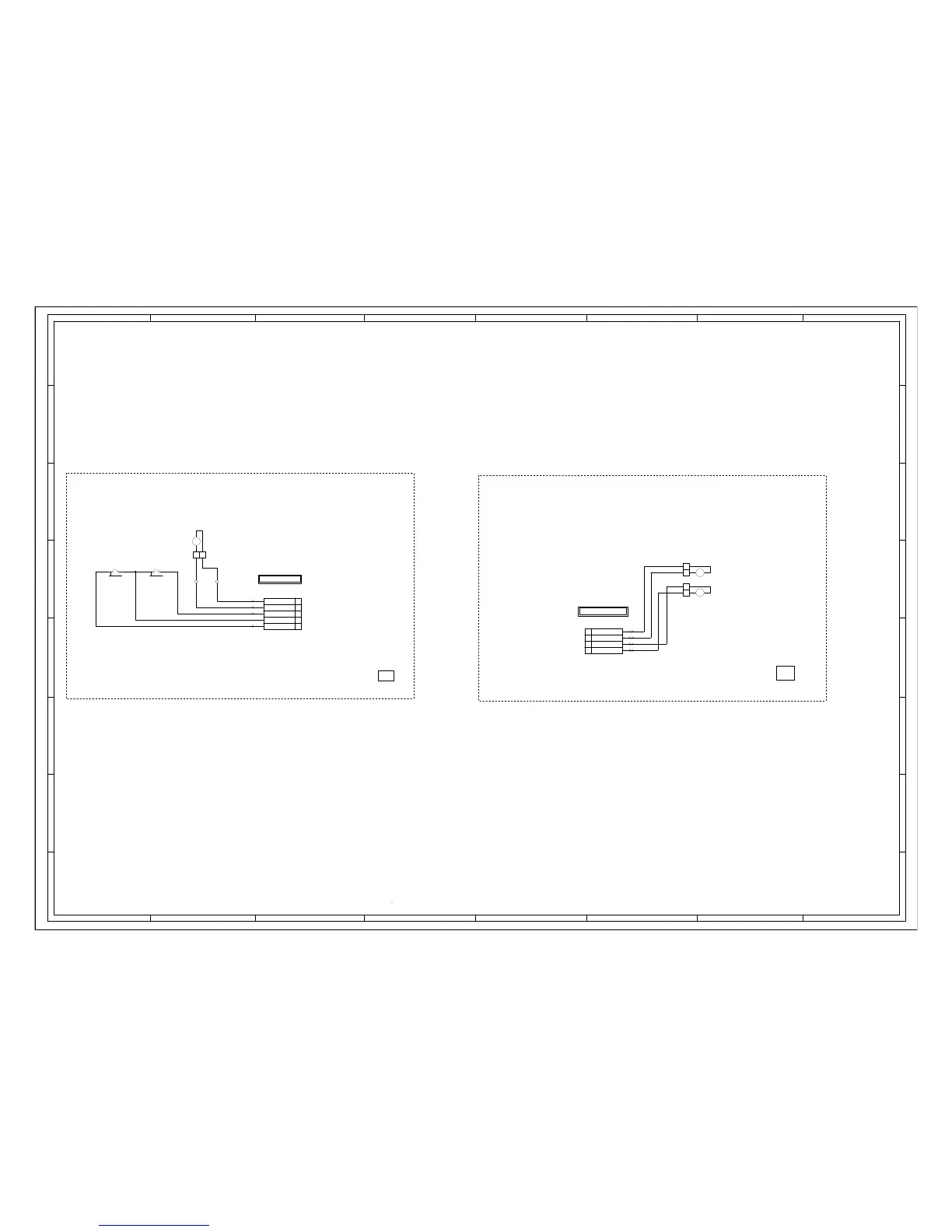

Sanyo DP32671 - LOADING MOTOR SCHEMATIC DIAGRAM; Loading Motor Control Schematic

ABC D E F GH
ABC D E F GH
2
1
3
4
5
6
7
8
2
1
3
4
5
6
7
8
SW001
ESE31R11T
SW
SW002
ESE31R11T
SW
M
2 1
M2603
DZ-300CG
LOADING MOTOR
M
2
1
M2602
JQ24-35H390
SPINDLE MOTOR
M
2
1
M2601
JQ24-35H440
FEED MOTOR
CD2301
H01766-A
1
2
3
4
CD2302
FFC1005075040250800T8-B00
1
2
3
4
5
JG001
LD+
JG002
LD-
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
DURING PLAYBACK.
MEASURED WITH THE DIGITAL TESTER
NOTE:THE DC VOLTAGE EACH PART WAS
G-42G-41
FEK009
FEK008
FROM/TO MOTOR DRIVE
(CP2302)
LD+
LD-
SW 1 (CLOSE)
GND(D)
SW 2 (OPEN)
SP1-
SP1+
SLD+
SLD-
FROM/TO MOTOR DRIVE
(CP2305)
PCB630
PCB610
(LOADING MOTOR PCB)
(PCB)
LOADING MOTOR SCHEMATIC DIAGRAM
