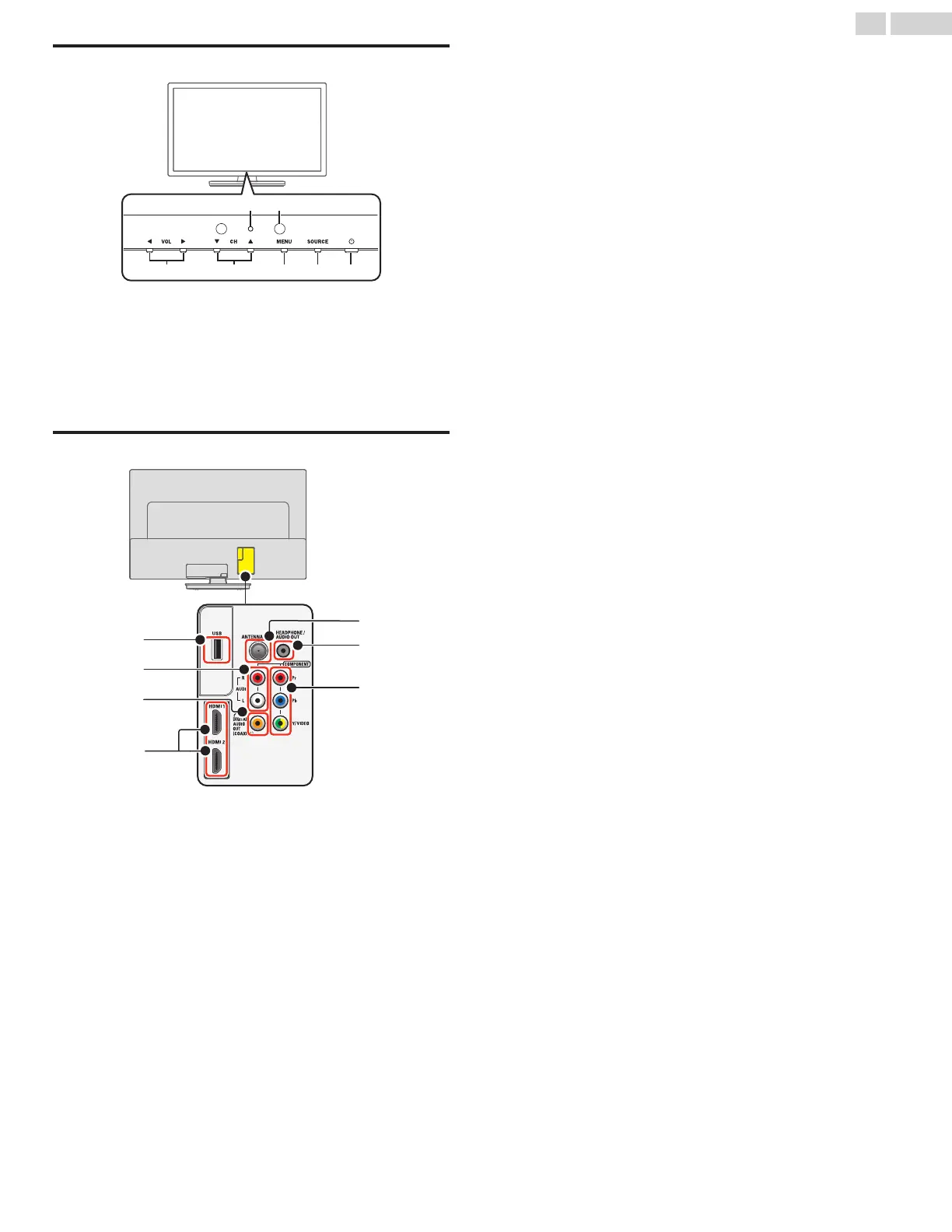

Control panel
abcde
gf
a
V
OL J / K
Adjusts the volume.
VOL J : Volume down
VOL K : Volume up
In the menu screen, moves the cursor left ( J ) / right ( K ).
b
CH H / I
Selects a channel in the memorized channel ring (low to high or high
to low).
In the menu screen, moves the cursor up ( H ) / down ( I ).
c
MENU
Opens the main On-screen menu.
d
SOURCE
Selects connected devices.
e
B (POWER / STANDBY)
Turns the TV on from standby or off to standby mode.
f
Remote control sensor
Receives IR signal from remote control.
Do not block this remote control sensor window to allow proper
operation.
g
Power on / Standby indicator
(On : no light, Standby : red light)
Terminals
m
n
l
h
j
i
k
h
U
SB terminal
Data input from USB memory stick only.
Do not connect any device to this terminal such as; digital camera,
keyboard, mouse, etc.
i
Analog audio (L/R) input jacks
Connect analog audio signals from;
●
HDMI-DVI / Analog audio (L/R) jacks signal
●
Component video / Analog audio (L/R) jacks signal
●
Composite video / Analog audio (L/R) jacks signal
●
PC connection / Analog audio (L/R) jacks signal from stereo mini 3.
5mm plug audio cable on PC.
j
Digital audio output jack
Digital audio (S/PDIF) output to home theaters and other digital audio
systems.
k
HDMI input jack(s)
Digital audio and video input from high-definition digital devices such
as DVD / Blu-ray Disc™ players, cable or set-top boxes and PC’s.
l
75 ohm Cable / Antenna connection
Signal input from an antenna, cable or set-top boxes.
m
Headphone audio output jack
Headphone 3.5mm stereo jack for personal listening.
n
Component (Y/Pb/Pr) / Composite video (VIDEO) input jack(s) for
VIDEO
Composite video input (VIDEO) jack is a shared jack with component
video input (Y) jack. Green / Yellow color orientation depends on
model.
10 .English
Continued on next page.
