Sanyo FW32D08F User Manual

No included cables are used with these connections:
●
P
lease purchase the necessary cables at your local store.
Before you connect the AC power cord:
Be sure other devices are connected properly before plugging in the AC
power cord.

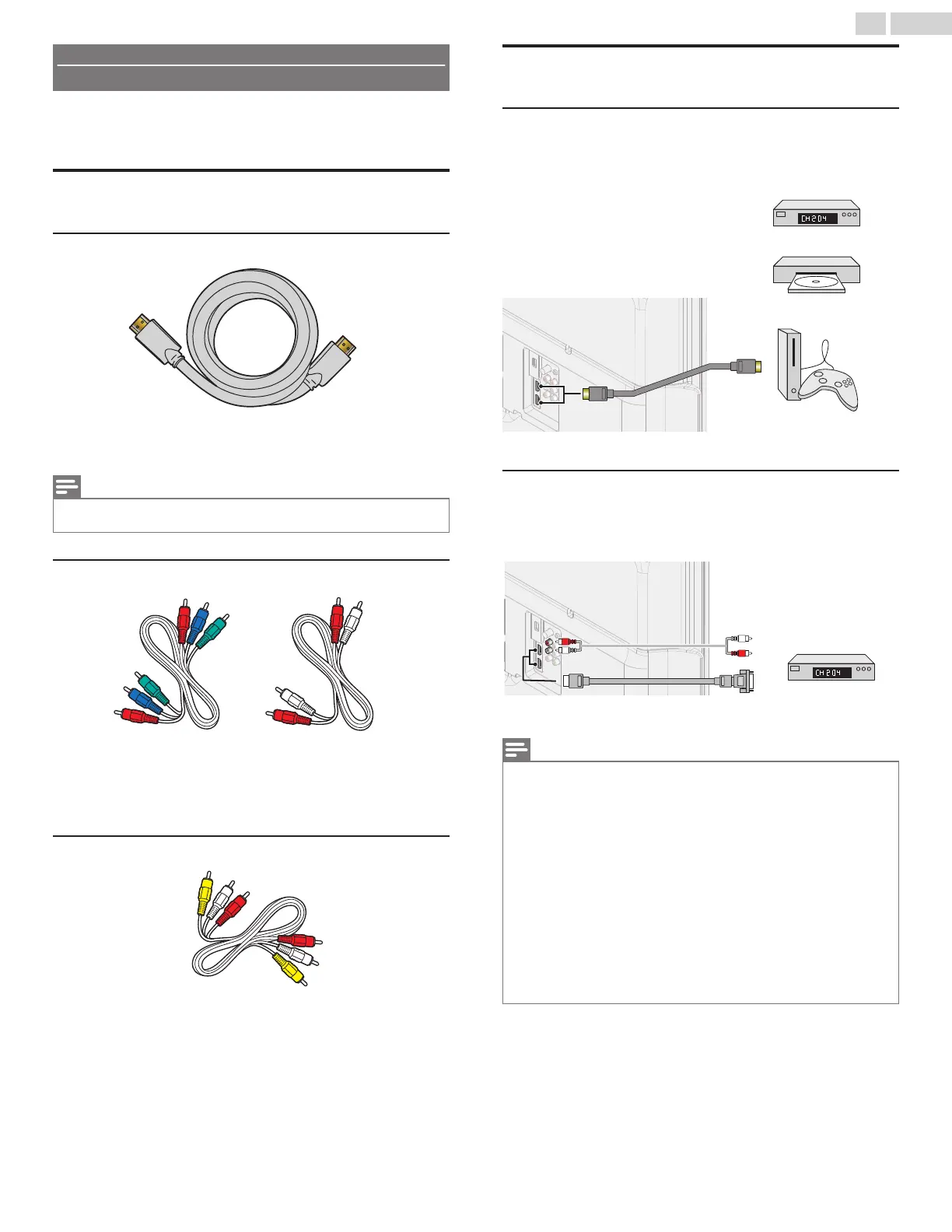

Selecting your connection quality
HDMI - Highest quality
Supports high-definition digital signals and gives highest picture and
s
ound quality. Video and audio signals are combined in one cable. You
must use HDMI for full high-definition video and to enable HDMI-CEC.
Note(s)
●
S
ANYO HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP is a form
of digital rights management that protects high-definition content in Blu-ray Disc™ or DVDs.
Component (Y Pb Pr) - High quality
Supports high-definition analog signals but gives lower picture quality
t
han HDMI. Component (Y/Pb/Pr) video cables combine red / green / blue
video cables with red / white audio (L/R) cables. Match the cable colors
when you connect to the TV.
Composite - Basic quality
For analog connections. Composite video / Audio analog cable usually
c
ombine a yellow video cable with red / white audio (L/R) cables. With
this unit, yellow cable must be connected to Y (green) jack on the
component video input jacks.
Connecting your devices
HDMI digital connection
HDMI connection offers the highest picture quality.
H
DMI (High-Definition Multimedia Interface) transports high-definition
digital video and multi-channel digital audio through a single cable.
HD game console
or
Blu-ray Disc™ / DVD player
or
Set-top box
HDMI cable
HDMI cable
HDMI cable
OUT
IN
IN
IN
HDMI-DVI connection
This unit can be connected to a device that has a DVI terminal.
U
se an HDMI-DVI conversion cable for this connection and it requires
audio cable for analog audio signal as well.
Audio (L/R)
cables
Audio (L/R)
cables
Audio (L/R)
cables
OUT
IN
IN
IN
OUT
HDMI-DVI
conversion cable
HDMI-DVI
conversion cable
HDMI-DVI
conversion cable
IN
IN
IN
Cable receiver or
set-top box with
the DVI output jack
Note(s)
●
U
se an HDMI cable with the HDMI logo (a certified HDMI cable). High speed HDMI cable
is recommended for the better compatibility.
For HDMI connection
●
The unit accepts 480i / 480p / 720p / 1080i, 1080p 24/30/60Hz of video signals,
32kHz / 44.1kHz and 48kHz of audio signals.
●
This unit accepts a 5.1 channel audio signal (Dolby Digital) and 2 channel audio signal
(LPCM).
●
If audio source is 7.1 channel audio signal (Dolby Digital) and user selects Multichannel at
Digital output format, then the digital audio output will be 5.1 channel audio signal (Dolby
Digital).
●
This unit accepts only signals in compliance with EIA861.
For HDMI-DVI connection
●
The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.
●
HDMI-DVI connection requires separate audio connections as well and the audio signals are
output as analog (L/R) audio.
●
DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.
12 .English
Continued on next page.
