d) Set Menu Language to English
e) Set Power on Mode to Off
7. Software instruction
Table4 software instruction
No. Code No. Type Function Burn before
paste
Method
N102
5272532003 or
5272532004 or
5272532005
EN25B32-100HIP or
W25X32VSSIG-E or
MX25L3205DM2C-12G
FLASH
Yes Written with instrument
like ALL11, write-protect,
refer to note.
N104 5272404002 AT24C04 HDCP KEY Yes
N202 5272402002 AT24C02 HDMI EDID Yes
N206 5272402002 AT24C02 VGA EDID Yes
Written with instrument
like ALL11
Note: write-protect setting: enter ALL-100 interface, select Config and press “config setting”, set
Protect to “All Protect”, select “config” when burning. The “write-protect” will be set again when
ALL-100 program restart.
Method of software upgrading
Install FTC100103(MSTAR) before writing.
Using Mstar writing-tool on line.

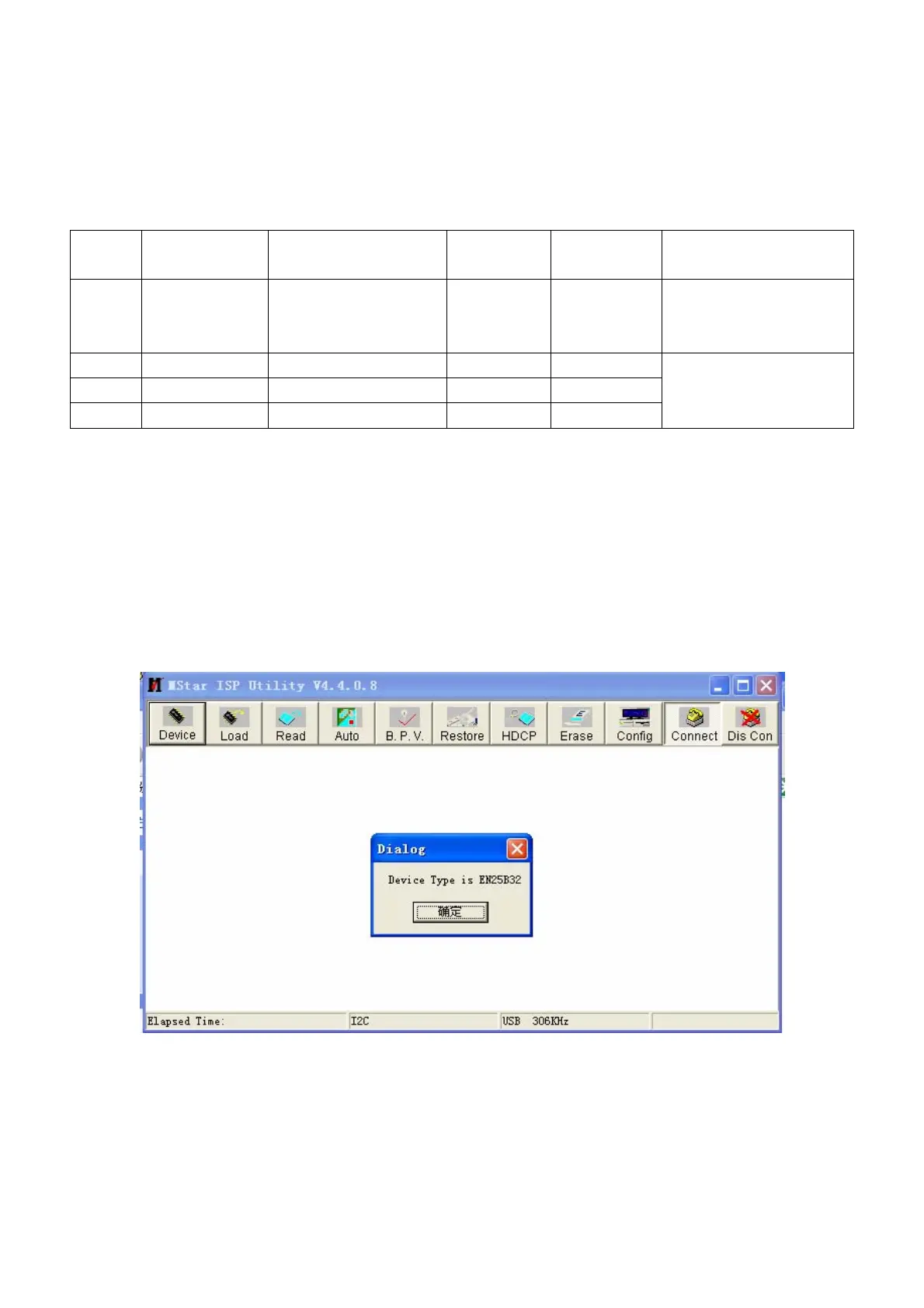

1. Click Connect menu, if it displays DEVICE EN25B32 as shown in fig1, the connection is
success, if displays “can’t Entry ISP Mode” shown in fig2, it needs connect again.
Fig1
8
