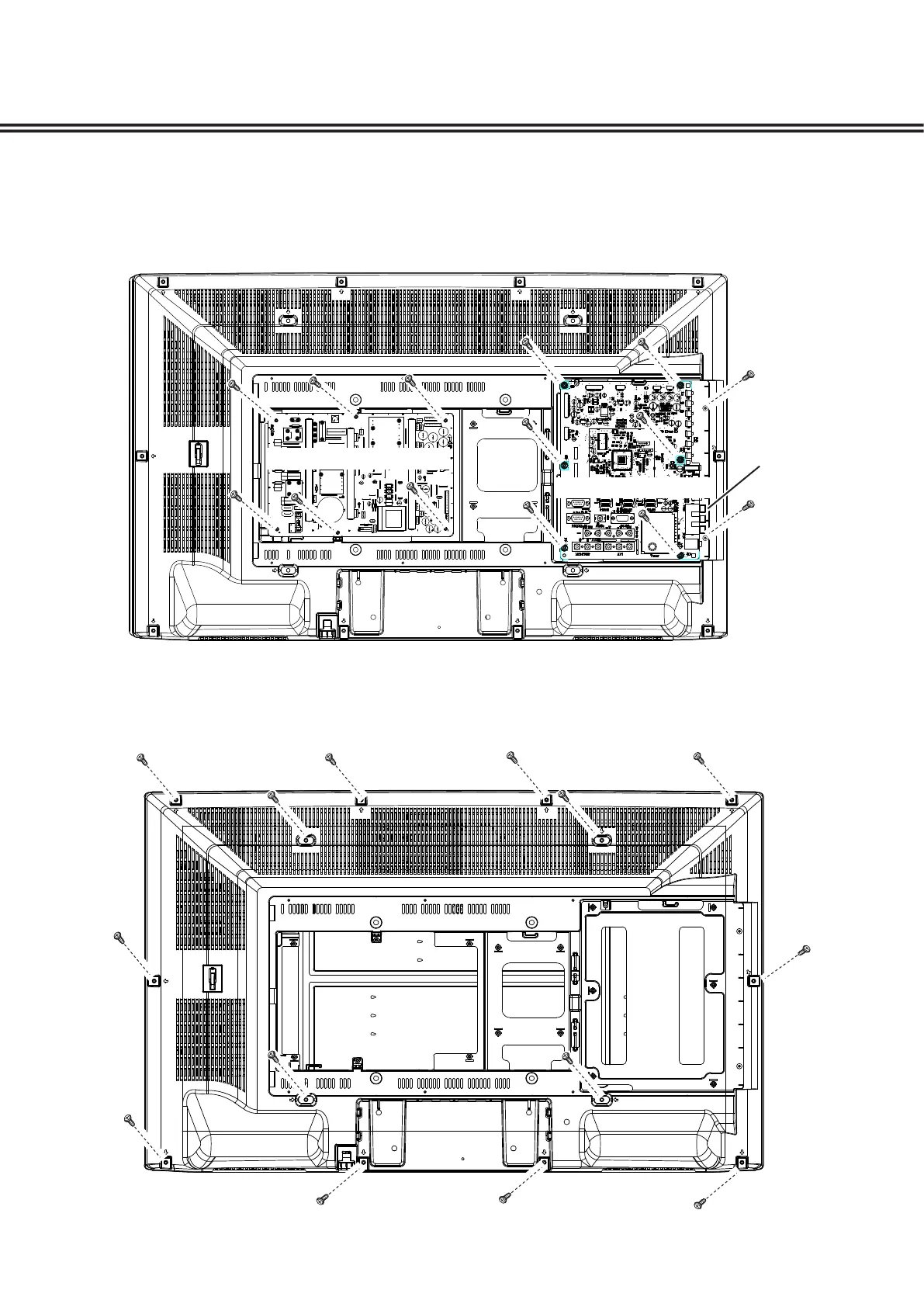

3. ASSY, PWB, POWER Board , ASSY, PWB, MAIN Board and
TERMINAL BASE Removal
1. Remove 6 screws and take ASSY, PWB, POWER off.
2. Remove 8 screws and take ASSY, PWB, MAIN and TERMINAL BASE off .
ASSY, PWB, POWER
ASSY, PWB, MAIN
4. CABINET BACK Removal
1. Remove 14 screws and take CABINET BACK off.
