9

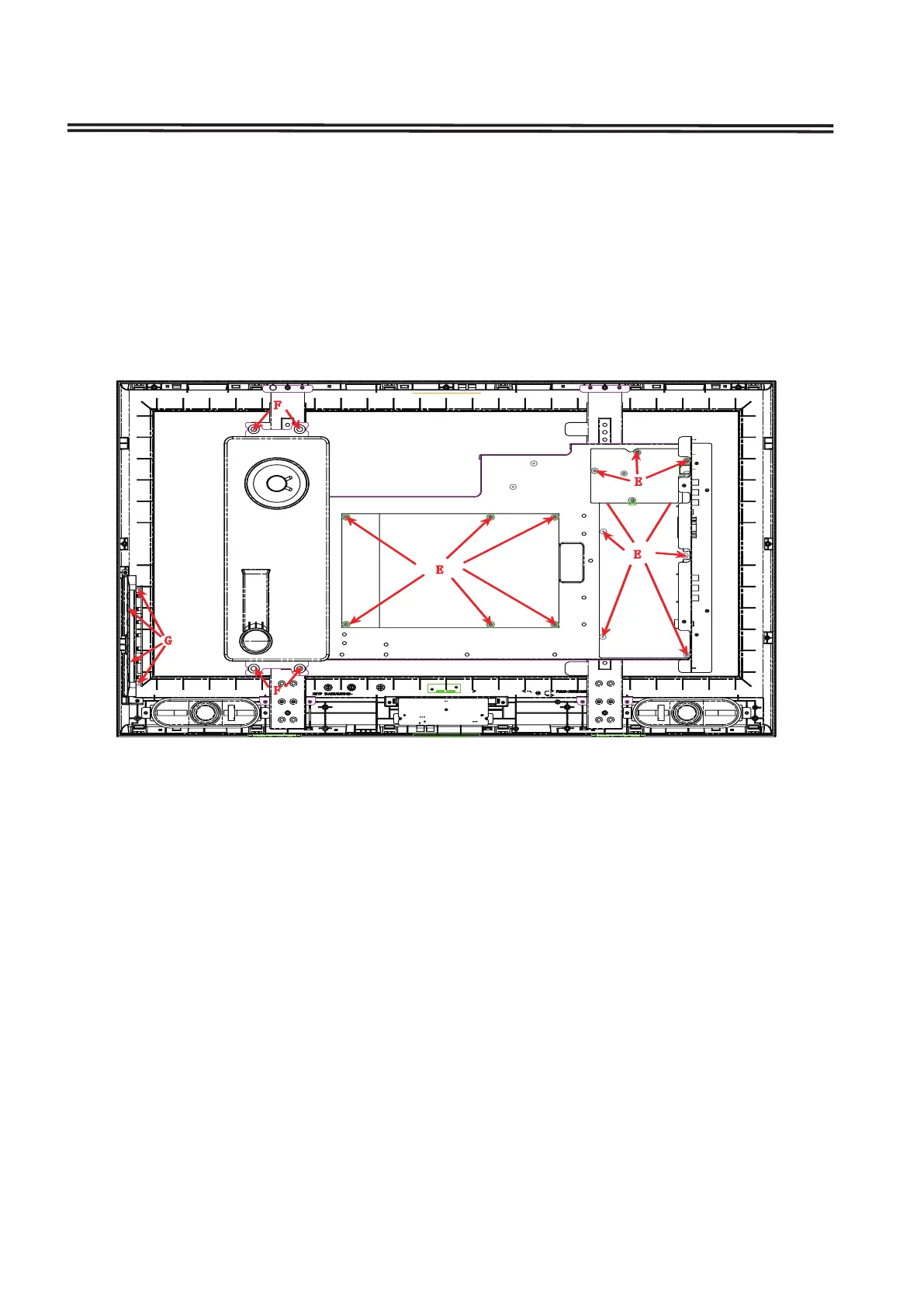

Mechanical Disassembly
(
(
USB
PCB2
PCB1
(
PCB3
)
)
*
（二）
Chassis and
T
erminal Board Removal
1. Remove screws E (6 pcs), take PCB1 board off.
2. Remove Screw E (3 pcs)
，
take USB board off.
3. Remove screws F (4 pcs), take WOOFER off.
4. Remove Screw G (3 pcs)
，
take PCB3 board off.
8
10
Table of Contents
Table of Contents
1
Safety Notice
2
Specifications
3
Chassis Block Diagrams
4
CPU Block Diagrams
5
On-Screen Service Menu System
6
Service Adjustments
7
Mechanical Disassembly
8
Chassis Electrical Parts List
11
Schematic Diagram
34
