Sanyo LCD-40XR11F User Manual

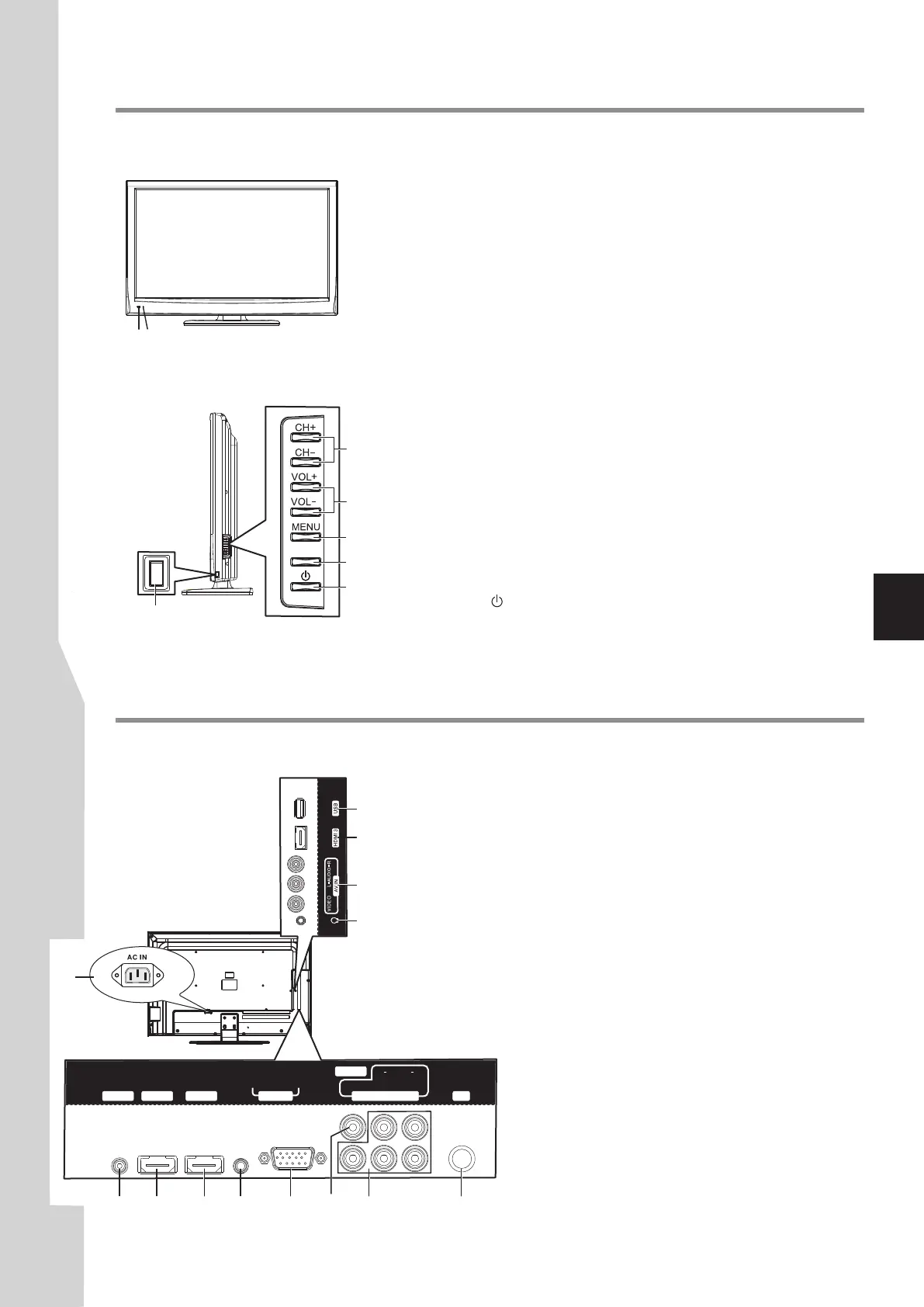

Identification of Controls
Main Unit (back view)
1. USB port: Connect a USB device to this port.
2. HDMI3: Connect an HDMI device to this jack.
3. AV INPUT: Connect an AV device to these jacks.
4. Headphone: Connect headphones to this jack.
5. RS-232: For service only. Do not use.
6. HDMI1(ARC): Connect an HDMI device to this jack.
7. HDMI2: Connect an HDMI device to this jack.
8. MUSIC/AUDIO: Connect a MP3 player to this jack. Also
served as PC IN audio input.
9. PC IN D-SUB: Connect a computer to this jack.
10. S/PDIF: Connect a digital sound system to this jack.
11. COMPONENT IN: Connect a component video
device to these jacks.
12. RF: Connect an antenna or cable TV to this jack.
13. AC IN: Plug the AC cord into this jack and into a
power outlet.
7
13
PC IN
COMPONENT IN
PB
PR
D-Sub
Y
AUDIO
L R
HDMI 2HDMI 1
RS-232
S/PDIF
RF
ARC
MUSIC/AUDIO
1
2
3
4
5
6 7 9 11 128 10
Main Unit (front/side view)
1. Remote sensor
2. Power indicator
Lights blue when in operating mode.
Lights red when in standby mode.
3. Power Switch
4. CH+
Press these two buttons to directly change the TV channel;
In menu operations, these buttons serve as up/down buttons.
5. VOL+
Press the VOL+ or VOL– button to directly increase or decrease
the sound volume level;
In menu operations, these buttons serve as right/left buttons.
6. MENU
Press this button to access the main menu screen.
7. INPUT
To access Input Source menu
8. POWER
Receives signals from the remote control. Do not block.
/-
/–
Press this button to turn the unit ON from STANDBY mode.
Press it again to turn the set back to STANDBY.
1 2
4
INPUT
5
6
7
8
3

Sanyo LCD-40XR11F Specifications

General

Brand	Sanyo
Model	LCD-40XR11F
Category	LCD TV
Language	English
