(3) Pull-up test
MDF-U500VX SV-80㷄䇭Pull-up test
-80
-70
-60
-50
-40
-30
-20
-10
0
10
20
30
0 10203040506070
Time䋨hr䋩
Temperature
䋨㷄䋩
L EVA OUT
L EVA IN
Load-a
Load-b
Load-c
Load-d

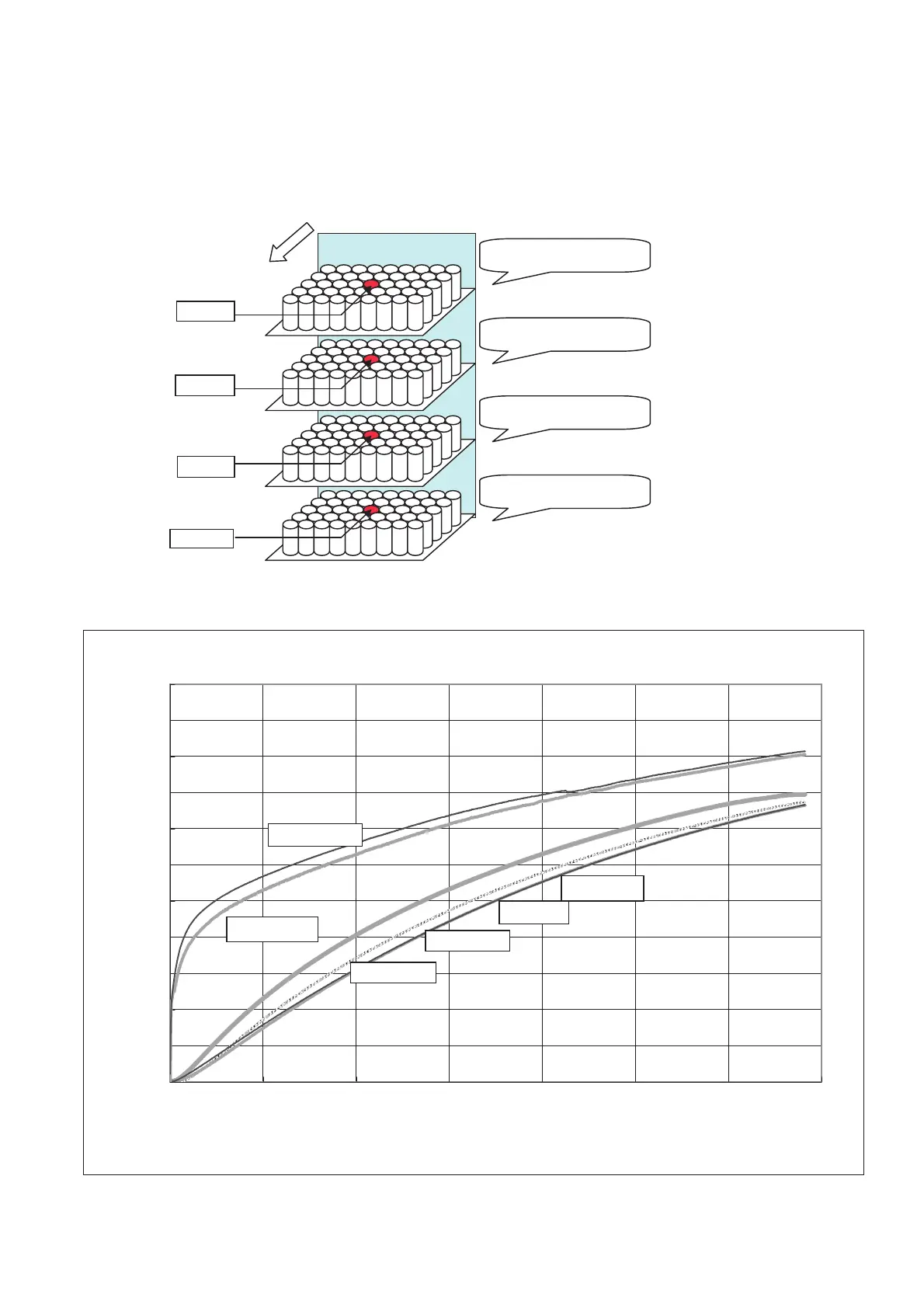

Condition: Water bottle(500ml) x 180pcs.䋨90L in total䋩
Measuring points: Load-a, b, c, d, L EVA IN, L EVA OUT
Ambient temp.: 30㷄
Front
Load-d
Load-c
Load-b
Load-a
500ml x 45 bottles
500ml x 45 bottles
500ml x 45 bottles
500ml x 45 bottles
