Drain hose
Stopper
Drain cramp
Drain cramp
Turn the hose
Drain hose
Stopper

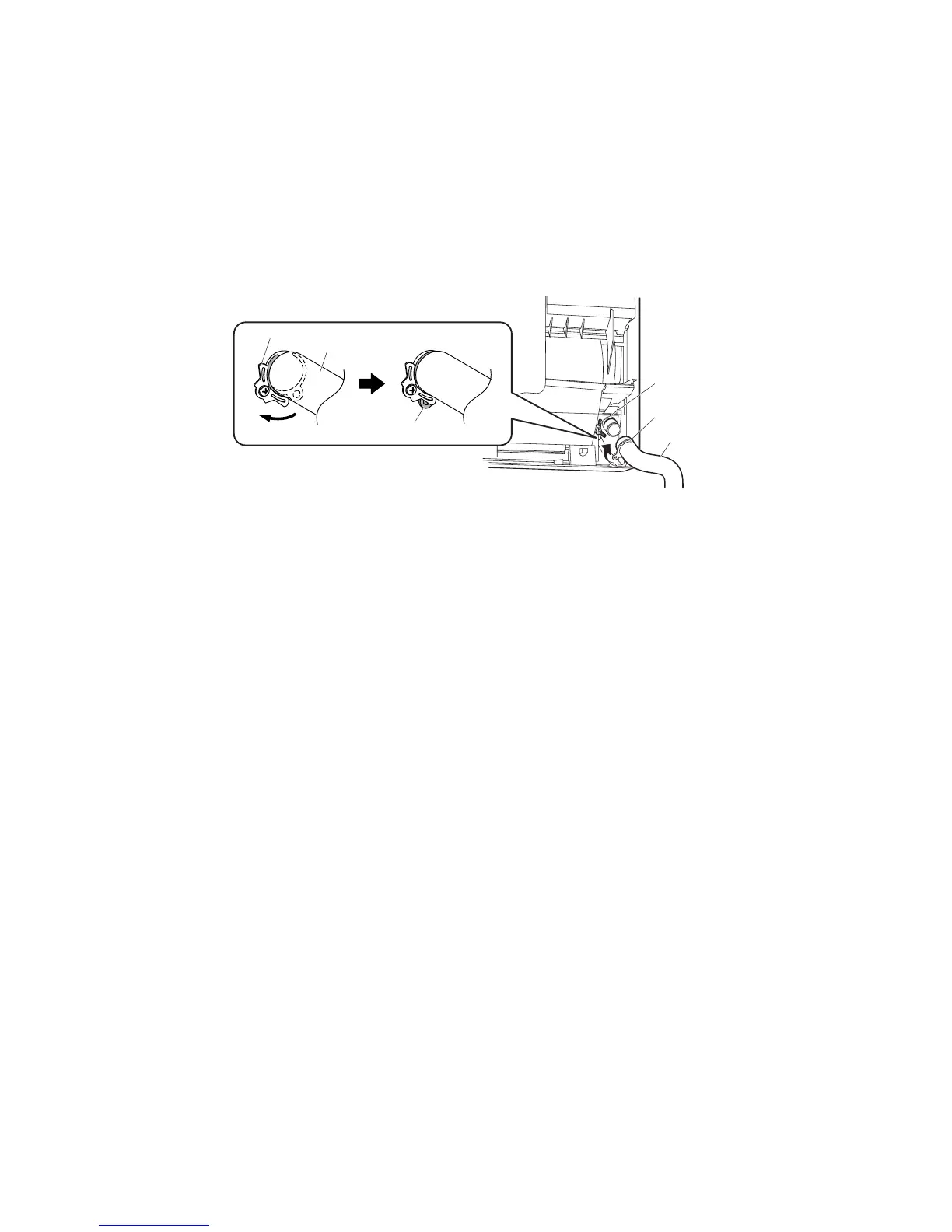

8-2. Removing and Mounting the Drain Hose
(1) Before removing the drain hose, remove the cramp from the stopper to check the location of the drain cramp at
the end of the hose, and pull the hose out while turning it.
(2) To mount the drain hose, insert the hose all the way into the outlet of the drain pan with the drain cramp face
down. Then put it in place so that the drain cramp is placed beneath the stopper.
After mounting it, be sure to check that the drain hose is firmly mounted.
