13
4. PARTS LIST
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
ACCESSORIES & PACKING MATERIALS
9170 613 197 5941 INSTRUCTION MANUAL
9205 645 045 3533 CORD,POWER-1.8MK,
TLS-1960P-UK,TLS-9924P-UK
9205 645 009 0400 CORD,POWER-1.875MK,TLS-1960P,TLS-9924P
OR 613 095 0550 CORD,POWER,TLS-1960P,TLS-9924P
9211 613 133 1907 HOLDER (CORD,POWER)
9001 613 197 3817 CARTON CASE,TLS-1960P ONLY
9001 613 197 8911 CARTON CASE,TLS-9924P ONLY
9001 613 198 7708 CARTON CASE,TLS-1960P-UK ONLY
9001 613 198 7715 CARTON CASE,TLS-9924P-UK ONLY
9002 613 196 6680 CUSHION, FRONT
9003 613 196 6697 CUSHION, BACK
9010 645 044 2797 POLY SHEET-0980X0570*NC
CABINET & CHASSIS PARTS
1 411 137 0007 SCR L-TPG BIN 3X10
2 411 001 1901 SCR S-TPG BIN 3X6
3 411 021 7907 SCR S-TPG BIN 4X12
4 411 021 3701 SCR S-TPG BIN 3X10
5 412 028 9406 SPECIAL SCREW
6 412 052 5108 SPECIAL SCREW-2.6X12
7 613 059 4099 SPRING PLATE
8 613 197 4852 TERMINAL(HB),TLS-9924P,TLS-9924P-UK
9 613 197 5477 COMPL PWB,CP-1-A,TLS-1960P,TLS-1960P-UK
9 613 198 0532 COMPL PWB,CP-1-A,TLS-9924P,TLS-9924P-UK
10 613 196 2866 SPACER,CAM OPT (80400)
11 613 197 5569 ASSY,CABINET FRONT SJC
12 613 197 5583 DOOR CASSETTE,TLS-1960P,TLS-1960P-UK
12 613 198 0822 DOOR CASSETTE,TLS-9924P,TLS-9924P-UK
13 613 188 1617 SPRING
14 613 196 9308 KNOB
15 613 102 0207 HOLDER
16 613 196 9292 KNOB SHUTTLE
17 613 199 0579 COMPL,COVER BOTTOM
18 613 191 7798 COVER TOP
19 613 198 3205 COMPL PWB,PW-1,TLS-9924P,TLS-9924P-UK
20 613 168 2801 HOLDER
21 613 121 1001 STAND,FELT
22 613 172 3894 PAD
23 613 196 5775 COMPL PWB,TM-2
24 613 197 4913 COMPL PWB,TM-1,TLS-1960P,TLS-1960P-UK
24 613 198 0440 COMPL PWB,TM-1,TLS-9924P,TLS-9924P-UK
25 613 198 0952 DEC BACK,TLS-9924P,TLS-9924P-UK
26 613 187 8464 SPRING,PLATE
27 613 197 5668 TERMINAL(HB),TLS-1960P,TLS-1960P-UK
28 613 197 5613 DEC BACK(+DC,MIC),TLS-1960P,TLS-1960P-UK
29 613 196 5782 COMPL PWB,TB-1,TLS-1960P,TLS-1960P-UK
30 613 197 5699 COMPL PWB,PW-1,TLS-1960P,TLS-1960P-UK
31 411 021 6405 SCR S-TPG BIN 3X8
(Included in the COMPL PWB,PW-1)
32 613 198 0587 COMPL PWB,PW-2,TLS-1960P,TLS-1960P-UK
33 613 104 2926 HOLDER, FOR.PW1
(Included in the COMPL PWB,PW-1)
34 645 023 4958 CORE,CLAMP,TLS-1960P,TLS-1960P-UK
N.S.P.:Not available as service parts

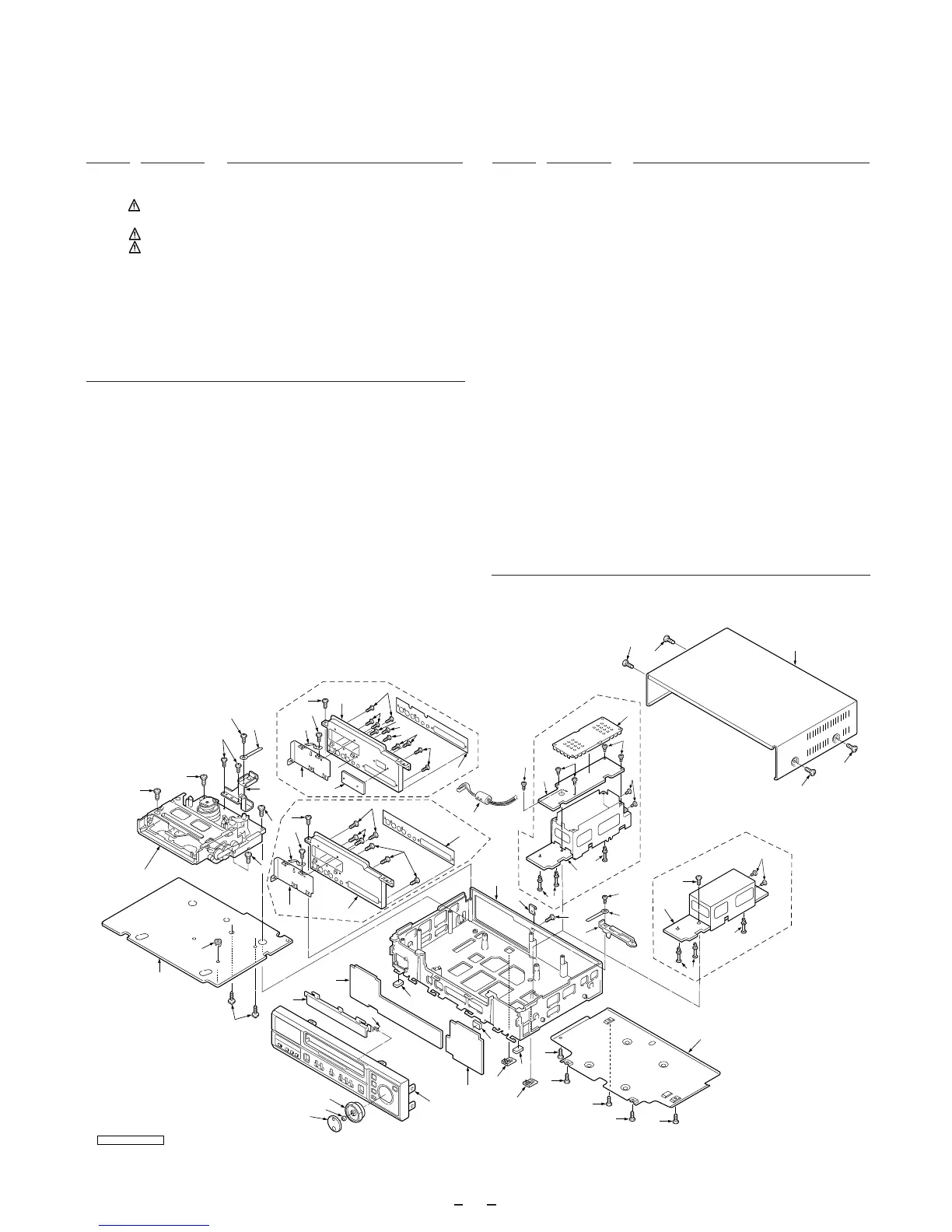

CABINET & CHASSIS PARTS
*CH-RQ4Q/EX(MS)
Mechanism
3
3
3
3
1
1
1
1
1
1
6
17
11
12
13
21
9
10
8
7
25
26
21
22
23
24
14
16
15
2
2
2
2
2
4
4
N.S.P.
N.S.P.
N.S.P.
N.S.P.
1
N.S.P.
19
1
5
5
5
5
18
2
2
2
2
4
4
4
4
N.S.P.
1
N.S.P.
1
7
27
29
28
N.S.P.
N.S.P.
33
33
30
32
31
31
31
31
20
34
33
33
Destination
TLS-1960P : TLS-1960P (Europe)
TLS-1960P-UK : TLS-1960P (U.K.)
TLS-9924P : TLS-9924P (Europe)
TLS-9924P-UK : TLS-9924P (U.K.)
To Next Page
