Sanyo TP220 - Microswitch Adjustment; Stylus Height Adjustment; Turntable Speed Adjustment

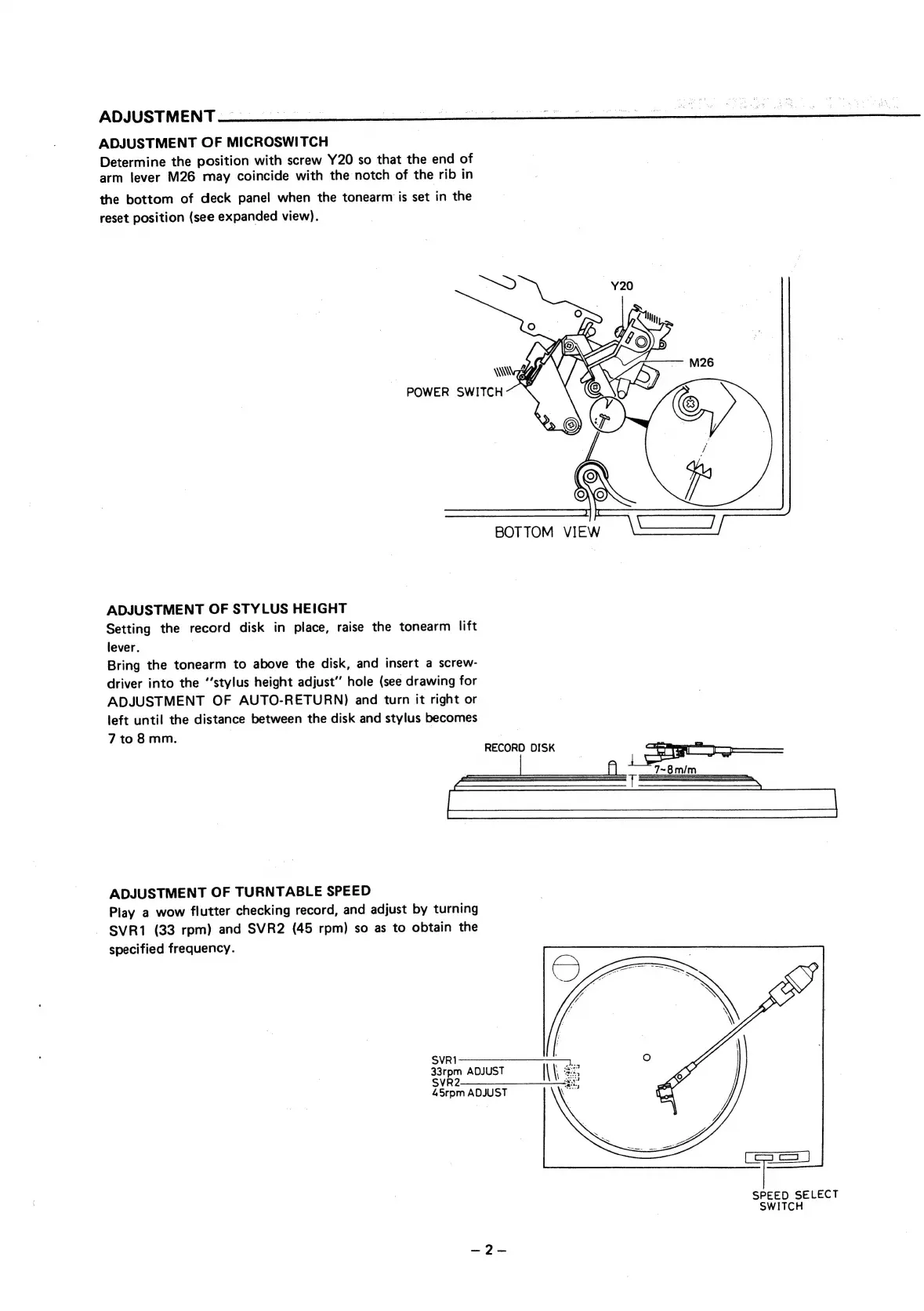

ADJUSTMENT OF MICROSWITCH
Determine
the
position
with
screw
Y20
so
that
the
end
of
arm
lever
M26
may
coincide
with
the
notch
of
the
rib
in
the
bottom
of
deck
panel
when
the
tonearm
is
set
in
the
reset
position
(see
expanded
view).
ADJUSTMENT OF STYLUS HEIGHT
Setting
the
record
disk
in
place,
raise
the
tonearm
lift
lever.
Bring
the
tonearm
to
above
the
disk,
and
insert
a
screw-
driver
into
the
‘‘stylus
height
adjust”
hole
(see
drawing
for
ADJUSTMENT
OF
AUTO-RETURN)
and
turn
it
right
or
left
until
the
distance
between
the
disk
and
stylus
becomes
7
to
8mm.
BOTTOM VIEW
RECORD
DISK
1
an
| 7~8m/m
if
ADJUSTMENT
OF
TURNTABLE
SPEED
Play
a
wow
flutter
checking
record,
and
adjust
by
turning
-
SVR1
(33
rpm)
and
SVR2
(45
rpm)
so
as
to
obtain
the
specified
frequency.
SVR1
33rpm ADJUST
SVR2
45rpm ADJUST
SPEED SELECT
SWITCH
