INSTALLATION

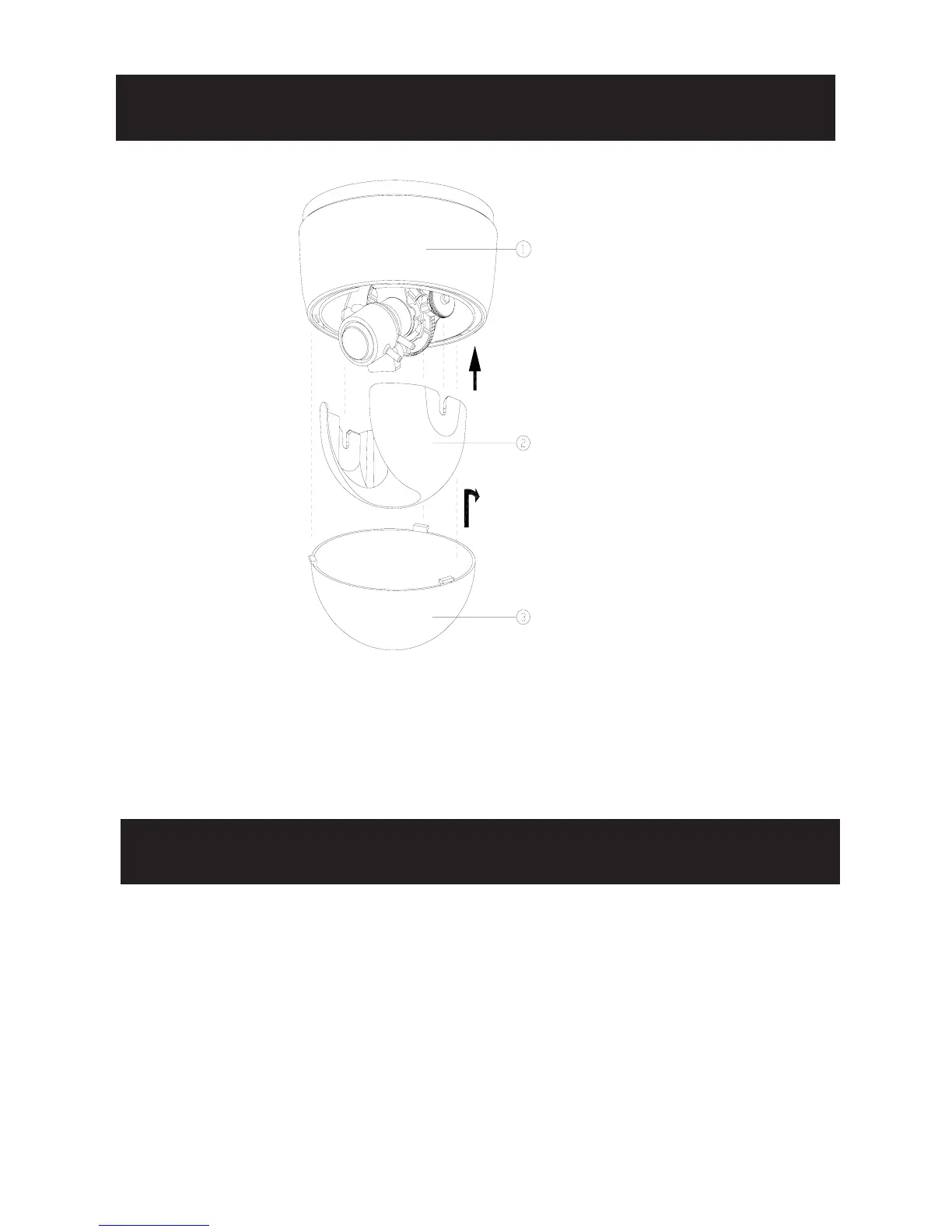

(1) DOME BODY
(2) INNER LINER
(3) DOME COVER
Fig-5
CCD CHARACTERISTIC
The following are characteristics that may be observed when using a
CCD camera. These are inherent characteristics of the CCD camera
and do not stem from any fault within the camera itself.
Vertical smear: This phenomenon occurs when viewing a very
bright object.
Patterned noise: This is a fi xed pattern which may appear over the
entire monitor screen.
Jagged picture: When viewing stripes,straight lines,or similar pat-
terns, the image on the screen may appear jagged.
■ ATTACH THE DOME COVER
1. Match the screws on the unit casing casing to the screw holes
(3 locations) on the unit casing
2. Fix the inner liner into the pan-adj screw.
3. Holding the dome casing to maintain the matched positions.
Tighten the three screws with the screwdriver, Lock the dome
casing to the unit casing.
To Next Page
