- 12 -
3-12. CCD White Point Defect Detect Adjustment
Adjustment location: Computer screen
Measuring location: CN204 pin6 (VIDEO OUT)
Measuring equipment: Monitor display
Adjustment method:
1. Shield light with a lens cap to provide dark condition.
2. Use the “
” button to be WDD in the adjustment window.
3. Click the AUTO button.
4. After completing the CCD White Defect Detect adjustment,
it comfirms that white point can not be seen on the monitor
display.

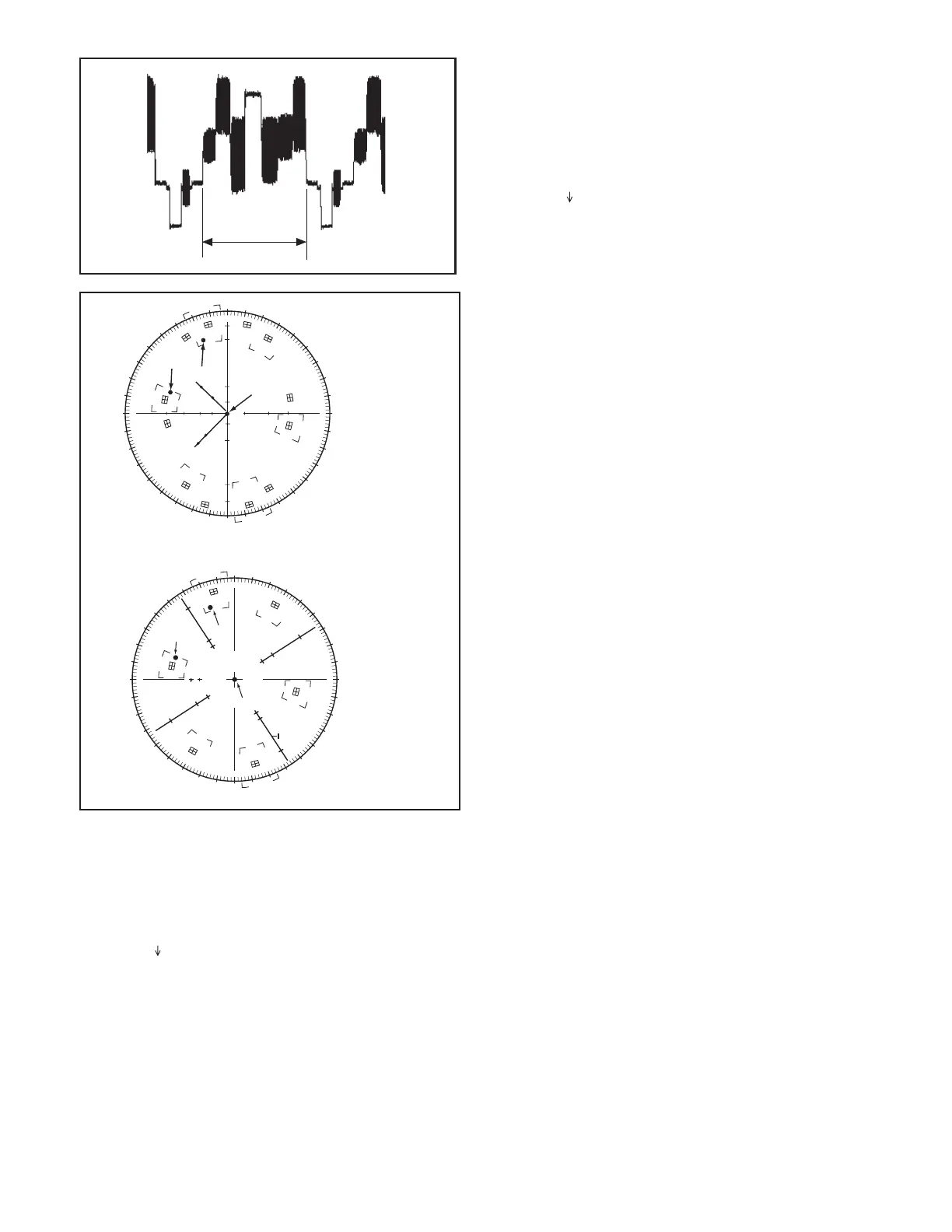

45 µsec
R
Y
L
MG
CY
G
B
Q
100%
75%
YL
R
W
VCC-MC800P
VCC-MC800
3-13. Gyro Offset Adjustment
Adjustment location: Computer screen
Measuring location: Computer screen,
CN204 pin6 (VIDEO OUT)
Measuring equipment:
Adjustment method:
1. Secure the camera at a 45° angle.
2. Use the “
” button to be GYRO OFFSET in the adjustment
window.
3. Click the AUTO button.
4. When “AUTO ADJ. NG” display, carry out the adjustment
again.
5. Click the END button.
6. Click the CLOSE button.
Note: Do not shake the camera while gyro offset is
being adjusted. There is no gyro gain adjustment.
R
YL
MG
Cy
G
B
75%
100%
cy
g
yl
mg
b
U
v
YL
R
W
To Next Page
