- 8 -
3. ADJUSTMENT
3-1. ADJUSTMENT CONDITION
1. Use the 5,100K viewer for the subject. (color temperature
: 5500 ± 100 k, luminosity : 1000 ± 100 cd/m )
2. Set the trigger signal of oscilloscope to VIDEO OUT, and
apply H sync unless specified.
3. In adjustments without direction to display charts, shield
light with a lens cap to provide dark condition.
4. Connect the video output to a video monitor with an input
impedance of 75 ohms.
3-2. TABLE FOR SERVICING TOOLS
3-3. PREPARATION
1. Install the adjustment software (VHJ-0180) in a computer
running the Windows operating system.
2. Use the adjustment tool (VHJ-0142) to connect the
camera to be adjusted to the serial port (COM1) of the
computer with RS-232C cross cable (
Inter link cross cable,
VHJ-0149), and then turn on the power for the computer .
3. Double-click the adjustment software which has been
installed into the computer.The main window will be
displayed.
4. Click “Co” in the main window menu. The setting window
will be displayed.
5. In the setting window, change the “COM” setting to
“COM1”. For a notebook computer, select “NOTE PC”.
Click “OK”. The main window will be displayed.
6. Click “BU” in the main window menu. The selection
window will be displayed.
7. In the selection window, click “SET UP”. The setup
window will be displayed.
8. In the setup window, change the “BAR CODE” setting to
“NOTHING”. Change all other values to the standard
settings (setup window illustration).
9. Click “OK” to accept the settings. The selection window
will be displayed.
10. In the selection window, click “ADJUSTMENT”. The
adjustment window will be displayed.
11. In the adjustment window, click “START”. If “Version is
different” appears, return to the setup window and enter
the version.
2
Ref. No.
Name
Part code
J-2
J-3
J-4
VHJ-0142
VHJ-0180
Adjustment jig
Inter link cross cable
VHJ-0149
J-1 VJ8-0007
Color viewer
J-5
Calibration software
J-7
VJ8-0009
Gray scale chart
Color bar chart
VJ8-0010
J-6
Collimator
VJ8-0260

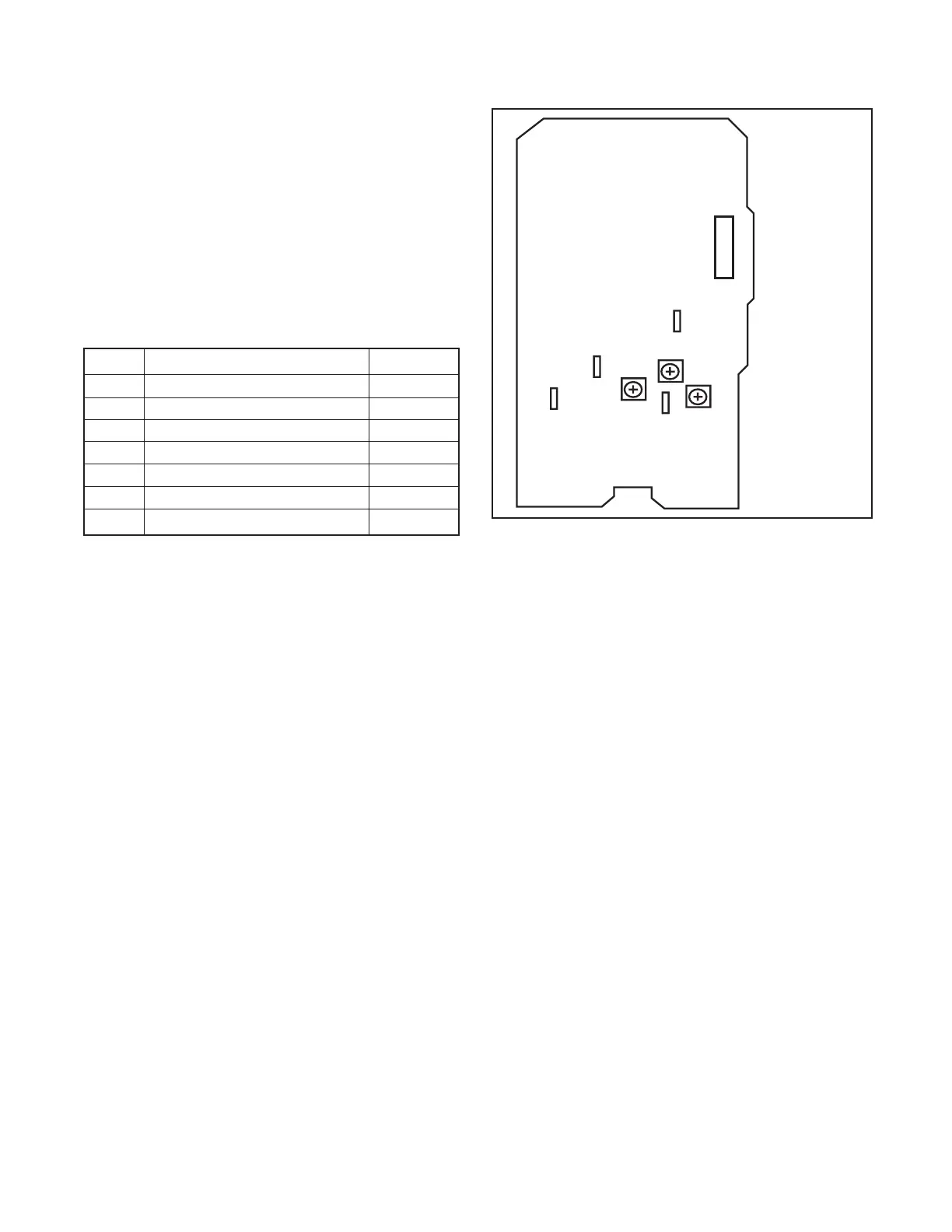

CA-2 BOARD
SIDE B
CN202
TP203
TP201
TP200
CT202
CT252
TP202
CT201
3-3-1. Adjustment parts
