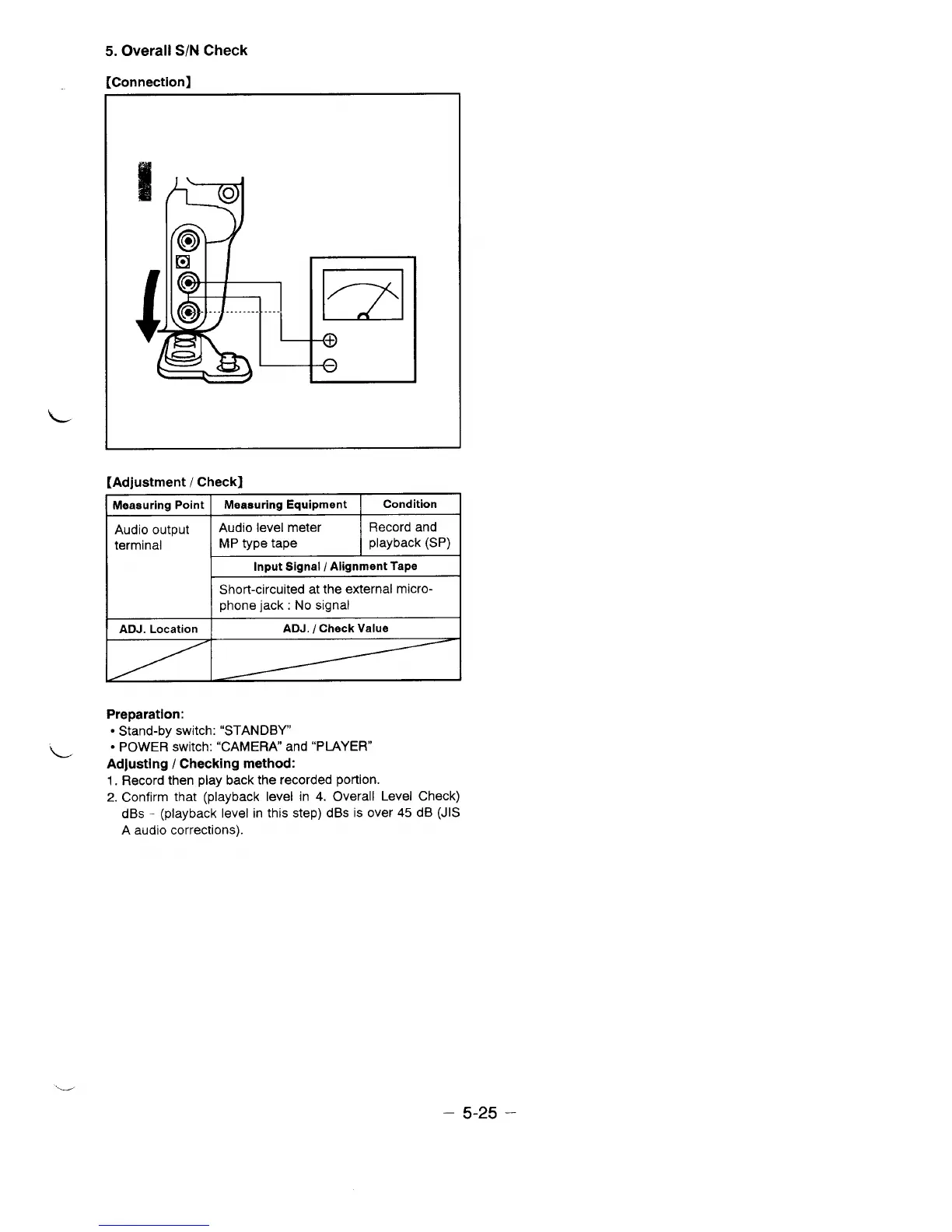

5. Overall S/N Check
[Connection]
~_—.... ——..—..-
I171 I
7_/
111~
I
i+
+
I
Y--l+
I
[Adjustment / Check]
Meaauring Point Measuring Equipment
Condition
Audio output
Audio level meter Record and
terminal
MP type tape
playback (SP)
I
InPut Signal/ Alignment Tape
I
Short-circuited at the external micro-
phone jack : No signal
I
! ADJ. Location I ADJ. / Check Value
I
1
Preparation:
● Stand-by switch: “STANDBY
● POWER switch: “CAMERA and “PLAYER”
Adjusting / Checking method:
1. Record then play back the recorded portion.
2. Confirm that (playback level in 4. Overall Level Check)
dBs - (playback level in this step) dBs is over 45 dB (JIS
A audio corrections).
.-
– 5-25 –
