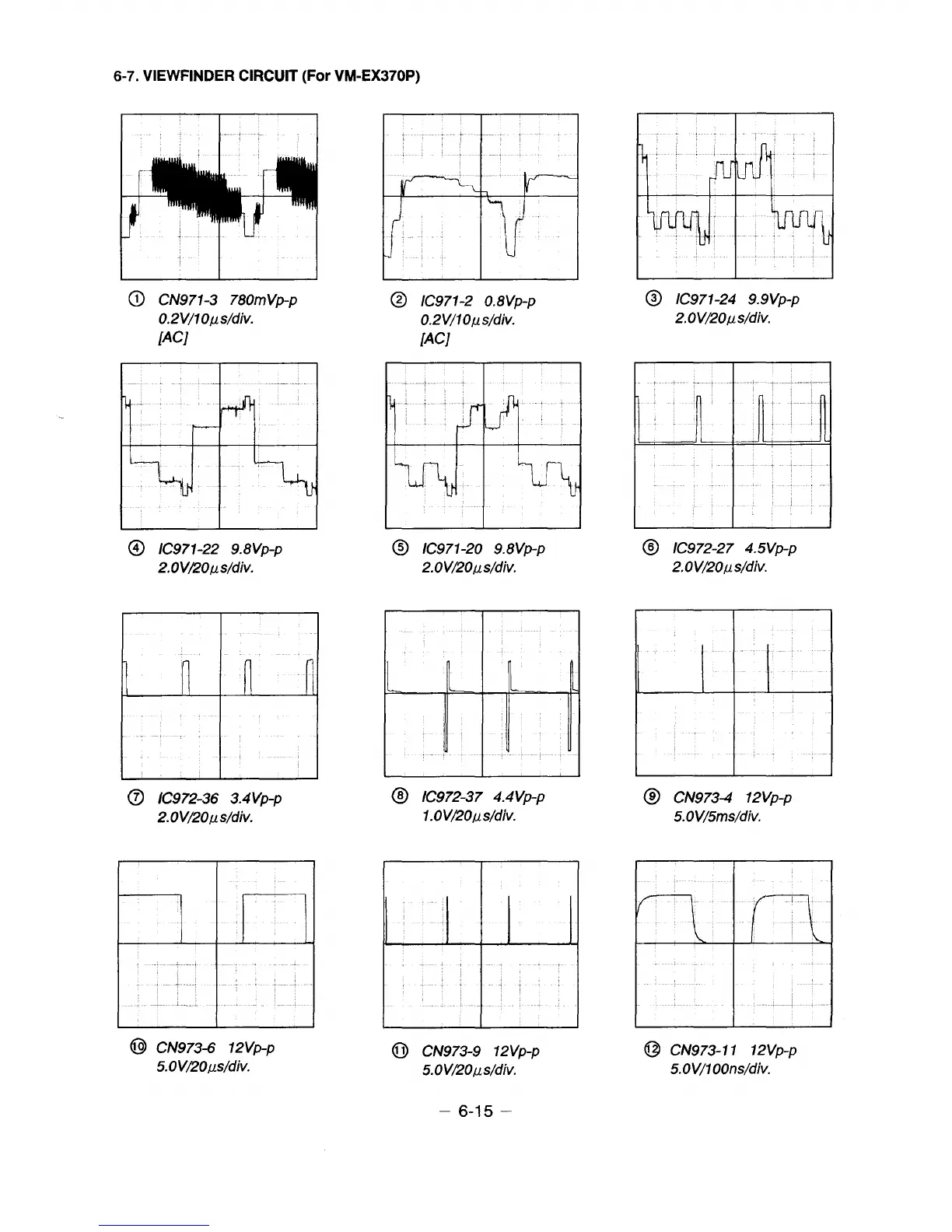

6-7. VIEWFINDER CIRCUIT (For VM-EX370P)
@) CN971-3 780mVp-p
0.2V/10@div.
[AC]
,.
@ IC971-22 9.8VPP
2.0V)20fis/div.
a IC972-36 3.4VP-P
2. OV/20ps/div.
@ CN973$ 12VPP
5.0 VZ20ps/div.
,,
::
@ IC971-2 0.8VPP
0.2V/10fis/div;
[AC]
.,
,,, .
\rj
@ IC971-20 9.8VPP
2. OV/20ps/div.
@ IC972-37 4.4VP-P
1.0V220ns/div.
I
@) CN973-9 12Vp-p
5.OV/20@div.
@ lc971-24 9.9Vpp
2. OV/20@div.
@ lc972-27 4.5Vpp
2.OV/20@div.
@ CN9734 12Vp-p
5.OV/5ms/div.
@ CN973-I 1 12Vp-p
5.OV/100ns/div.
– 6-15 –
