IN120 Mortise Lock

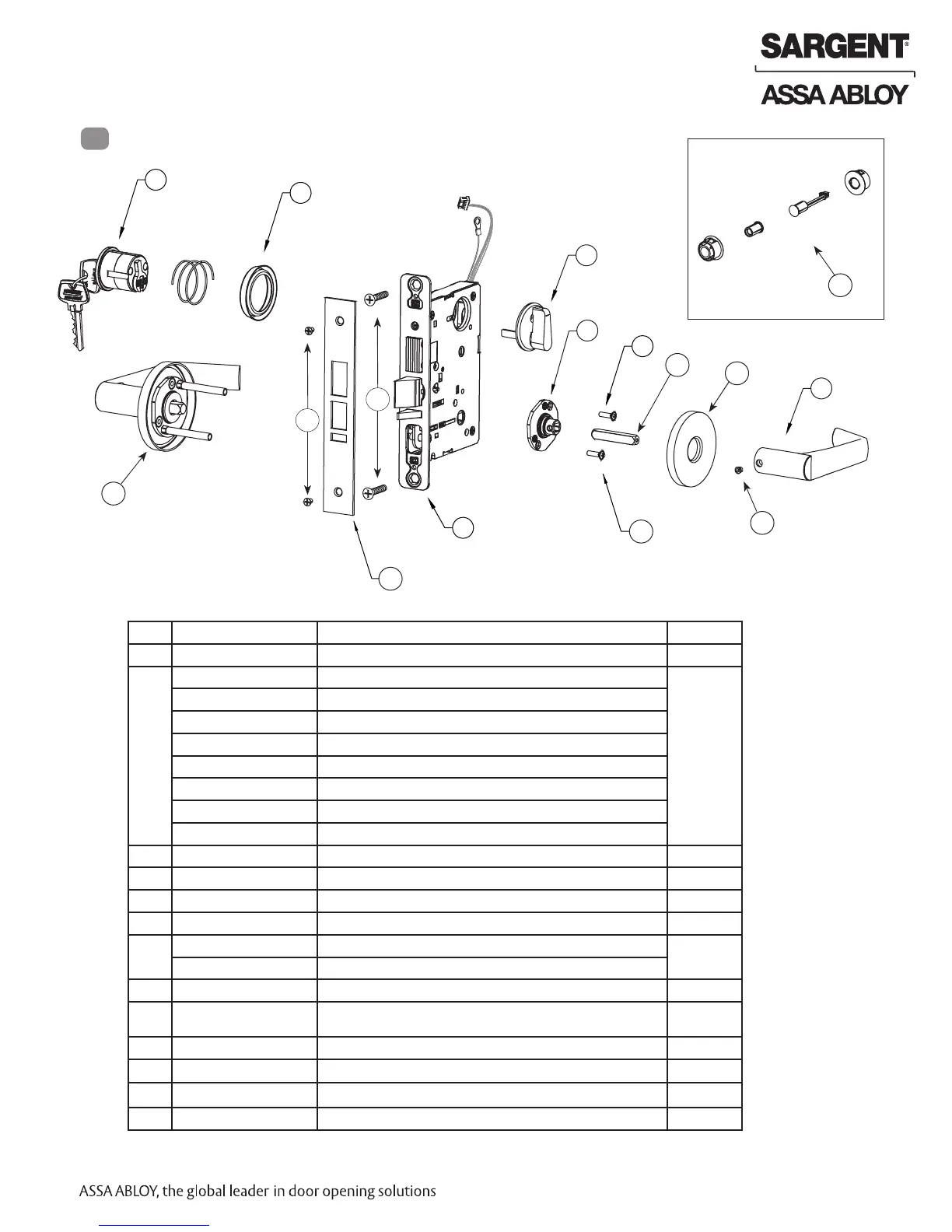

Parts Breakdown (Continued)
5
9
10
5
6
5
11
3
1
2
10
5
5
5
4
7
8
1 Consult Factory #41 Mortise cylinder 1
2 13-2131 97 Ring 1
3 IN-120-7976-hand-fin Lock body with deadbolt with cylinder 1
IN-120-7977-hand-fin Lock body with deadbolt without cylinder
IN-120-7978-hand-fin Lock body without deadbolt with cylinder
IN-120-7979-hand-fin Lock body without deadbolt without cylinder
IN-120-82276-hand-fin* Lock body with deadbolt with cylinder (not shown)
IN-120-82277-hand-fin* Lock body with deadbolt without cylinder (not shown)
IN-120-82278-hand-fin Lock body without deadbolt with cylinder (not shown)
IN-120-82279-hand-fin Lock body without deadbolt without cylinder (not shown)
4 77-4081 130W Turn lever 1
5 79-2162 Trim pack 1
6 Consult Factory Rose
7 Consult Factory Inside lever 1
8 79-0035 Without deadbolt 1
79-0036 With deadbolt (shown)
9 52-5373 Door Position Switch (DPS) pack 1
10 77-4236 Mortise screw pack - specify finish (includes: wood and metal lock
body screws, faceplate screws, and strike screws)
1
11 Consult Factory Outside trim 1
12 A8150 Field prep template (not shown) 1
13 4713 Door manufacturers template (not shown) 1
14 A8151 Instructions (this manual) 1
ITEM
PART NO/ORDER
STRING
DESCRIPTION
QTY
*Required for Escape Return functionality (a residential requirement in Canada)
